Maintenance
97

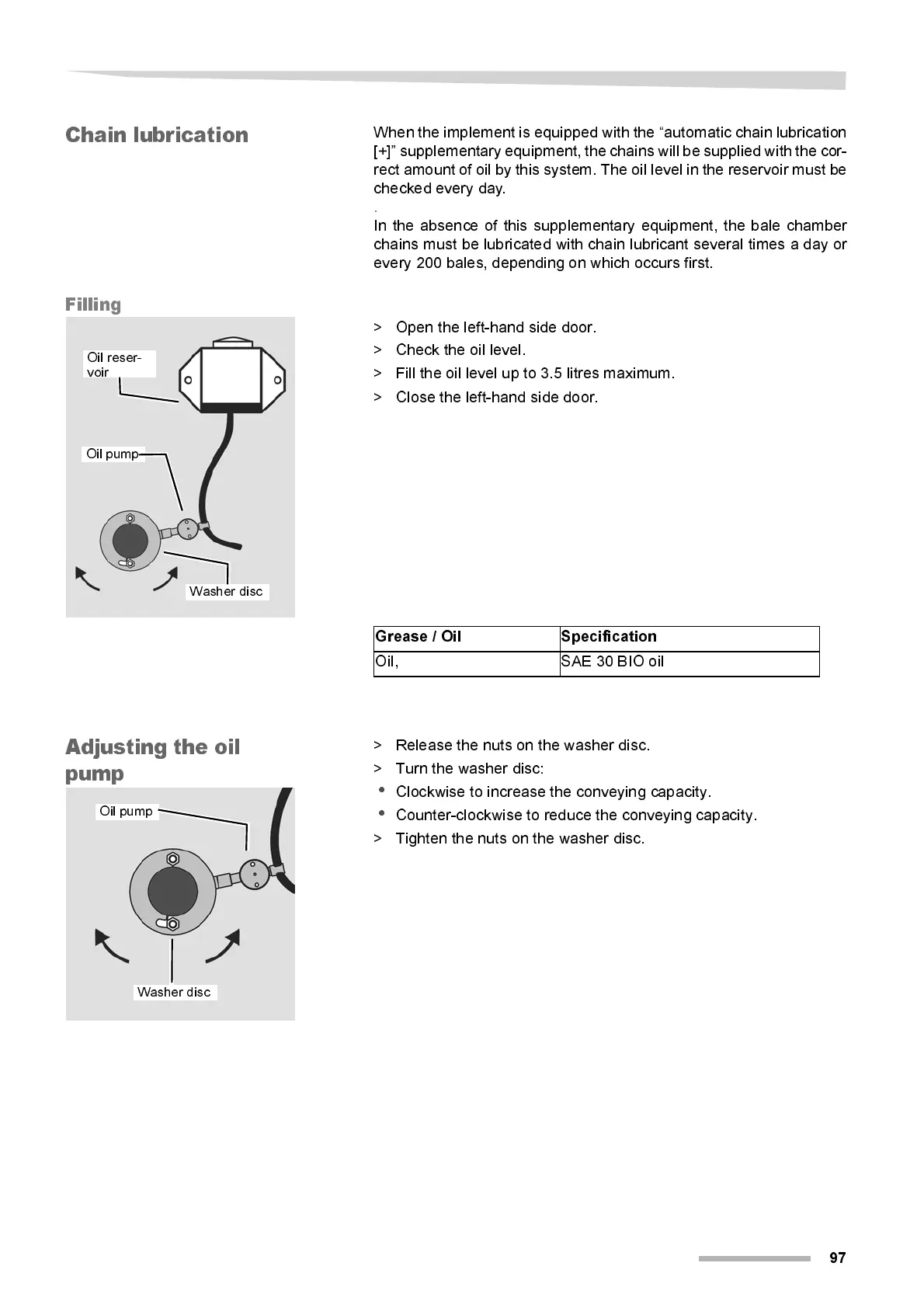

Chai n l ubri c ati on
When the implement is equipped with the “automatic chain lub ricatio n
[+]” supplementary equipment, the chains will be supplied with the cor-
rect amount of oil by this system. The oil level in the reservoir mus t be
checked every day.
.
In the absence of this supplementary equipment, the bale chamber
chains must be lubr icated w it h chain lubr icant sever al ti mes a day or
every 200 bales, depending on which occurs first.
Filling
> Open the left-hand side door.
> Check the oi l l evel.
> Fill the oil level up to 3.5 litres maximum.
> Close the left-hand side door.
Adjusting the oil
pump
> Release the nuts on the washer disc.
> Turn the washer di sc:
•
Clockwise to increase the conveying capacity.
•
Counter-clockwise to reduce the conveying capacity.
> Ti ght en the nuts on the washer disc.
Oil reser-
voir
Oil pump
Washer disc
Grease / Oil Specification
Oil, SAE 30 BIO oil
Oil pump
Washer disc
