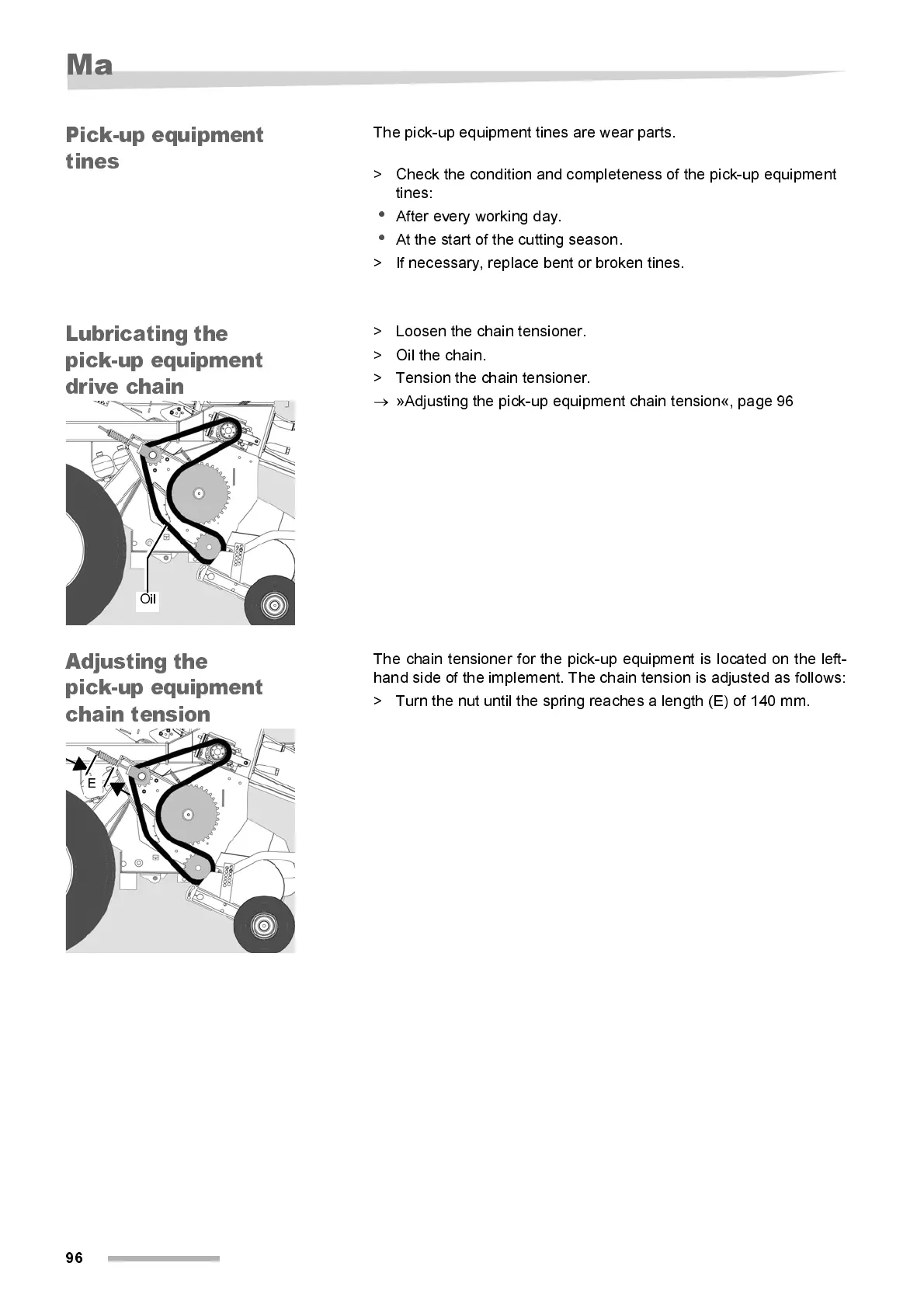

Maintenance
Pic k- up eq ui pm e nt
tines
The pick-up equipment tines are wear parts.
> Check the condition and completeness of the pick-up equipment
tines:
•
After every working day.
•
At the start of the cutting season.
> If necessary, replace bent or broken tines.
Lubri cati ng the
pick -u p eq ui pm en t
drive chain
> Loosen the chain tensioner.
> Oil the chain.
> Tensi on the chain tensioner.
→
»Adjusting the pick-up equipment chain tension«, page 96
Adjusting the
pick -u p eq ui pm en t
chai n tens io n
The chain tensioner for the pick-up equipment is located on the left-
hand side of the implement. The chain tension is adjusted as follows:
> Turn the nut until the spring reaches a length (E) of 140 mm.
Oil
E
