VIDEOJET 8520 - Page 165

9-12 Terminals Rev AB
Videojet 8520 Operator Manual
Plug-and-Socket Connector
A 12-pole plug-and-socket connector is used for the shaft encoder
connection.

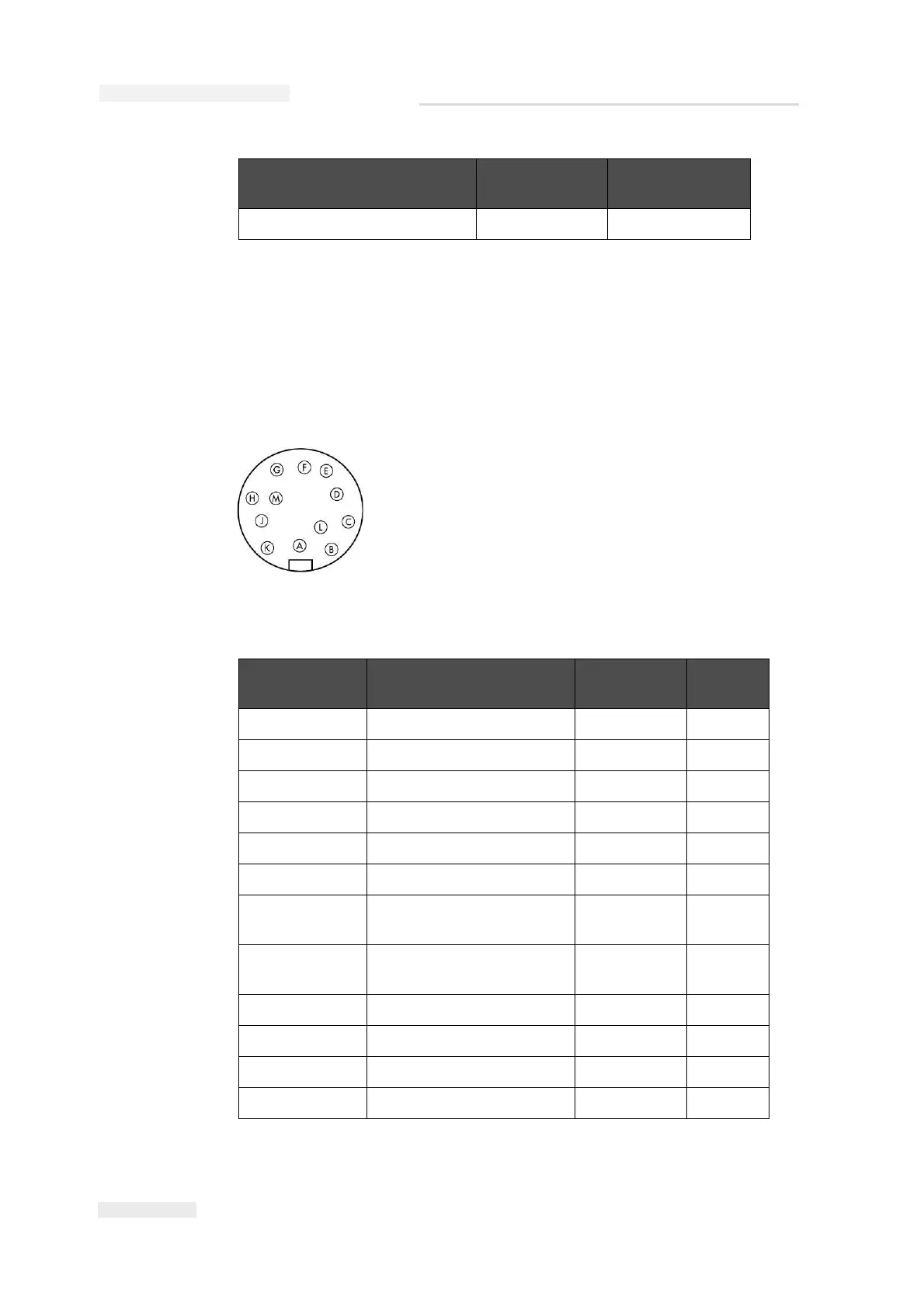

Figure 9-11 on page 9-12 shows the top view of the solder side of the
plug.The cable connector used: Cable tie, series 423, type 99-5629-15-12.
Table 9-6 lists the connector pin functions for shaft encoder socket.
Plastic, smooth 63,66 mm 12.500
Pin. No. on the
Videojet 8520
Function Values I/O
A-
B GND 0 V DC -> O
C Output signal A <- I
D GND (jumpered in plug)
E Output signal A, inverted <- I
F
GV
cc
+5 V DC
max. 0.5 A
-> O
H Output signal B (90° out of
phase)
<- I
J GND (jumpered in plug)
K Output signal B, inverted <- I
L
M
Table 9-6: Pin Functions
Drive disk model Diameter Standard values
Pulses/m
Table 9-5: Values for Pulses/Meters (Continued)
Figure 9-11: Top View
