Shaft Encoder
The shaft encoder is used to measure the product speed which is fed back
to the controller.
Measuring Wheel for Shaft Encoder
The shaft encoder measuring wheels for different conveyor belt surfaces
are shown in Figure 3-15.
Resilient Shaft Encoder Mount
The resilient mount ensures that the shaft encoder is perfectly supported.

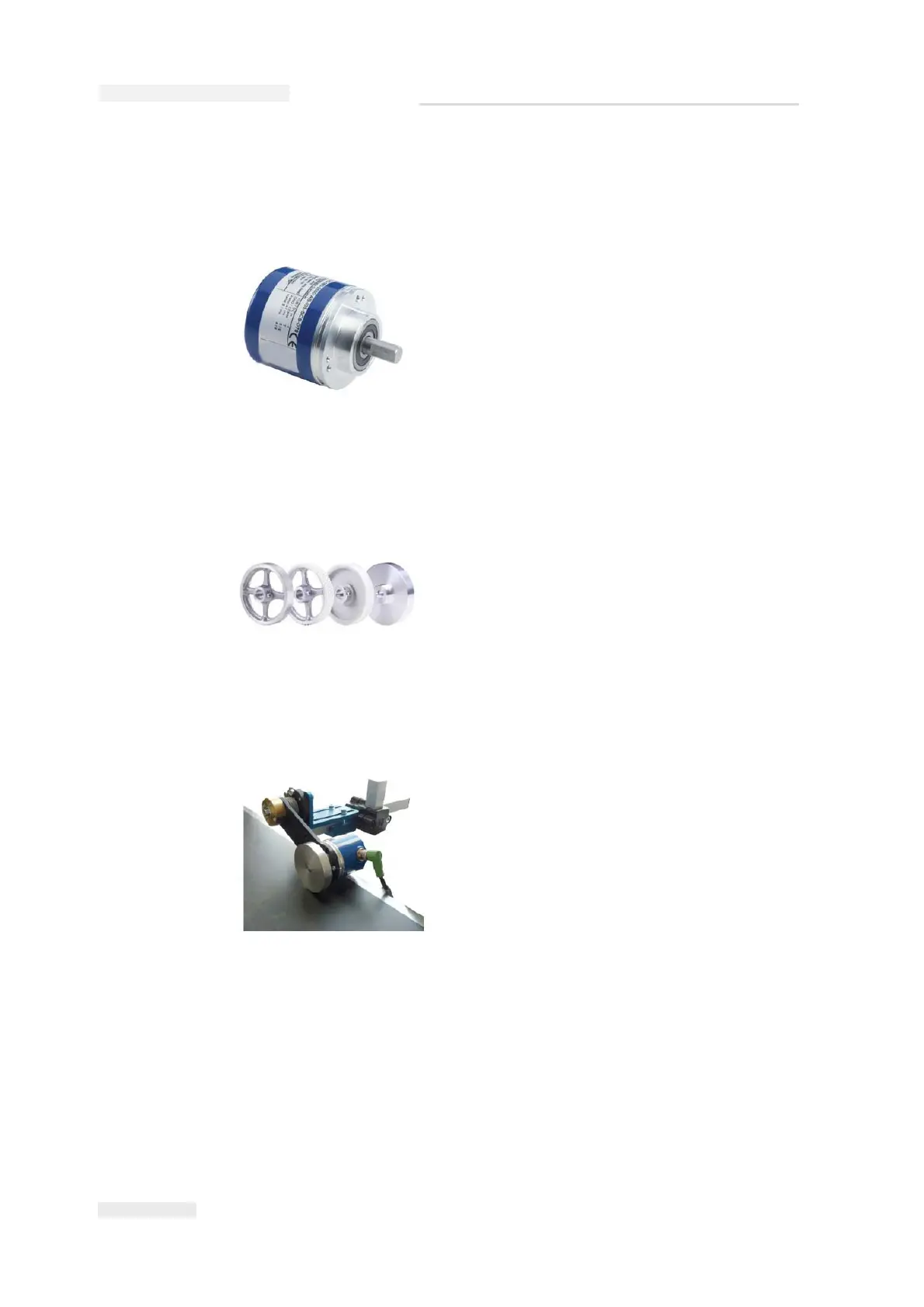

Figure 3-14: Shaft encoder
Figure 3-15: Measuring Wheels for the Shaft Encoder
Figure 3-16: Resilient Shaft Encoder Mount
