Rev AB Integral Parts and Accessories 3-9
Videojet 8520 Operator Manual
Shaft Encoder Cable
The shaft encoder cable is the connector cable between the shaft encoder
and controller as shown in Figure 3-17.
Warning Beacon
The warning beacon is mounted separately and indicates the system faults
and the ready for printing state (green). The warning beacon is operated
via the 24 V interface.
Serial Interface Cable and Ethernet Cable
The serial interface cable and the ethernet data cable are used for data
transmission between PC and Videojet 8520 via the serial or the ethernet
data interface.
USB Connector
The printer also has a USB connector, which is used for data transmission
to the Videojet 8520 using USB Stick.

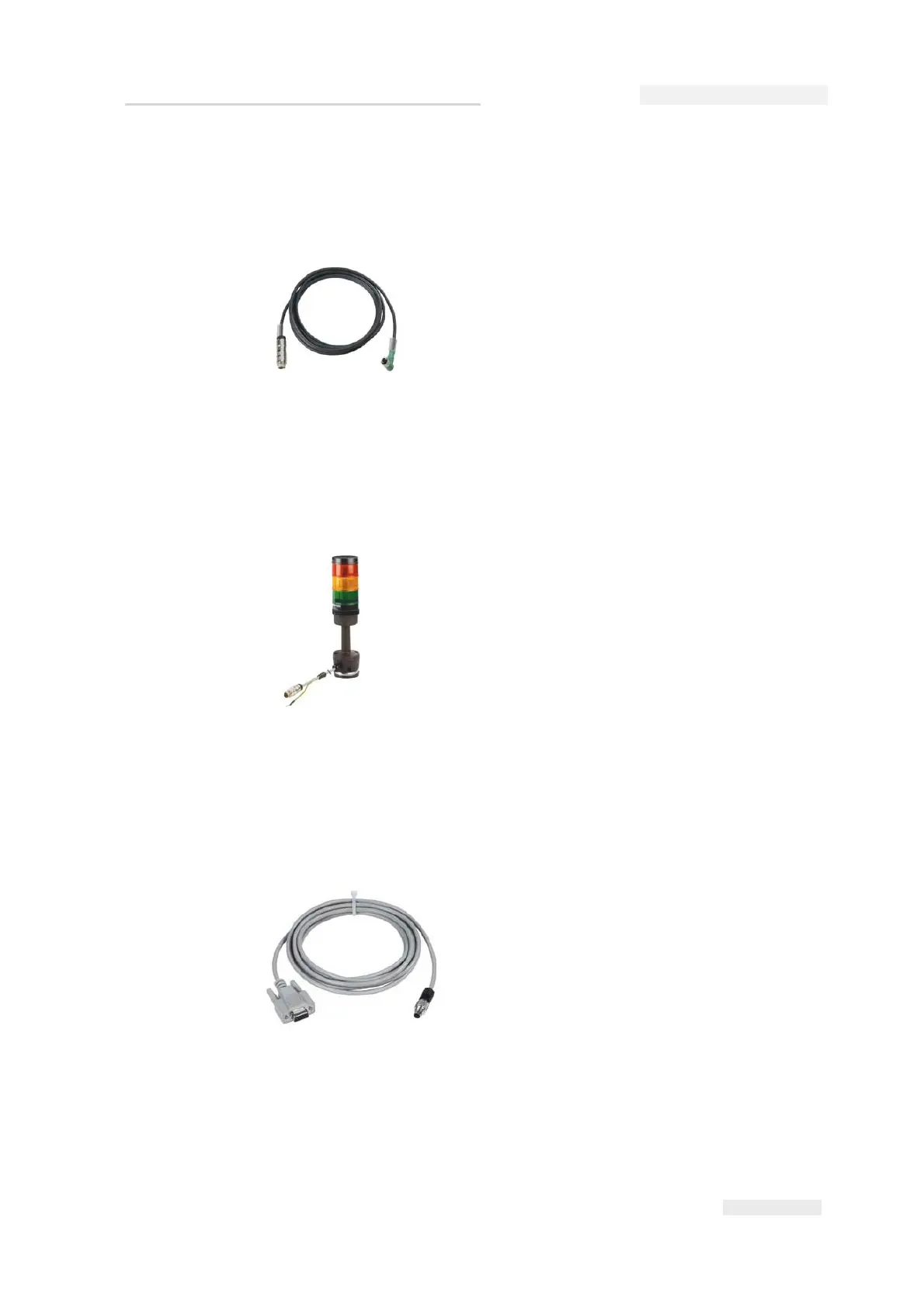

Figure 3-17: Shaft Encoder Cable
Figure 3-18: Warning Beacon
Figure 3-19: Serial Interface Cable
