Chapter 3: System Coordinates
3.1.7 MLC Orientation

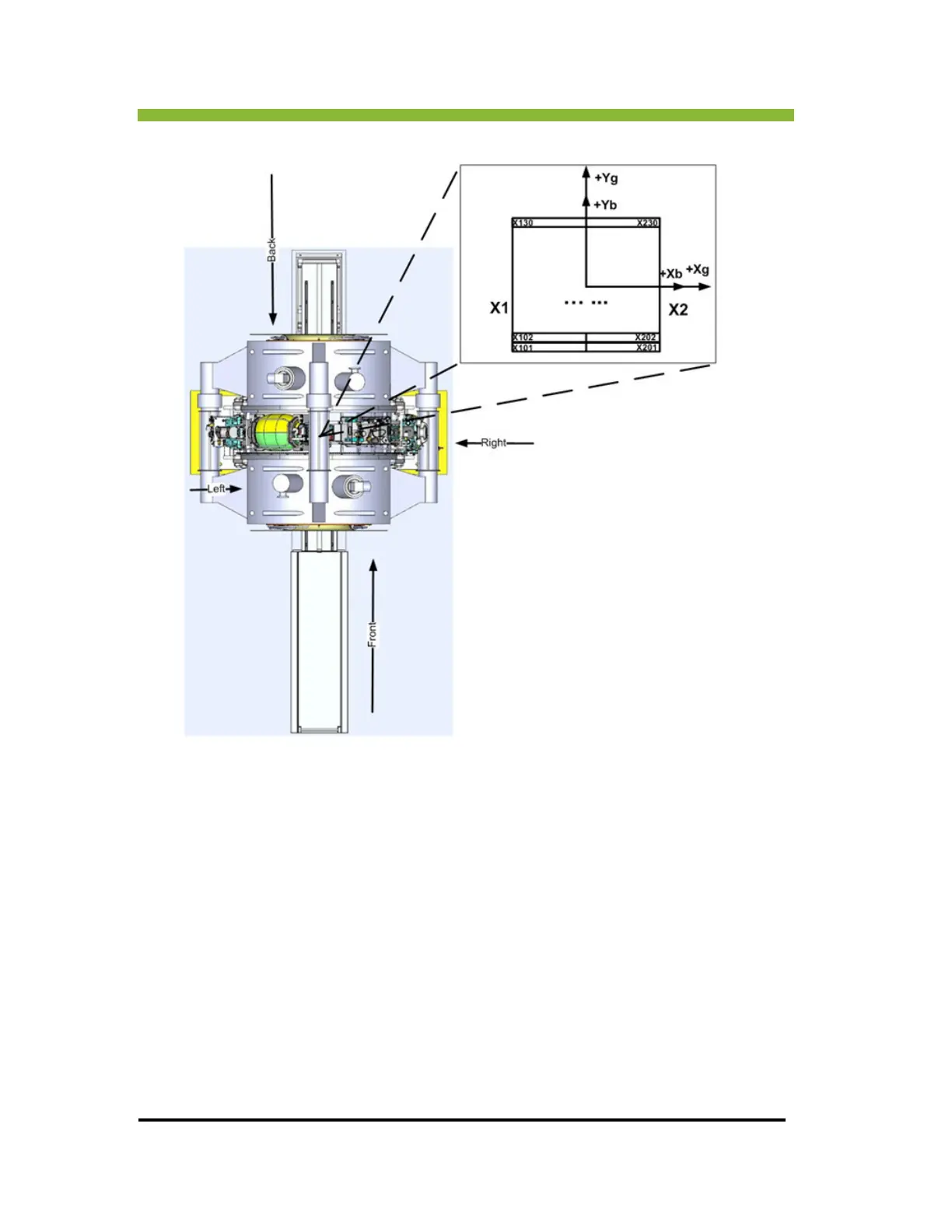

The figure below shows the MLC and Beam limiting coordinate system for gantry angles of 0,
90, 180, and 270. “ g” is only indicated for the 90°.
