Vivotek NR9581 - Buttons Configuration

VIVOTEK - A Leading Provider of Multimedia Communication Solutions
214 - User's Manual
Buttons Conguration

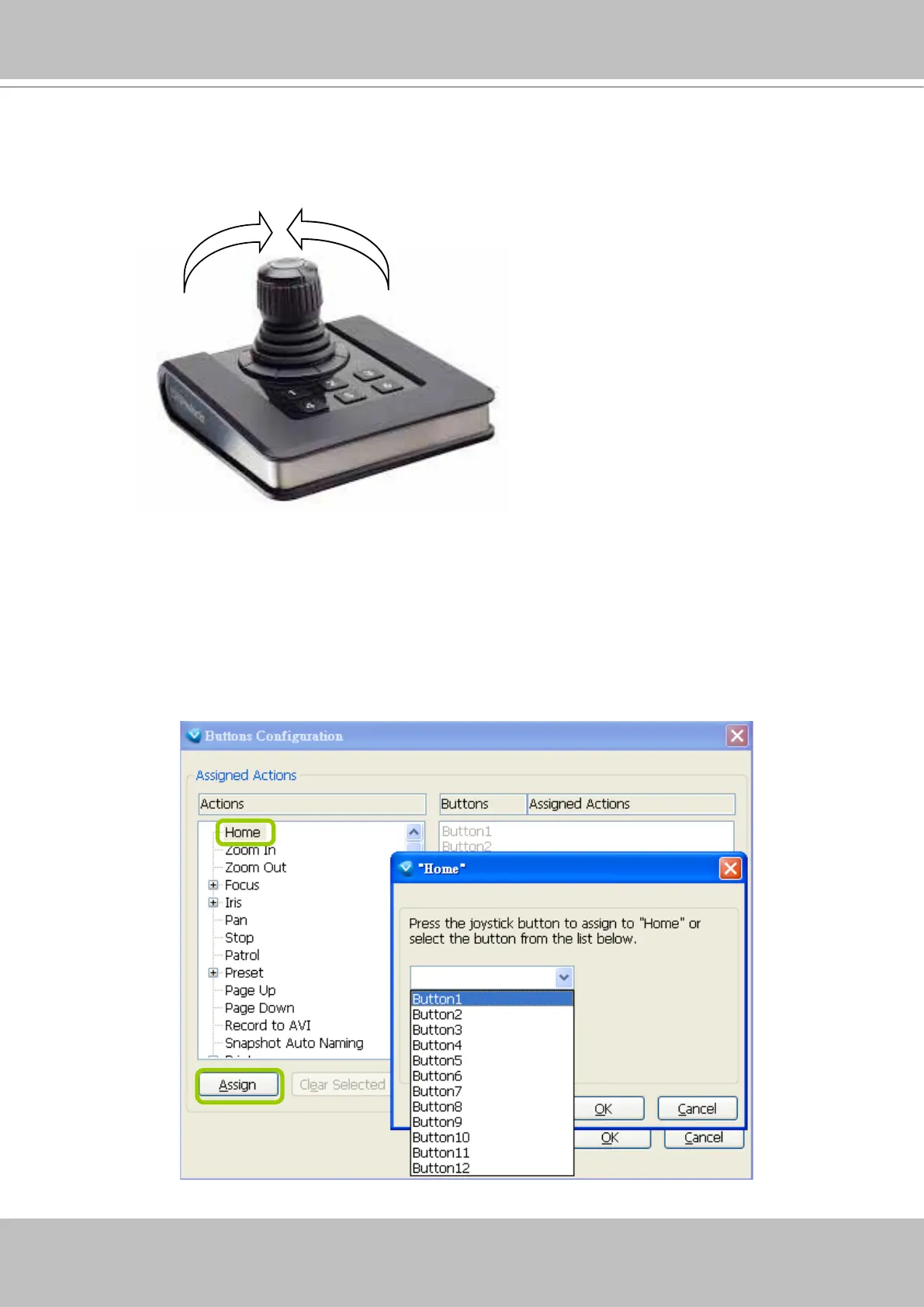

In Button Conguration window, the left column shows the actions you can assign, and the right column
shows the functional buttons and assigned actions. The number of buttons may differ from different
joysticks.
Please follow the steps below to congure your joystick buttons:
a. Choosing one of the actions and click Assign will pop up a dialog. Then you can assign this action to
a button by pressing the joystick button or select it from the drop-down list.
For example: Assign Home (move to home position) to Button 1.
Reverse direction of zoom control
Due to different designs in joystick zoom wheel, you can select this checkbox to reverse the zoom in/out
directions.
