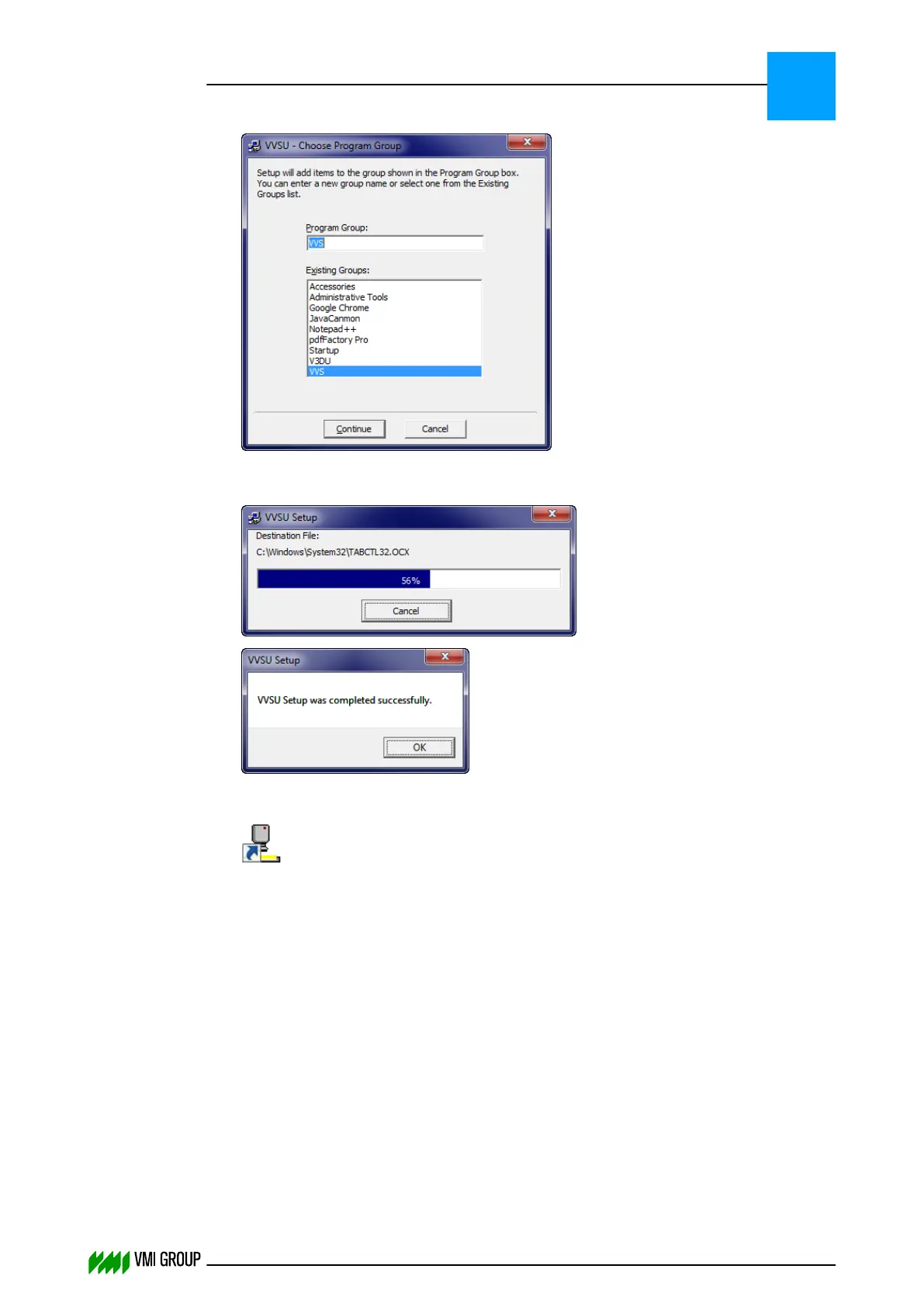

Check the program group and click CONTINUE.

The VVSU setup starts.

Click OK.

8. If necessary, create a desktop shortcut to VVSU.

INSTALLATION AND CONFIGURATION

Installation

THINKING FORWARD

VMI Vision System VVS (OL82) VVSX 13.0.12.0, VVSU 3.0.6 / 4 / 2016-07-11 / pd#175592

3-4
