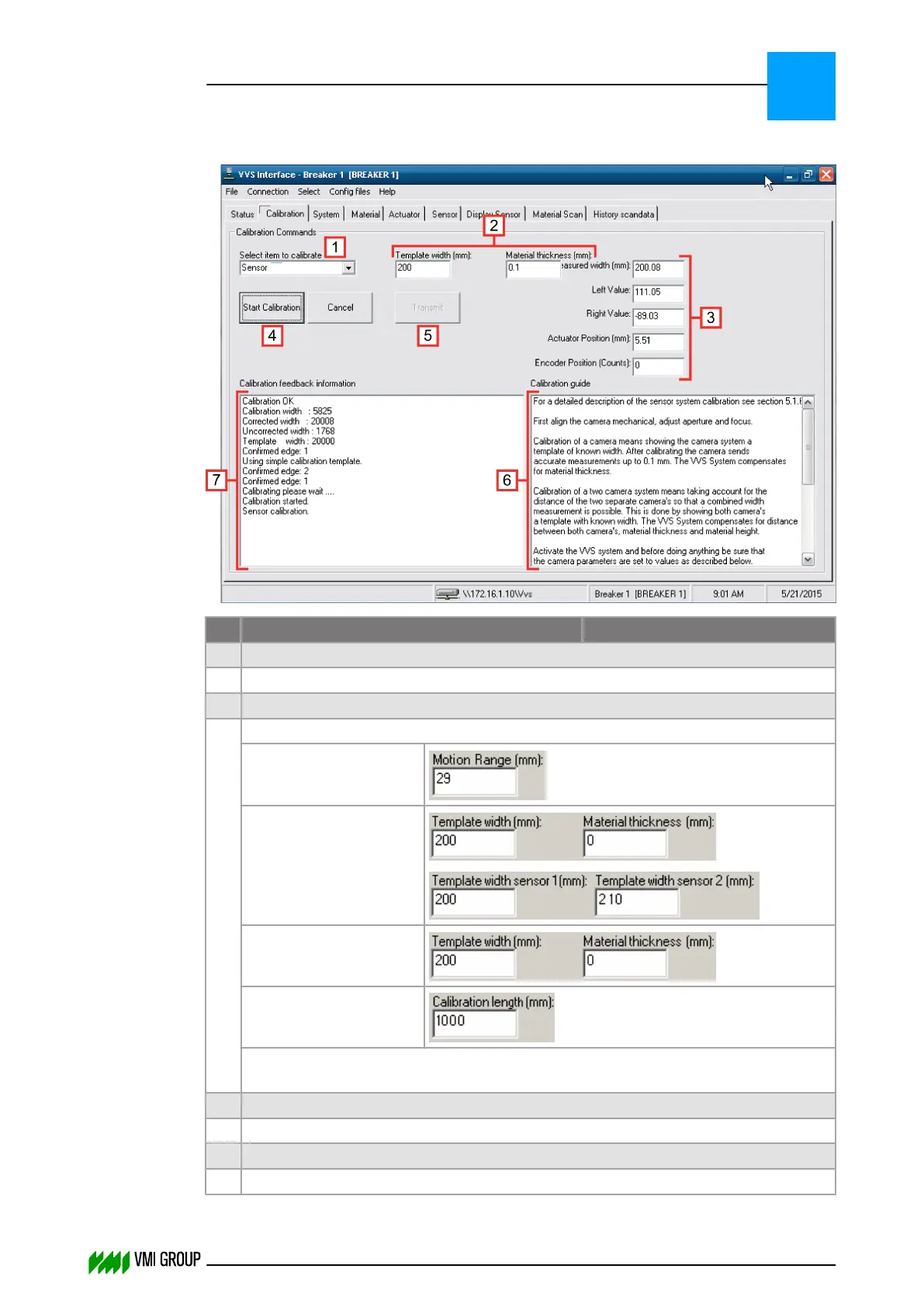

7.3.4.2 Calibration screen (for advanced users only)
No. Legend Description
1 Select item to calibrate
Click the drop-down button to select the item to calibrate.
2 Calibration data
Depending on the selected item to calibrate, calibration data fields must be filled in.
Actuator
Sensor
(Breaker)
(Carcass)
Sensor system
Encoder
A right-click on the calibration data fields opens a shortcut menu with copy/paste
options.
3 Actual values
Shows the actual values of the item to be calibrated.
4 Start Calibration
Click to start the calibration.
