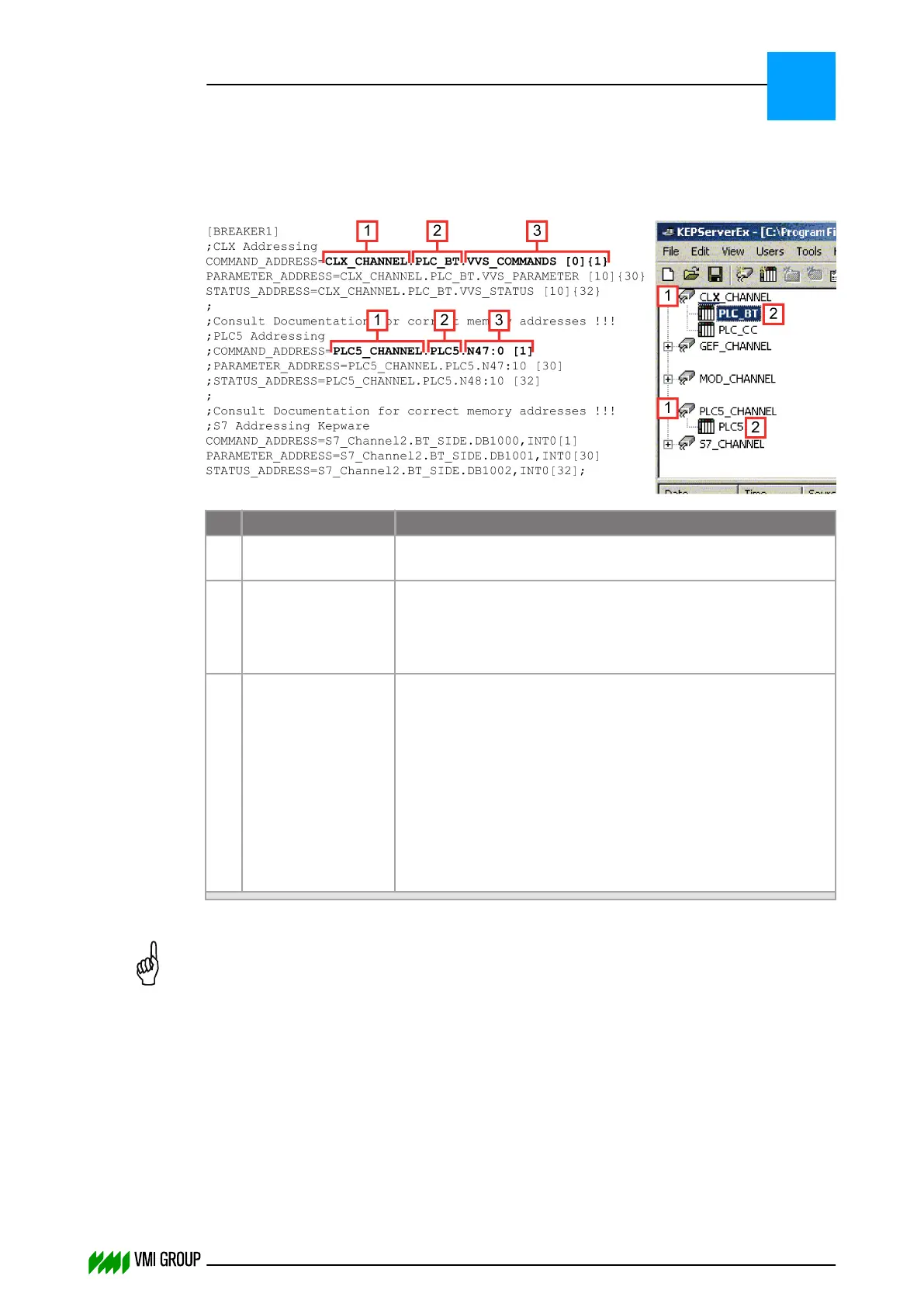

3.2.3.2 OPC wrapper address definition
In the following example, CLX addressing is selected for Breaker 1.
The PLC5 addressing is set correctly, but made inactive by the semicolon (;).
No. Legend Description
1 Channel The channel name must be equal to the names configured in
the Kepware configuration file (vmi.opf).
2 Device The device name must be equal to the names configured in
the Kepware configuration file (vmi.opf).
In the example, the device name for Breaker 1 until 4 is
PLC_BT and for the Carcass components it is PLC_CC.
3 Tag / Register Some PLCs work with a tag for the address (CLX) and some
with a register name(PLC5).
For example, tag for CLX = VVS_COMMAND, register name
for PLC5 = N47.
The start address can be included in the address. Sometimes
between square brackets [], sometimes regular brackets ().
At the end, the array size send to each address is defined
between brackets {}.
For the exact notation system, refer to the Kepware PLC
driver description
NOTICE
For more information on commands, parameters, and status, refer to Parameters on
page 6
‑
1.
3.2.3.3 Breaker measurement options
Optionally, at the end of the wrapper file (after the mandatory product sections), breaker
measurement addressing can be defined. This allows sending the complete profile of each
breaker to the PLC.
Each measurement is defined in a section starting with a title between square brackets ([]).
The measurements can be in random order. It is recommended to keep a logical order and
to group the measurements for one component by a comment line.
INSTALLATION AND CONFIGURATION
Configuration
3
THINKING FORWARD
VMI Vision System VVS (OL82) VVSX 13.0.12.0, VVSU 3.0.6 / 4 / 2016-07-11 / pd#175592
3-8
