7.

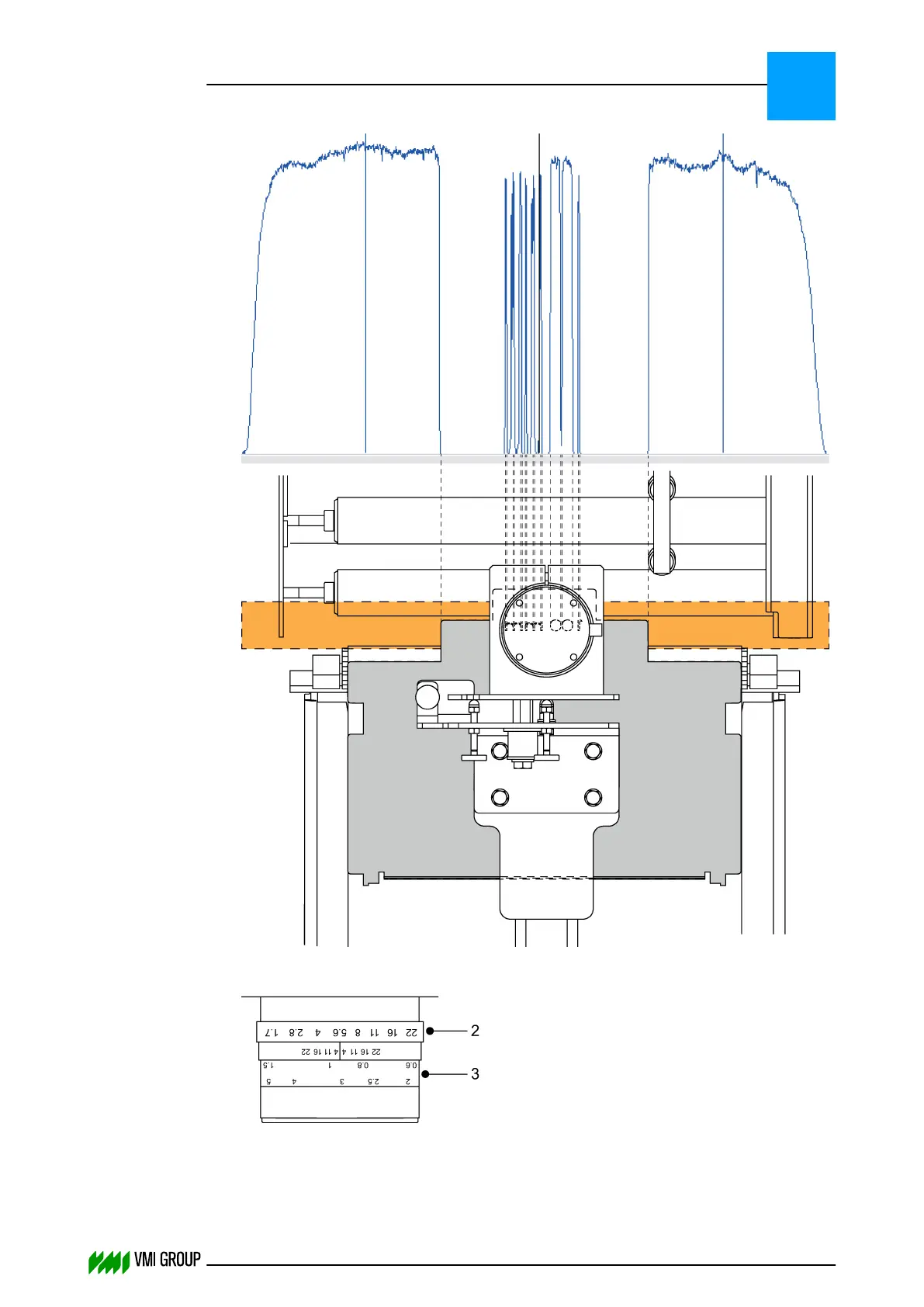

Place the calibration template on the conveyor belt, and make sure the text '100 mm'
is shown as narrow spikes in the camera image (as illustrated).
8.
Turn the focus ring [3] until the narrow spikes almost have the same intensity as the
baseline in the DISPLAY SENSOR screen.
