Vodavi Starplus DHS - DHS-ECPU Board

3-20 DHS-E Installation
3. Installing 3 x 8 Modules

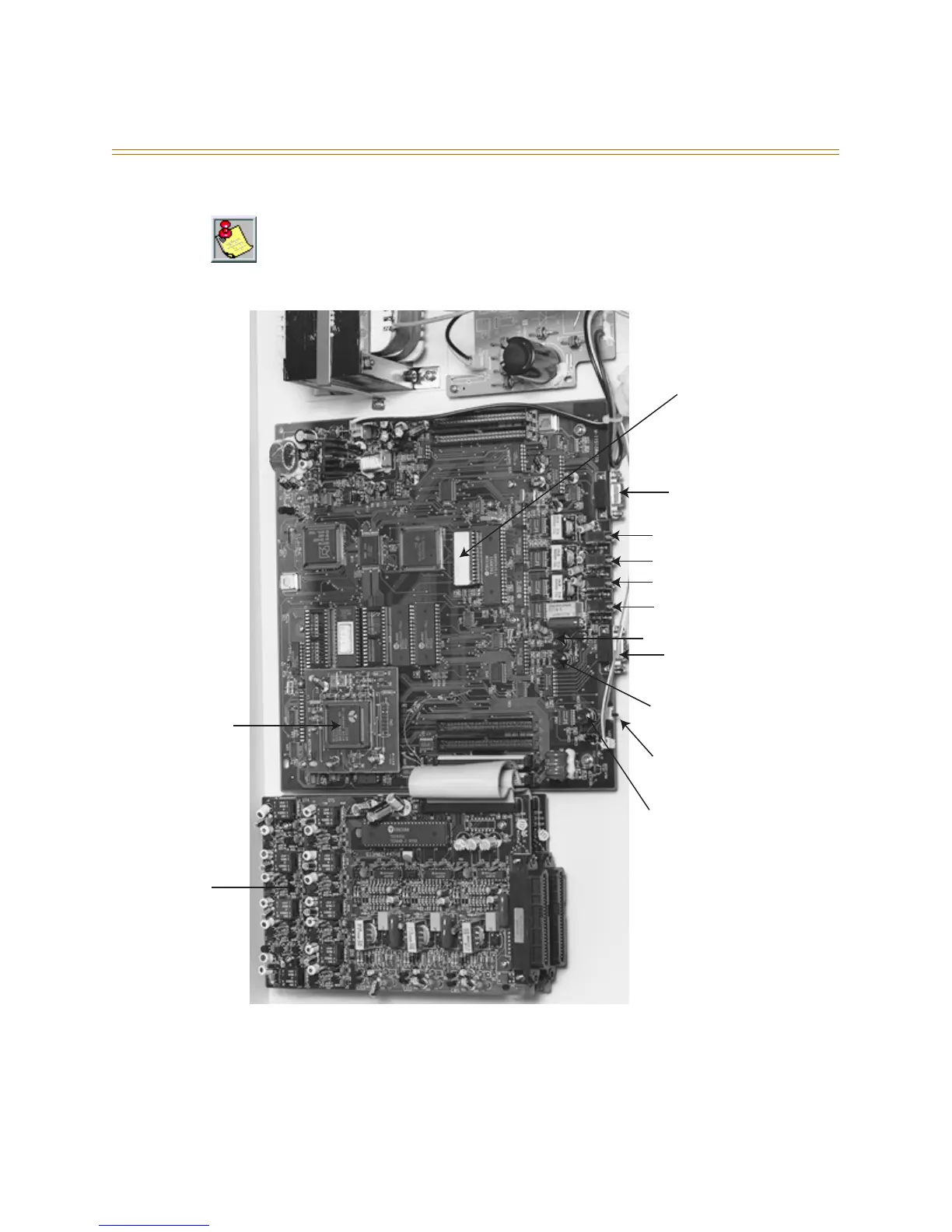

Figure 3-4:
DHS-E
CPU Board
The DHS-E comes with two pre-installed 3 x 8 modules. Each additional 3 x 8 module
requires one 25-pair amphenol type (male) ended station cable to extend the interface
ports to the MDF. The station cable is plugged into the female amphenol connector at
the base (orientation assumes a properly mounted KSU) of the 3 x 8 module.
The 6-Port CO Module CANNOT be used in the
DHS-E
system.
Modem
3 x 8
Module
EXP Potentiometer
SW1
Initialize
MOH Potentiometer
SMDR
BGM Potentiometer
Loud Bell
Page
MOH
BGM
PC
Program/ICLID
System Software
