2-36 DHS Installation

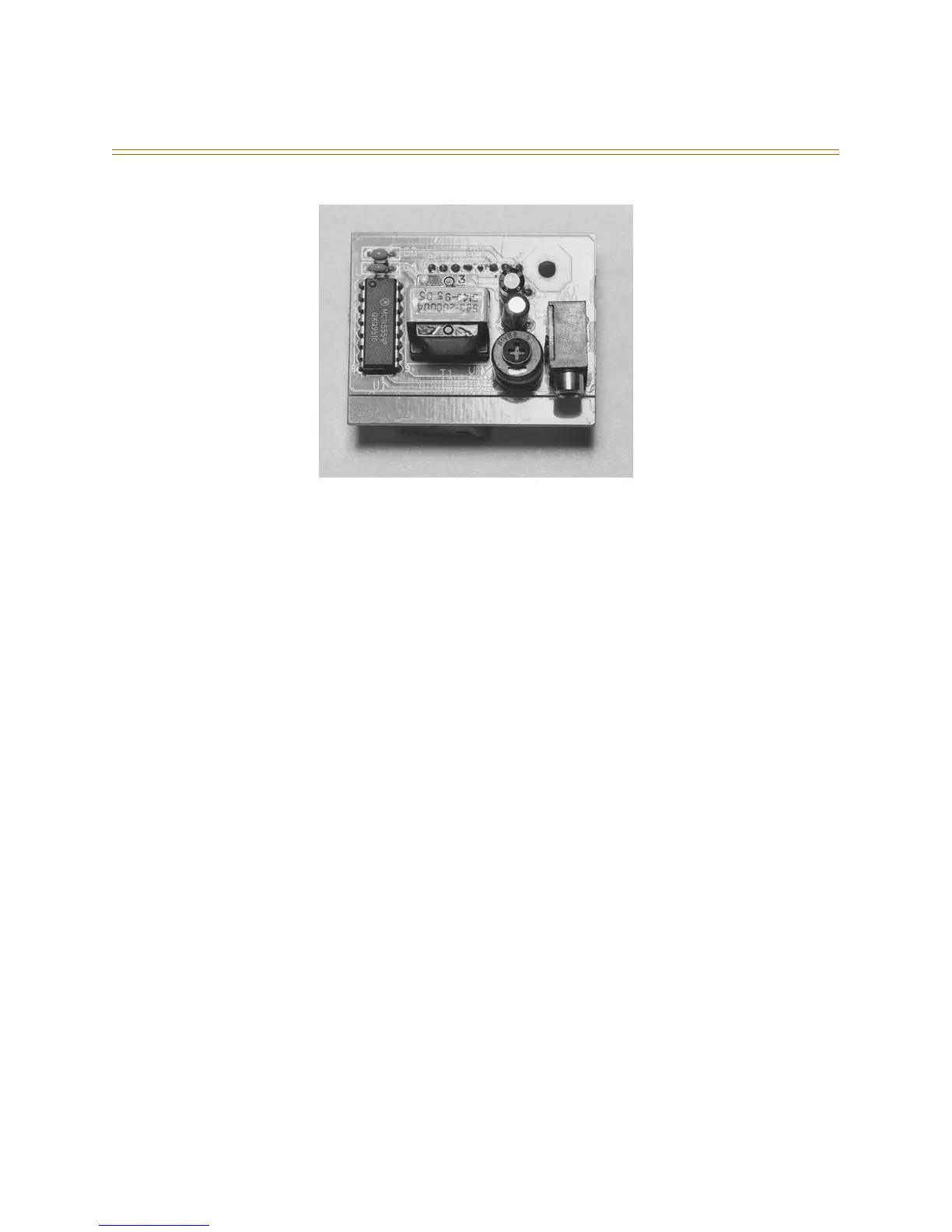

Figure 2-18: Standard MOH/BGM Module
6. Terminating Connections
3 x 8 Module(s)
1. The CO line connections (as well as station connections) are made to the 3 x 8
Standard Module and Expansion Module(s) via the 25-pair connector located along
the bottom edge of the installed module. Refer to Figure 2-19: Wiring Designations for
3 x 8 Modules.
2. Once the 25-pair cable is terminated on an industry standard 66M1-50 block, cross-
connect (jumper wire) should be used to extend the CO line pair from the terminal
block to the Telco Demarcation block.
