7. Use a clean, damp cloth and wipe the interior of the
air cleaner canister clean. Use special care to
clean both the inside and outside surfaces of the
outlet tube.
IMPORTANT: Any dust left on the inside of the out-
let tube will go into the engine and cause wear.
8. Check the outside surface of the outlet tube for
smoothness and cleanness (this is the sealing sur-
face).
9. Insert and seat the safety filter and Radialseal™ el-
ement carefully into the canister, applying pressure
at the outer rim of the filter; not at the flexible cen-
ter. Make sure the filter element is completely in
place before installing the cover.
IMPORTANT: DO NOT use the cover latches to
force the filter into the canister -- the cover should fit
on with no extra force.
NOTE: DO NOT use petroleum based lubricants
on the sealing surfaces of the filter; use talcum pow-
der or dry silicone lubricants if required for filter in-
stallation.

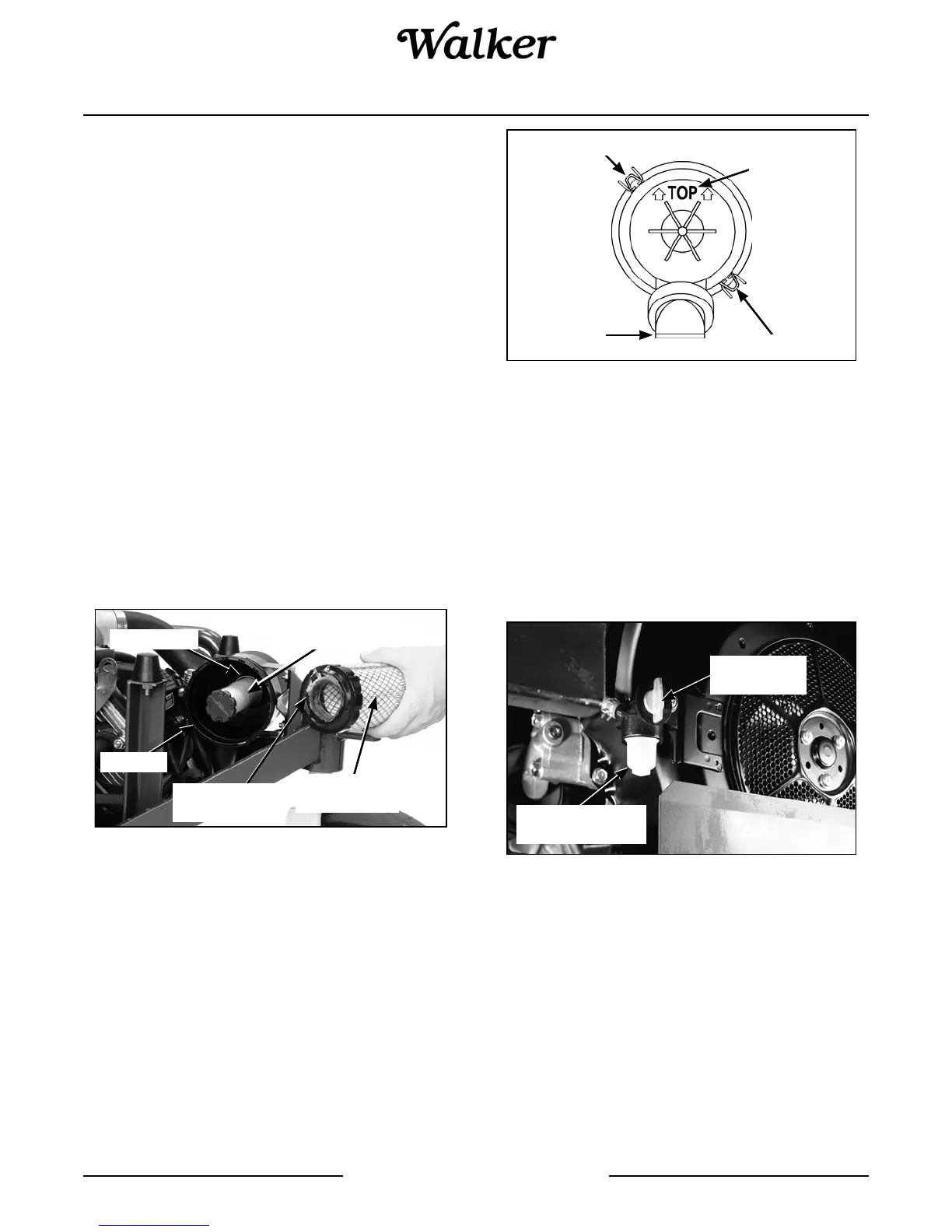

Air Filter Element Replacement
10. Install the cover with the word “TOP” properly ori-
ented to the top of the canister. Give the cover a
slight twist as it reaches the canister to make sure
the tab inside the cover goes into a slot, otherwise
the cover will not fit properly. Make sure both the
top and bottom cover latches are securing the cov-
er in place.
Proper Orientation of Air Cleaner Cover
11. Check the air intake hose for cuts, nicks, cracks,
etc., and the hose clamps for tightness.
12. Reset the air restriction indicator (press button on
the end of the indicator).
Fuel Filter - Model MS
Clean and inspect the fuel filter screen after every 50
hours of service. Replace if damaged. Service the fuel
filter as follows:
Fuel Filter and Fuel Shut-off Valve Location
IMPORTANT: Service the fuel filter screen only in a
clean area where the fuel filter components will not be
contaminated by any dust and dirt.
Radial Sealing
Surface
Radialseal™
Filter Element
Outlet Tube
Canister
Safety Filter
Cover Latch
Vacuator™
Valve
Cover Latch
Orient to Top
of Canister
Fuel Shut-Off
Valve
Fuel Filter and
Sediment Bowl
To Next Page
