WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
b. Slide belt off pulleys, then release the idler.
Hydrostatic Ground Drive Belt - Model MC, MT, MTL
1. To remove the hydrostatic ground drive belt:
a. Raise the spring-loaded belt tightener arm
and idler pulley to relax belt.
Hydrostatic
Ground Drive Belt
Idler Pulley
Belt Tightener Arm
Jackshaft
Transmission
Drive Pulley
Spring
Idler Pulley
Belt Tightener Arm
Hydrostatic
Ground Drive Belt
Spring

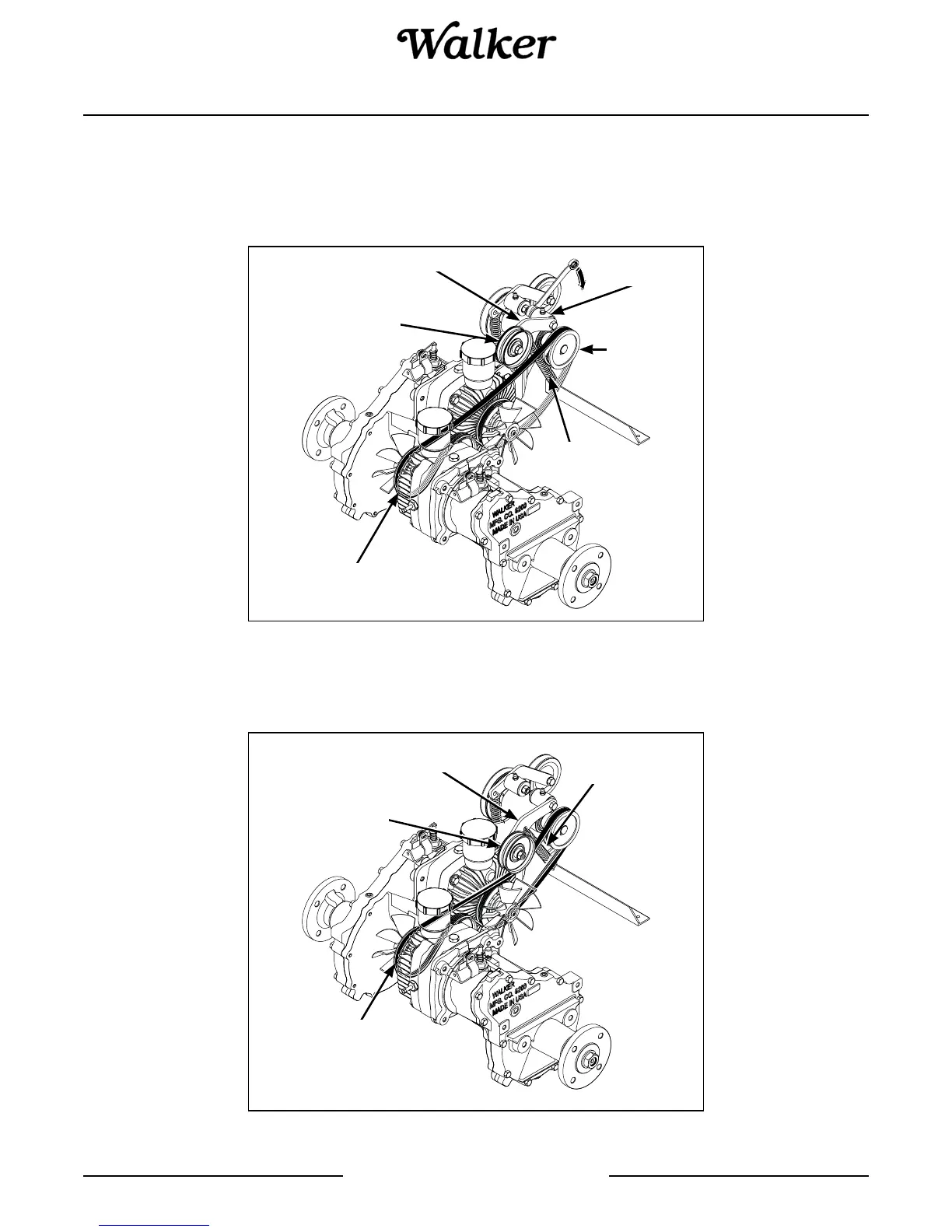

Hydrostatic Ground Drive Belt Assembly (Engaged)
2. Reverse the procedure to install the hydrostatic
ground drive belt.
Hydrostatic Ground Drive Belt Assembly (Disengaged)
