WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
13
12
9
7
6
11
2
12
3
5
14
1
4
10
3
8
12
075

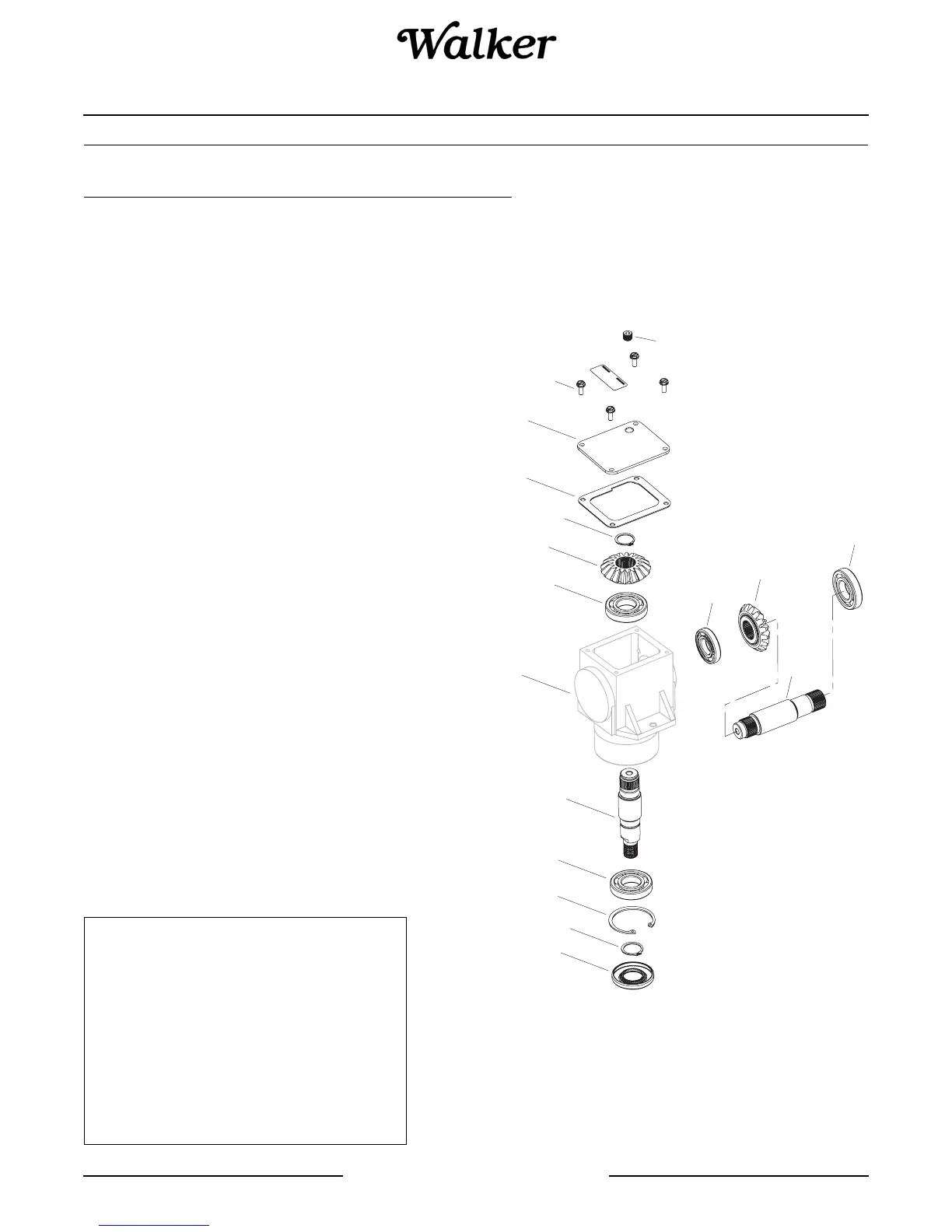

ALUMINUM PEERLESS GEARBOX 1000-054A (WALKER P/N 5052-1)
1 P018 772067 Cover, LH 1
2 N/A 770092A Right Angle Drive Housing 1
3 P003 778101 Miter Gear (17 teeth-steel) 2
4 P008 792025 Screw, RD/HD Self-Tap 4
5 P032 788018 Snap Ring, Gear Retainer 1
6 P028 788019 Snap Ring 1
7 P016 792119 Snap Ring 1
8 P011 776041A Input Shaft 1
9 P030 776261 Output Shaft (4-1/2) 1
10 P041 28534 Plug, Cover 1
11 P001 471730 Seal, Oil (Federal-Mogle) 1
12 P024 780034 Ball Bearing 3
13 P019 780024 Ball Bearing 1
14 P004 788028 Gasket Cover 1
WALKER PEERLESS
ITEM PART PART DESCRIPTION NO.
NO. NO. NO. REQ’D
This Gearbox is used in the following applications:
(RH and LH indicate view from operator seat)
DGHS36 RH Gearbox
DGHS36 LH Gearbox
DSD36 LH Gearbox
DGHS42 RH Gearbox
DGHS42 LH Gearbox
DSD42 LH Gearbox
DML42 LH Gearbox
DGHS48 RH Gearbox
DGHS48 LH Gearbox
DSD54 LH Gearbox
