Walker MT Detailed Instructions

Page: 4-17
WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
Jackshaft Drive Belt - Model MD
1. To remove the jackshaft drive belt:
a. Relax the belt by releasing spring tension
from the jackshaft drive idler arm using the
cold start lever.
Cold Start Lever
(Released)
Spring Tension
(Released)
Engine Pulley
Ground Drive
Idler Pulley (Disengaged)
Jackshaft
Pulley
Jackshaft
Drive Belt
Idler Arm
Release
Engine Pulley
Ground Drive
Idler Pulley (Engaged)
Jackshaft
Pulley
Jackshaft
Drive Belt
Spring Tension
(Engaged)
Cold Start Lever
(Engaged)
Idler Arm
Release

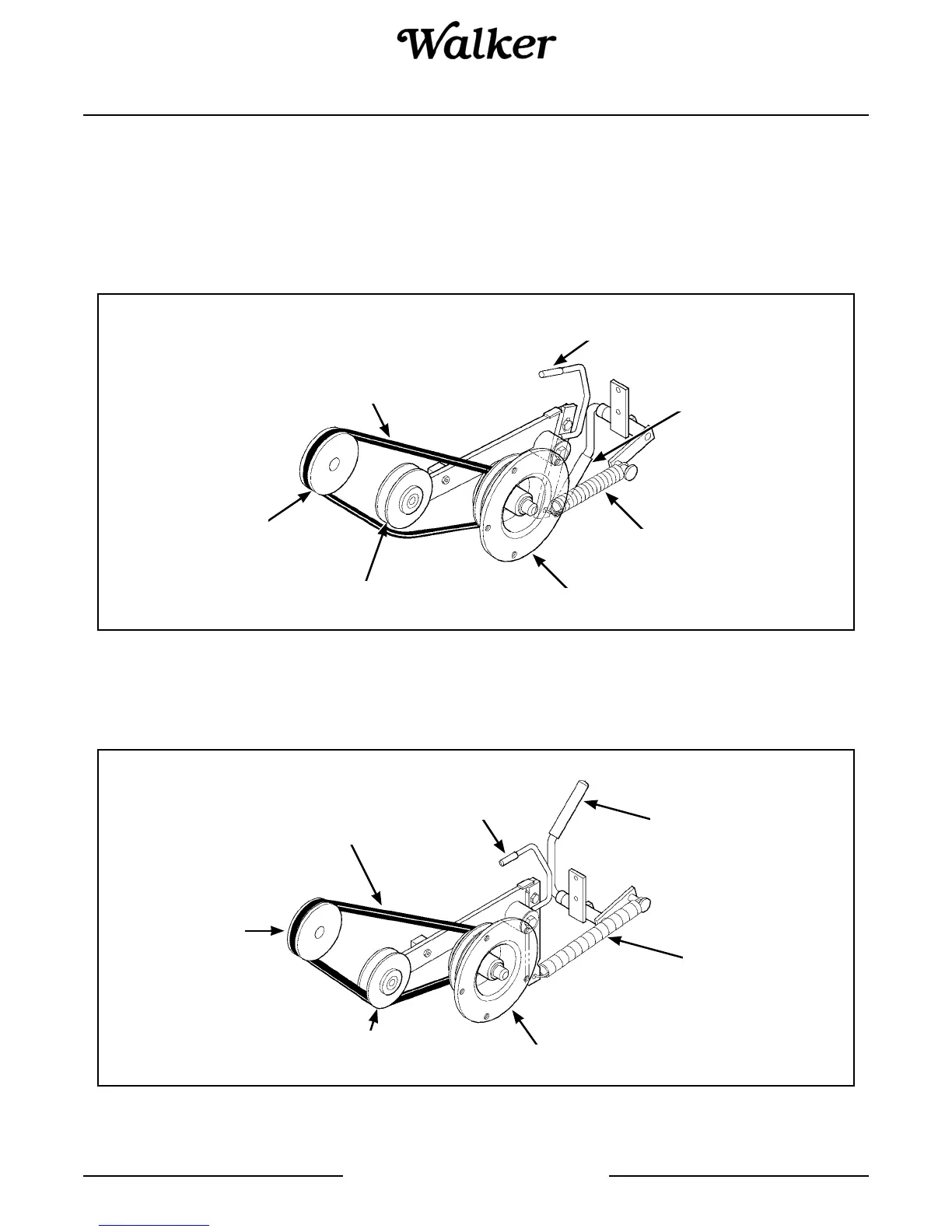

Jackshaft Drive Belt (Engaged)
2. Reverse the removal procedure to replace the
jackshaft drive belt.
Jackshaft Drive Belt (Disengaged)
b. Slide the idler arm release down to unlock
the idler arm from the spring lever. Then
pivot the arm up and away from the belt.
c. Roll the belt off the jackshaft pulley and
remove.

Walker MT Specifications

General

Category	Lawn Mower
Manufacturer	Walker
Model	MT
Fuel Type	Gasoline
Transmission Type	Hydrostatic
Deck Material	Steel
Engine	Kohler Command Pro
