Page: 4-12
WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
PTO Drive Belt - Model MS
1. To remove the PTO drive belt:
a. Remove the engine belt, as described in pre-
vious section.
b. Remove 1/4-20 x 3/4 bolt locating belt guide
on gearbox pulley and rotate guide to clear
belt.
c. Move blade clutch (in direction of engage-
ment) far enough to relax belt scrubber brake
without tightening the PTO drive belt. Roll belt
off PTO drive pulley and GHS blower pulley
(GHS model only).
2. Install the PTO drive belt by reversing the removal
procedure. Check scrubber brake adjustment and
brake action.

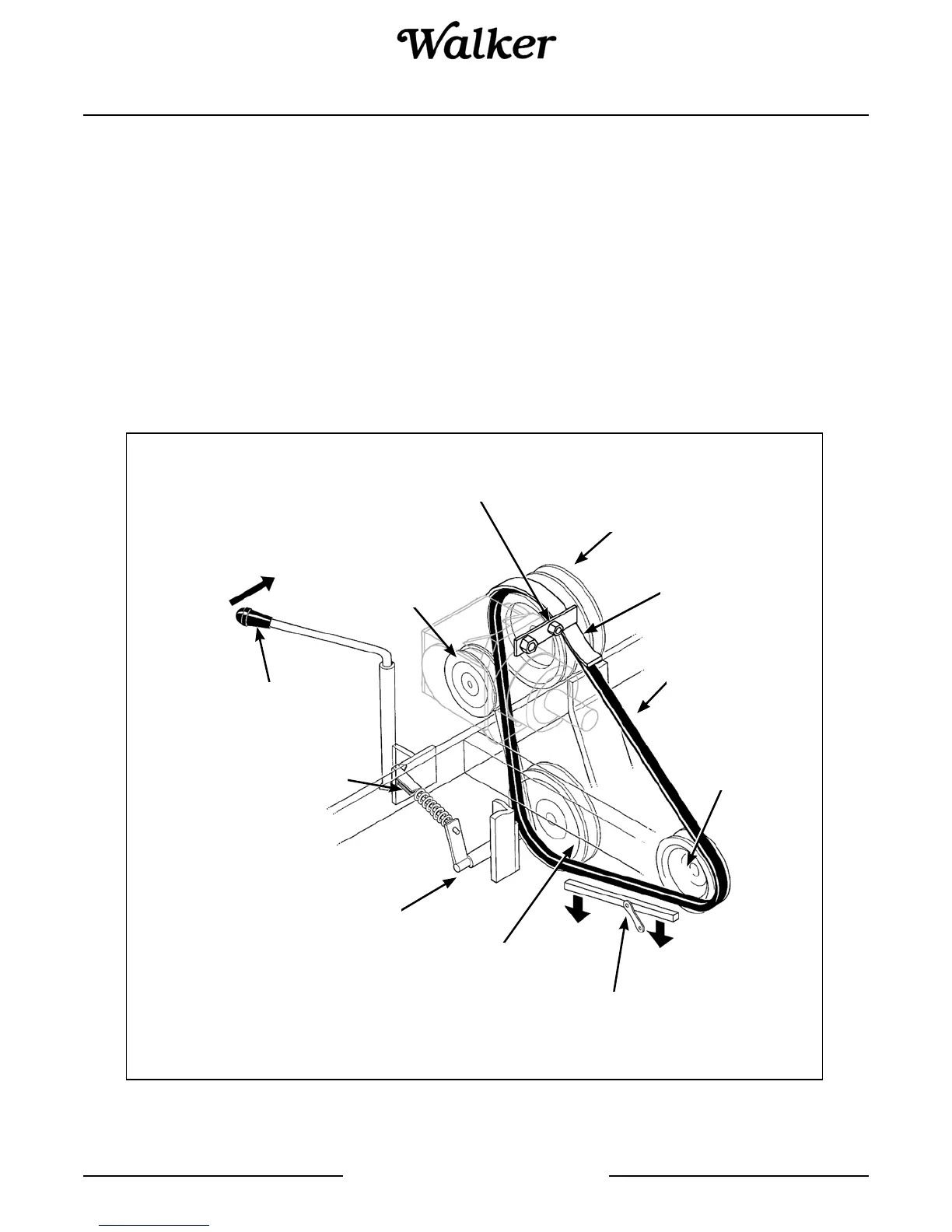

PTO Drive Belt Removal
Engage Clutch
Remove Bolt and Rotate Belt Guide to Clear Belt
Compound Pulley
Belt Guide
PTO Drive
Pulley
Belt Scrubber Brake
(Relax Brake to Remove Belt)
GHS
Blower
Pulley
PTO
Drive Belt
Clutch Idler Pulley
Blade Clutch
Lever
PTO Belt Tightener
Linkage
Clutch
Actuator Assembly
