Page: 6-6
WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
1
5
11
15
6
3
13
10
13
7
12
8
14
4
9
14
2

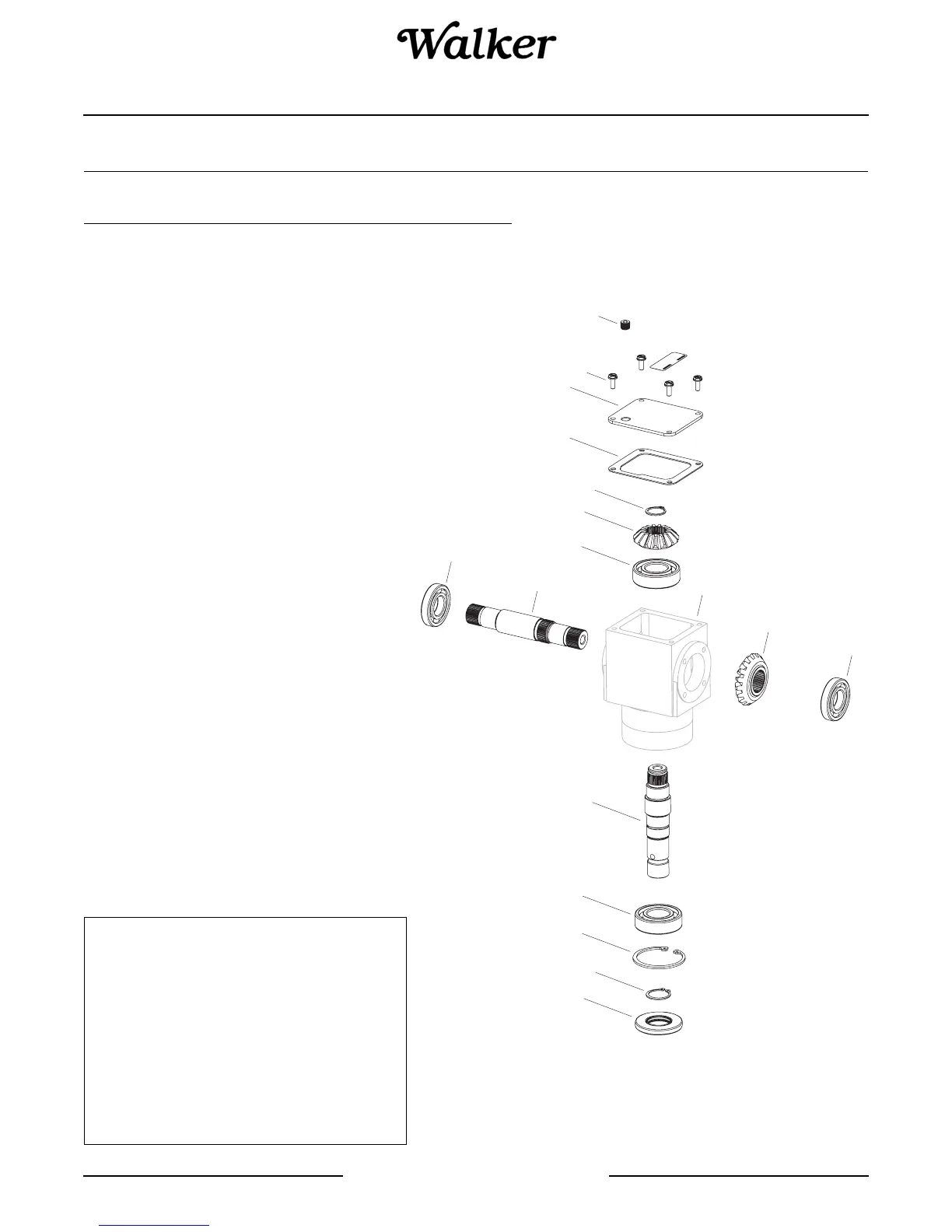

ALUMINUM PEERLESS GEARBOX 1000-100 (WALKER P/N 7751-16)
For 48" Decks After S/N 99-46813
1 P018 772067 Cover, LH 1
2 N/A 770117 “T” Drive Housing 1
3 P047* 6064P1 Bevel Gear (15 teeth-steel) 1
4 P047* 6065P1 Bevel Gear (18 teeth-steel) 1
5 P008 792025 Screw, RD/HD Self-Tap 4
6 P032 788018 Snap Ring, Gear Retainer 1
7 P051 788079 Snap Ring, Shaft Retainer 1
8 P052 788080 Snap Ring Bearing, Retainer 1
9 P017 776072A Input/Output Shaft 1
10 P056 6509-P1 Input Shaft 1
11 P041 28534 Plug, Cover 1
12 P042 788099 Seal 1
13 P044 780174 Ball Bearing 2
14 P024 780034 Ball Bearing 2
15 P004 788028 Gasket Cover 1
* P047 is a Matched Set - Walker only offers these as a set.
WALKER PEERLESS
ITEM PART PART DESCRIPTION NO.
NO. NO. NO. REQ’D
This Gearbox is used in the following applications:
For The Following Decks After S/N 99-46813
DGHS48 Tee Gearbox
