WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
Jackshaft Drive Belt - Model MC, MT, MTL
1. To remove the jackshaft drive belt:
a. Remove the engine PTO drive belt, as
described in previous section.

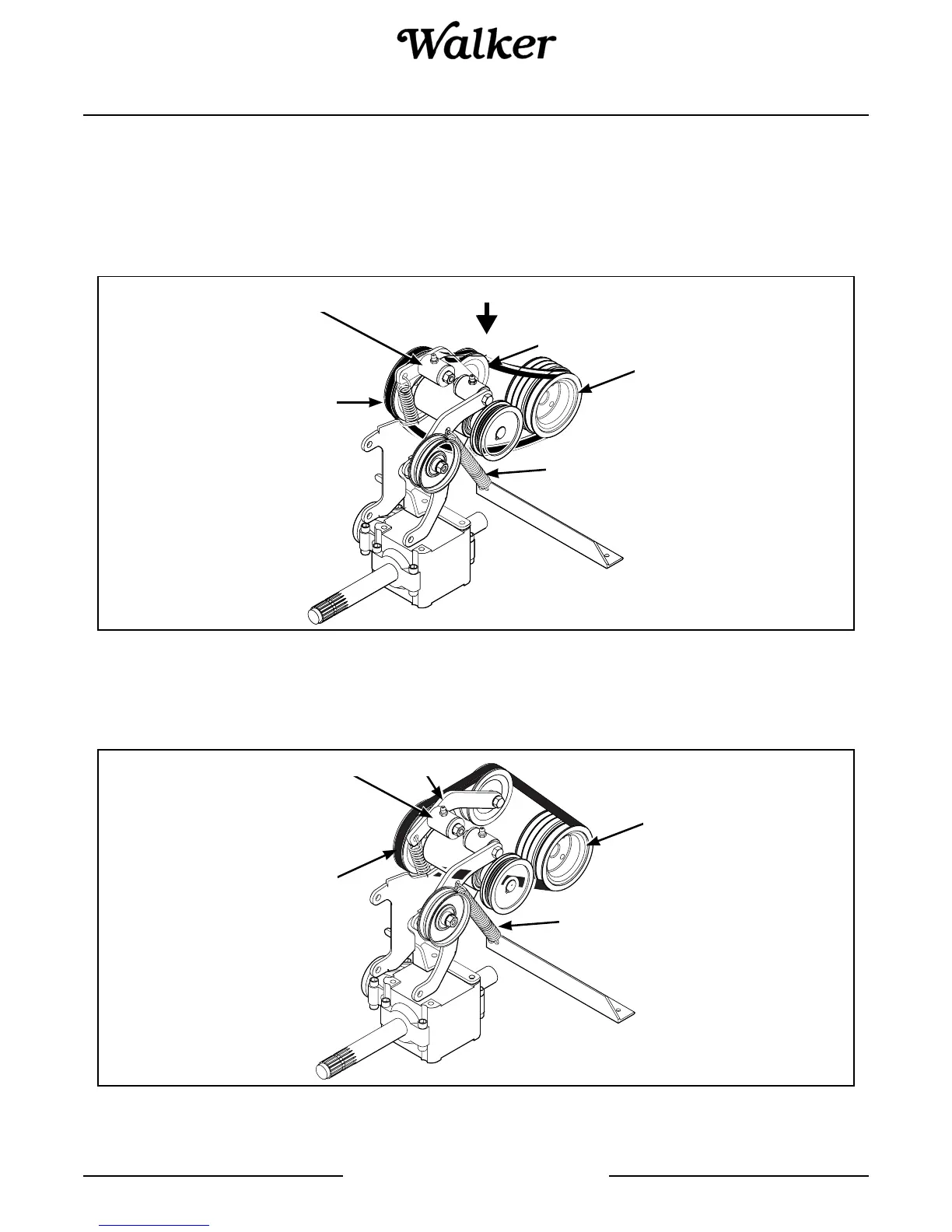

Jackshaft Drive Belt (Engaged)
2. Reverse the removal procedure to replace the
jackshaft drive belt.
Jackshaft Drive Belt (Disengaged)
b. Relax the belt by depressing the spring-
loaded idler arm.
c. Roll the belt off the jackshaft pulley and
remove.
Idler Pulley
Tension Spring
Jackshaft
Drive Belt
Push Idler Pulley Down to Relax Belt
Jackshaft
Engine
Pulley
Idler Arm
Jackshaft
Drive Belt
Jackshaft
Tension Spring
Engine
Pulley
