Page: 4-77
WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
Debris Blower Rotation Pinions
The two (2) rotation pinions should slightly contact each
other without any resistance.
1. Loosen the set screw of each stop ring on the ro-
tation handle.
2. Keeping the two (2) pinions slightly in contact with
each other, position the upper stop ring against the
lower support and tighten the screw.
3. Position the lower stop ring close to the lower sup-
port and tighten the set screw. The rotation handle
should rotate freely without excessive end play.
Debris Blower Rotation Handle
With the rotation pinions properly adjusted, the two (2)
stop rings should be positioned close enough to the
lower support to allow the rotation handle to rotate free-
ly without excessive end play.

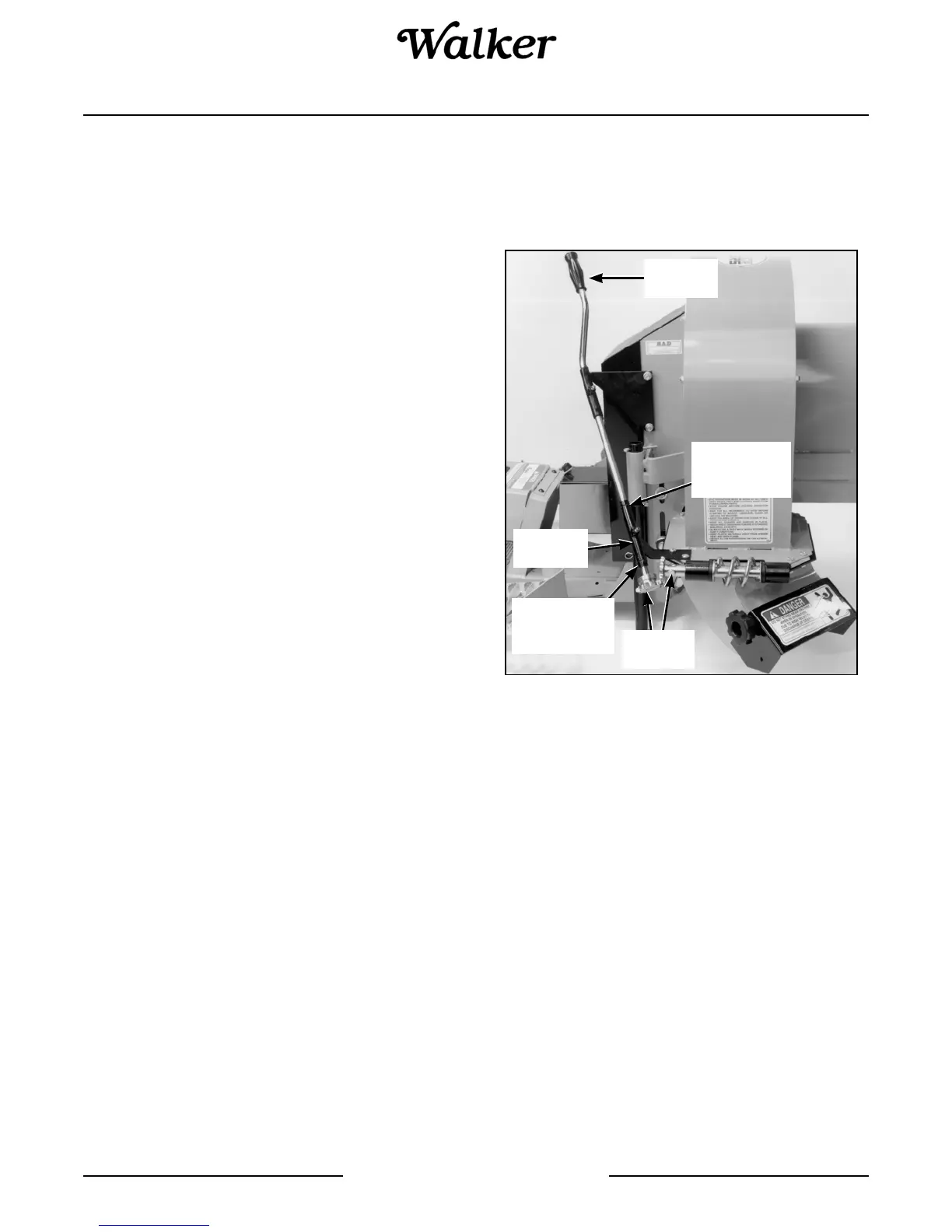

Debris Blower Rotation Pinions
& Handle Adjustment
Rotation
Pinions
Lower
Stop Ring
& Set Screw
Lower
Support
Upper
Stop Ring
& Set Screw
Rotation
Handle
