Page: 1-25
WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS

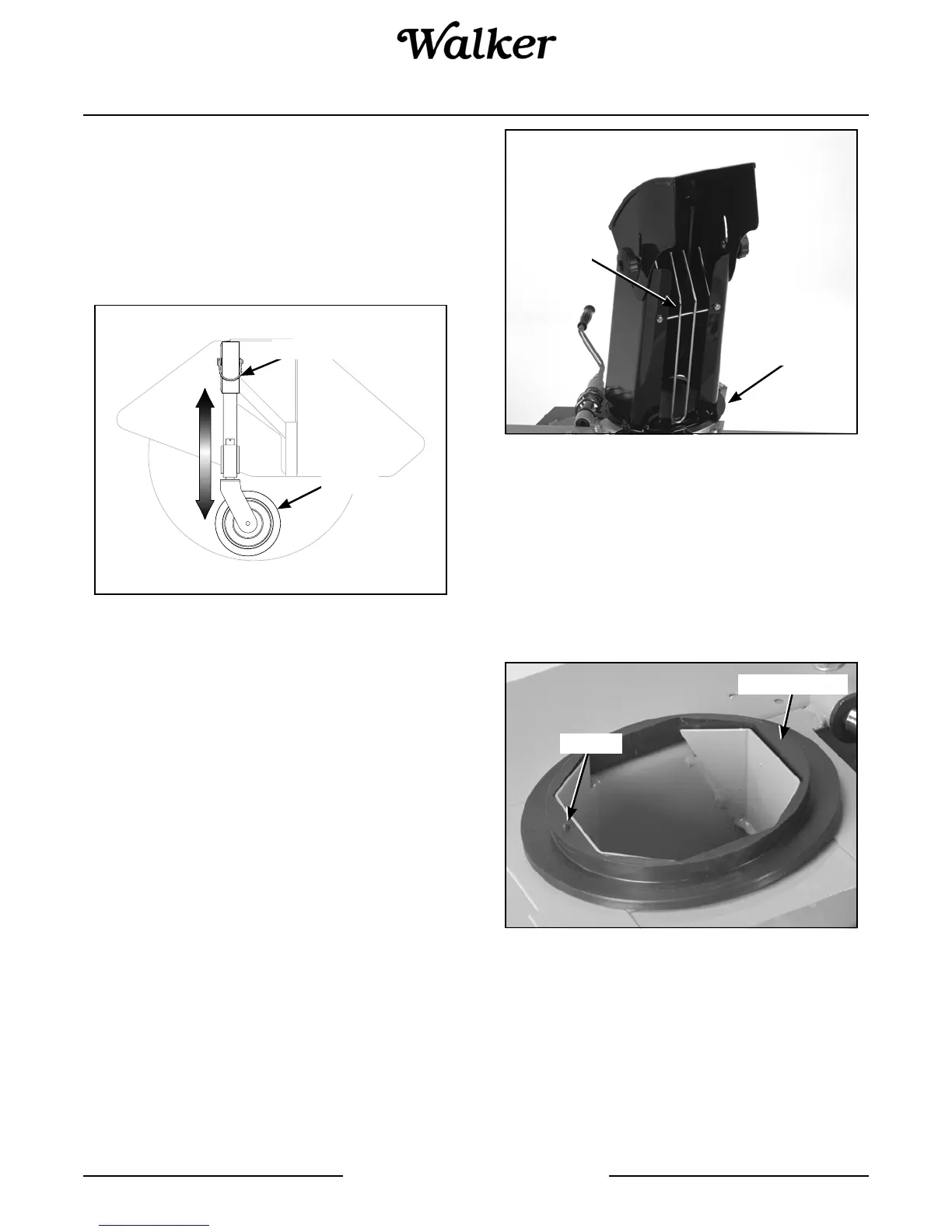

Optional Gauge Wheel Installation
NOTE: Gauge wheels are required for lawn work
or heavy loads.
This adjustment is required for lawn thatching or leaf
raking operations. Height is adjusted by removing pin
and adjusting broom height to correct position. Adjust
height according to type of application.
Optional Gauge Wheel Installation
TWO-STAGE SNOWBLOWER
Snowblower Assembly
1. Install the hand guard on the chute, with the top
section inside the chute and the bottom section
outside the chute base ring. Place two (2) 1/4 x 3/
4 in. bolts through the chute and the hand guard.
Secure with a flat washer, lock washer, and nut.
Position the bolt with the head on the outside of the
chute and the nut on the inside. Torque both bolts
to 10 ft-lb. (13.6 N·m).
Install Hand Guard on Chute
2. Remove the bushing support from the chute base
lip and discard the existing bolt (refer to Install Ro-
tation Worm Assembly photo).
3. Place the plastic anti-friction insert over the chute
base (placing the nipple on the upper side towards
the center of the fan housing). Only one position
provides a perfect fit. Apply grease on top of the in-
sert where it will contact the chute base.
Install Plastic Insert over Chute Base Lip
4. Insert the 1-5/16 in. (33 mm) plastic bushing into
the tube weldment.
5. Insert the 1-11/16 in. (43 mm) plastic bushing into
the bushing support and place this over the shaft
on the rotation worm.
Lock Pin
Gauge
Wheel
Hand
Guard
Chute Base
Ring
Nipple
Apply Grease
To Next Page
