WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
13
15
1
5
11
6
3
13
10
2
13
8
7
12
9
4
14

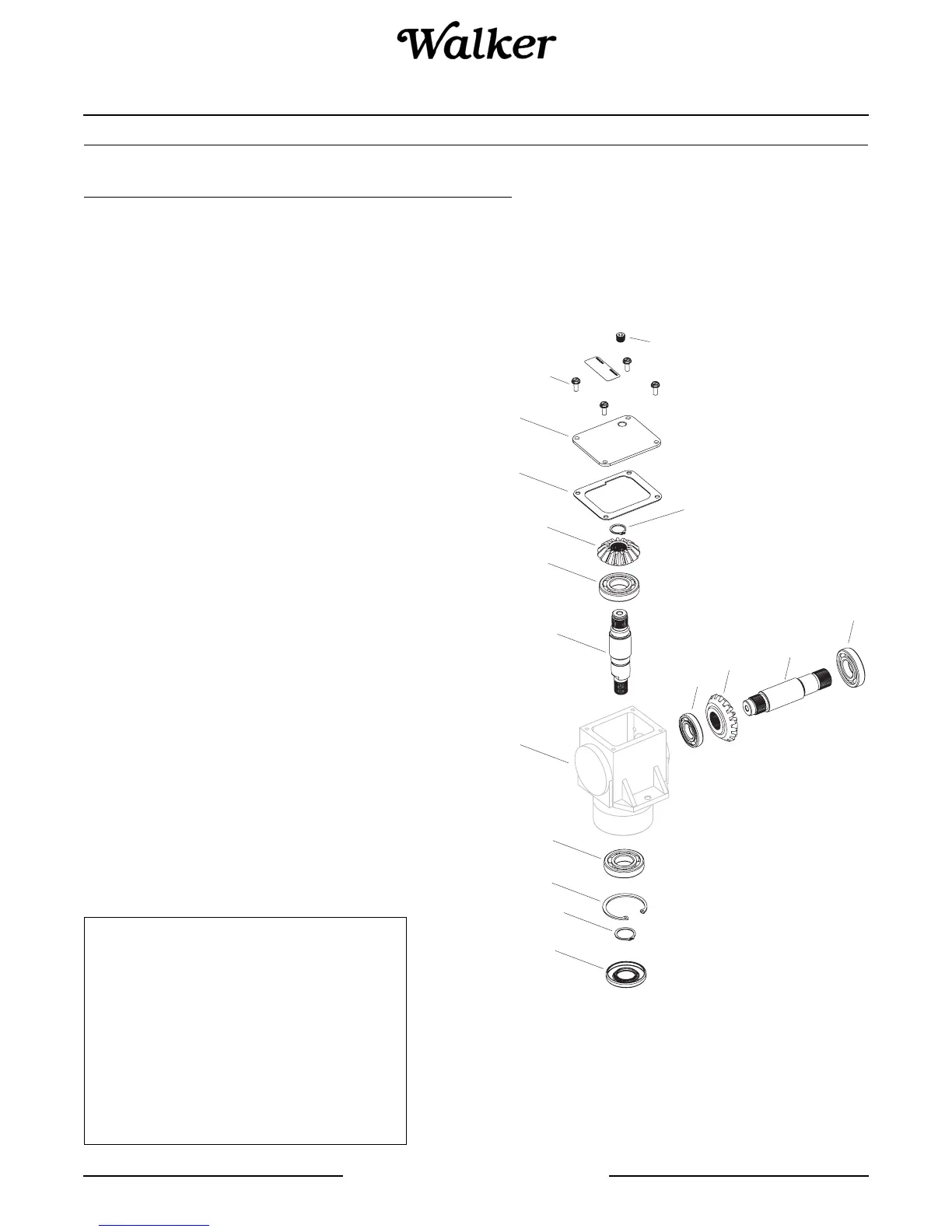

ALUMINUM PEERLESS GEARBOX 1000-095 (WALKER P/N 5052-2)
1 P018 772067 Cover, LH 1
2 N/A 770092A Right Angle Drive Housing 1
3 P060* 7062P1 Bevel Gear (15 teeth-steel) 1
4 P060* 6064P1 Bevel Gear (18 teeth-steel) 1
5 P008 792025 Screw, RD/HD Self-Tap 4
6 P032 788018 Snap Ring, Gear Retainer 1
7 P028 788019 Snap Ring 1
8 P016 792119 Snap Ring 1
9 P011 776041A Input Shaft 1
10 P058 776450 Output Shaft 1
11 P041 28534 Plug, Cover 1
12 P001 471730 Seal, Oil (Federal-Mogle) 1
13 P024 780034 Ball Bearing 3
14 P019 780024 Ball Bearing 1
15 P004 788028 Gasket Cover 1
* P060 is a Matched Set - Walker only offers these as a set.
WALKER PEERLESS
ITEM PART PART DESCRIPTION NO.
NO. NO. NO. REQ’D
This Gearbox is used in the following applications:
(RH and LH indicate view from operator seat)
DSD56 LH Gearbox
