WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS

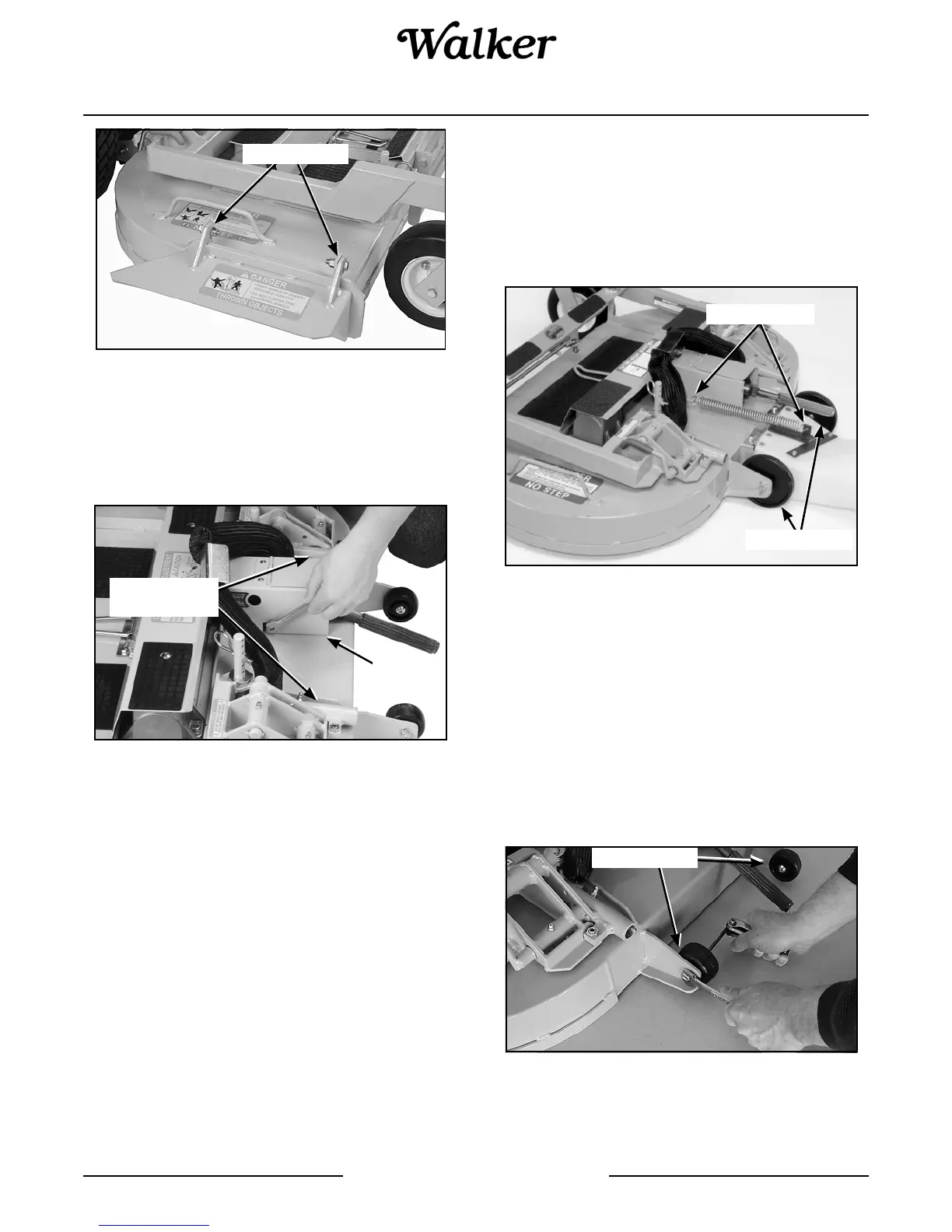

Discharge Shield Installation
on Side Discharge Deck
PTO Shaft Guard Installation - All Models
Position the shaft guard as shown and mount with two
1/4-20 x 1/2 in. bolts.
PTO Shaft Guard Installation
Tilt-Up Roller Wheel Installation - Model MS, MB (after
S/N 2006-81428), MC, MD, MT, MTL, MTEFI
Mount the two (2) tilt-up roller wheels on the brackets
on the rear skirt of the deck housing using the
P/N 8490 axle bolt, 3/8 in. wave spring washer and 3/8-
16 in. Whiz locknut. Tighten the axle bolt until the wheel
rolls freely, but is not loose.
Tilt-Up Spring and Roller Wheel
Installation on Rear Discharge Deck
Tilt-Up Roller Wheel Installation - Model MW, MB
(prior to S/N 2006-81428)
NOTE: A 2-1/2" diameter tilt-up roller wheel (P/N 9772)
is required.
Mount the two (2) tilt-up roller wheels on the brackets
on the rear skirt of the deck housing using the
P/N 8490 axle bolt, 3/8 in. wave spring washer and 3/8-
16 in. Whiz locknut. Tighten the axle bolt until the wheel
rolls freely, but is not loose.
Tilt-Up Roller Wheel Installation - Model MW
Attach Shield
Carrier Frame
Tube Sockets
Attach
Guard
Attach Spring
Roller Wheels
Roller Wheels
