WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
3
15
1
5
14
4
11
6
13
9
14
2
10
13
7
12
8
054

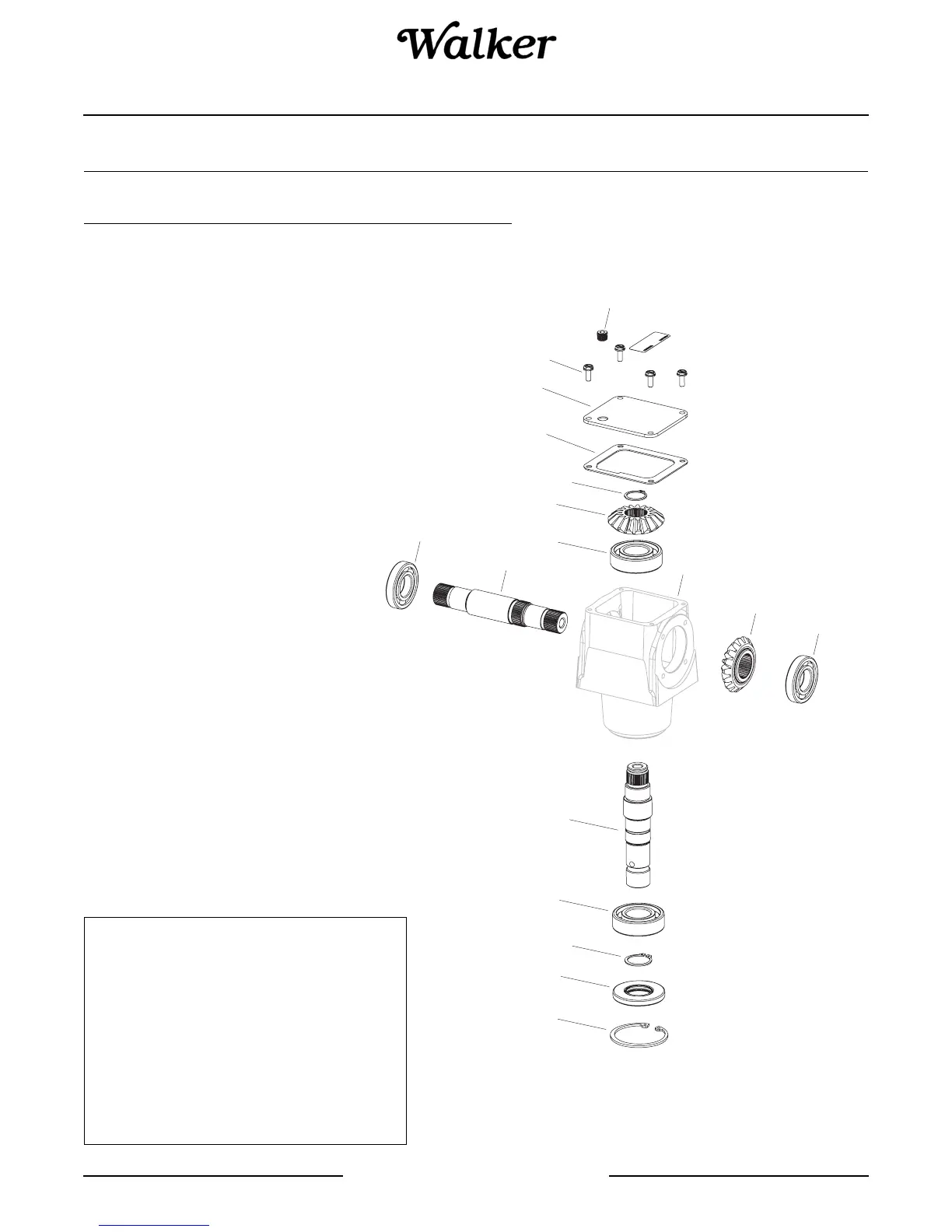

CAST IRON PEERLESS GEARBOX 1050-003 (WALKER P/N 5051-6)
For 36", 42", and 54" Decks After S/N 99-46813
1 P018 772067 Cover, LH 1
2 N/A 770142A “T” Drive Housing 1
3 P003 778101 Miter Gear (17 teeth-steel) 1
4 P031 778210A Gear, Miter 1
5 P008 792025 Screw, RD/HD Self-Tap 4
6 P032 788018 Snap Ring, Gear Retainer 1
7 P028 788019 Snap Ring 1
8 P016 792119 Snap Ring 1
9 P017 776072A Input/Output Shaft 1
10 P056 6509-P1 Input Shaft 1
11 P041 28534 Plug, Cover 1
12 P001 471730 Seal, Oil (Federal-Mogle) 1
13 P044 780174 Ball Bearing 2
14 P024 780034 Ball Bearing 2
15 P004 788028 Gasket Cover 1
WALKER PEERLESS
ITEM PART PART DESCRIPTION NO.
NO. NO. NO. REQ’D
This Gearbox is used in the following applications:
For The Following Decks After S/N 99-46813
DGHS 36 Tee Gearbox
DSD36 Tee Gearbox
DGHS42 Tee Gearbox
DSD42 Tee Gearbox
DML42 Tee Gearbox
DSD54 Tee Gearbox
