Page: 6-20
WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
10
12
8
3
13
4
1
14
5
3
12
2
9
12
7
6
11
15
7

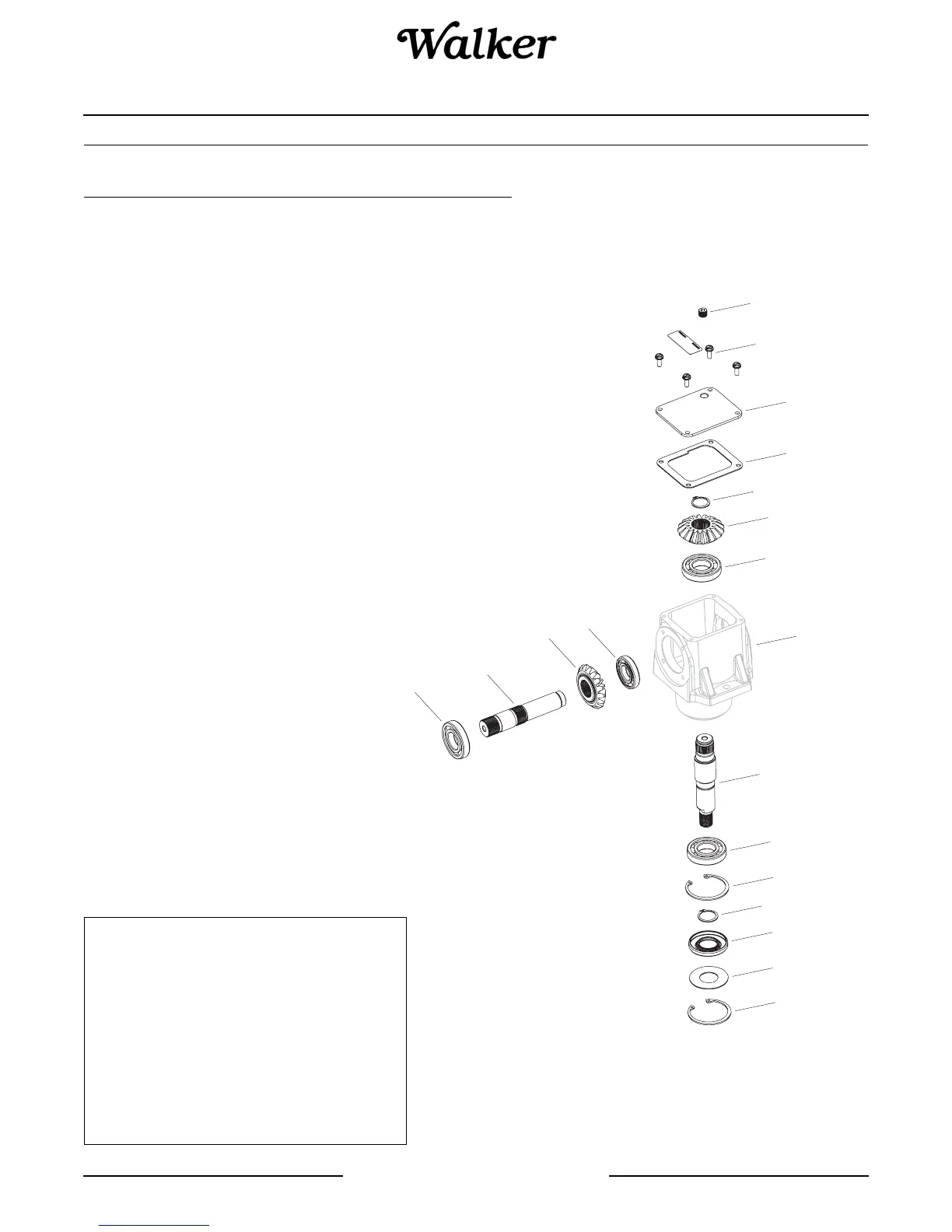

CAST IRON PEERLESS GEARBOX 1050-010 (WALKER P/N 5053-8)
1 P018 772067 Cover, LH 1
2 N/A 770141 Right Angle Drive Housing 1
3 P003 778101 Miter Gear (17 teeth-steel) 2
4 P008 792025 Screw, RD/HD Self-Tap 4
5 P032 788018 Snap Ring, Gear Retainer 1
6 P028 788019 Snap Ring 1
7 P016 792119 Snap Ring 2
8 P005 776040A Input Shaft 1
9 P063 776465 Output Shaft 1
10 P041 28534 Plug, Cover 1
11 P001 471730 Seal, Oil (Federal-Mogle) 1
12 P024 780034 Ball Bearing 3
13 P019 780024 Ball Bearing 1
14 P004 788028 Gasket Cover 1
15 P062 792219 Seal Protector Washer 1
WALKER PEERLESS
ITEM PART PART DESCRIPTION NO.
NO. NO. NO. REQ’D
This Gearbox is used in the following applications:
(RH and LH indicate view from operator seat)
DML42A RH Gearbox
