WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
12
1
14
4
10
15
5
3
13
2
9
13
6
7
11
17
7
3
8
13
16

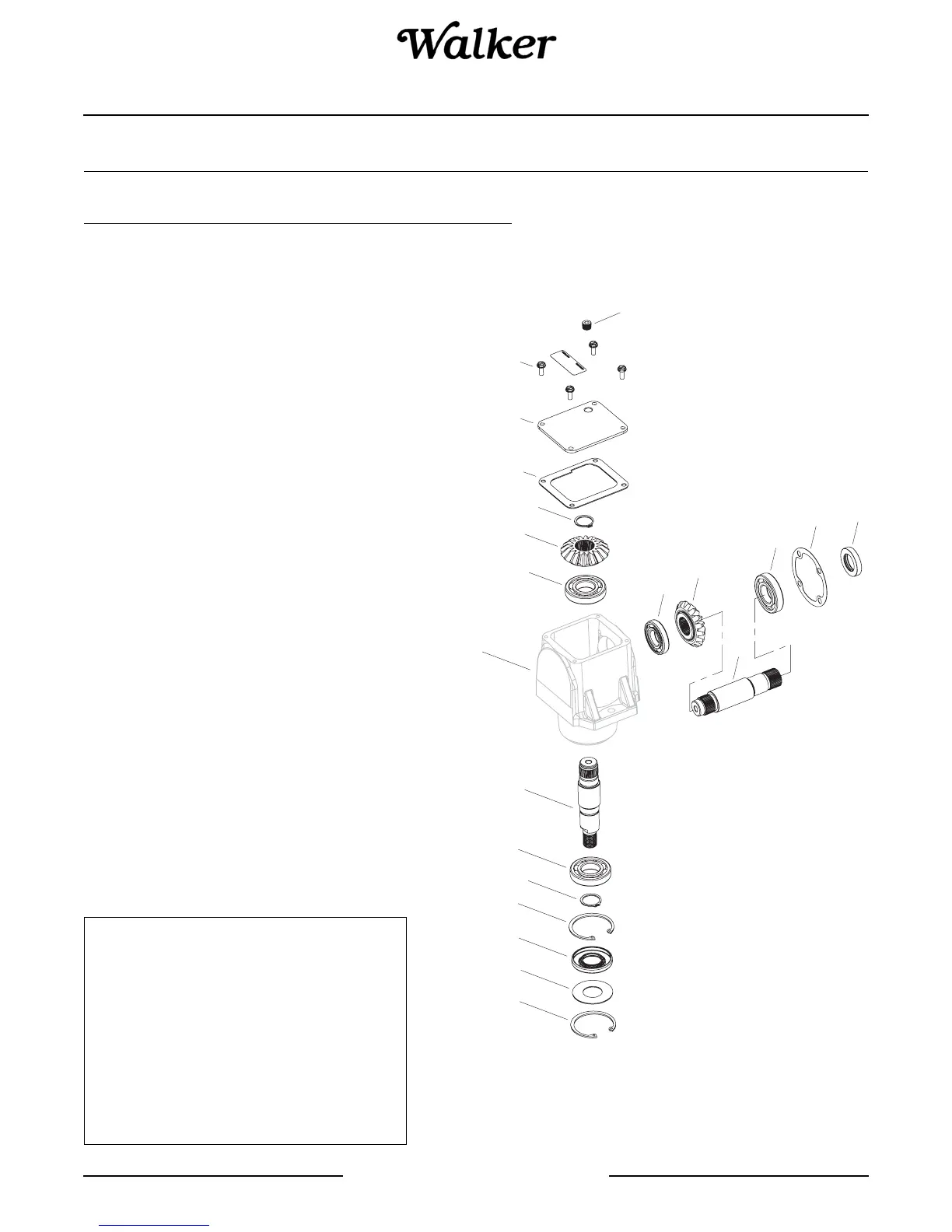

CAST IRON PEERLESS GEARBOX 1050-007 (WALKER P/N 5052-7)
For 42" & 48" European Decks
1 P018 772067 Cover, LH 1
2 N/A 770141 Right Angle Drive Housing 1
3 P003 778101 Miter Gear (17 teeth-steel) 2
4 P008 792025 Screw, RD/HD Self-Tap 4
5 P032 788018 Snap Ring, Gear Retainer 1
6 P028 788019 Snap Ring 1
7 P016 792119 Snap Ring 2
8 P011 776041A Input Shaft 1
9 P055 P054-P1 Output Shaft (4-5/8) 1
10 P041 28534 Plug, Cover 1
11 P001 471730 Seal, Oil (Federal-Mogle) 1
12 P021 788031 Seal, Oil 1
13 P024 780034 Ball Bearing 3
14 P019 780024 Ball Bearing 1
15 P004 788028 Gasket Cover 1
16 P007 788030 Gasket, Cap 1
17 P062 792219 Seal Protector Washer 1
WALKER PEERLESS
ITEM PART PART DESCRIPTION NO.
NO. NO. NO. REQ’D
This Gearbox is used in the following applications:
(RH and LH indicate view from operator seat)
DGHS42E RH Gearbox
DGHS42E LH Gearbox
DGHS48E RH Gearbox
DGHS48E LH Gearbox
To Next Page
