Walker MT Detailed Instructions

Page: 4-14
WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
Engine/PTO Belt - Model MB
1. To remove the engine/PTO belts:
a. Remove belt guard from underneath muffler.
Refer to Remove Belt Guard photo.
b. Relax the belt by depressing the spring-
loaded idler arm.
c. Roll the belts off the pulley one at a time and
remove the belts.

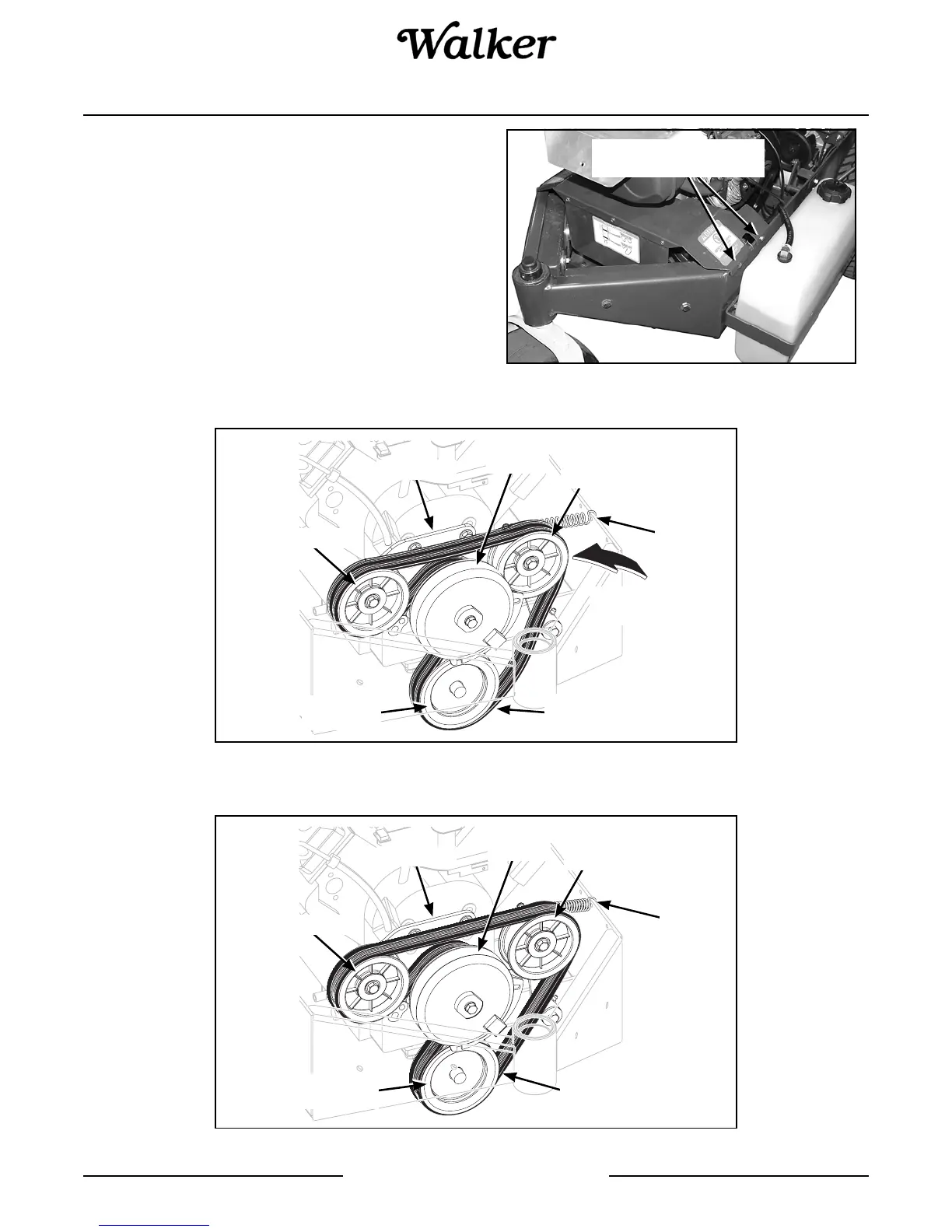

Remove Belt Guard
Remove Bolts to Access
Engine/PTO Belt
Push Idler Pulley
to Relax Belt
Idler Pulley
Idler Arm
Electric
Clutch
Idler
Pulley
Engine/PTO
Belts
Tension
Spring
PTO Drive
Pulley
Engine/PTO Belt (Engaged)
Engine/PTO Belt (Disengaged)
2. Reverse the removal procedure to replace the
engine belt.
Tension
Spring
Idler Pulley
Idler Arm
Electric
Clutch
Idler
Pulley
PTO Drive
Pulley
Engine/PTO
Belts

Walker MT Specifications

General

Category	Lawn Mower
Manufacturer	Walker
Model	MT
Fuel Type	Gasoline
Transmission Type	Hydrostatic
Deck Material	Steel
Engine	Kohler Command Pro
