Walker MT Detailed Instructions

Page: 4-23
WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
Engine Fan Belt - Model MD
1. To remove the fan belt:
a. Loosen the alternator mounting pivot bolt and
the alternator bracket tensioner bolt.
b. Pivot the alternator as shown to relax and
remove belt.

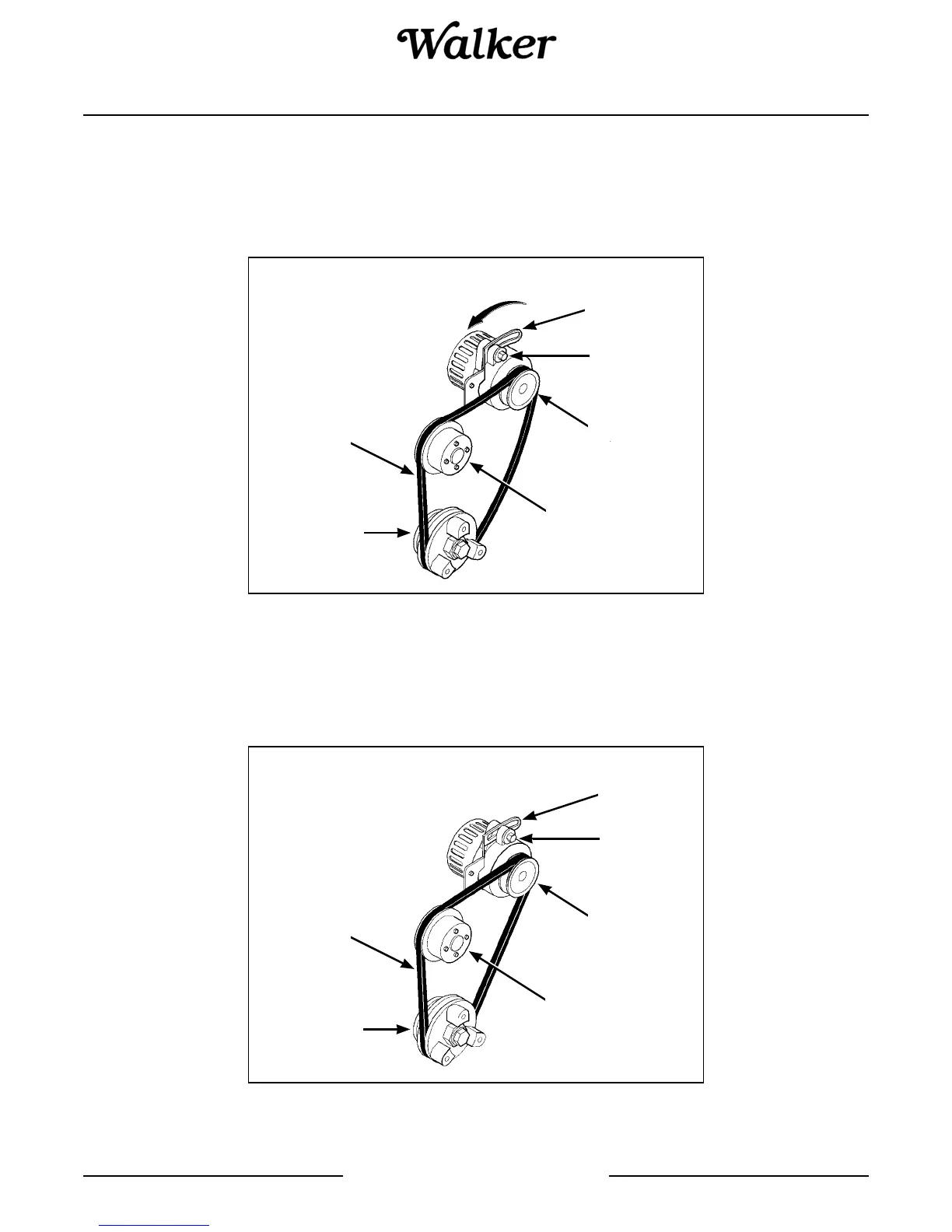

Engine Fan Belt (Tight)
Engine Fan Belt (Loose)
Crankshaft
Pulley
Engine
Fan Belt
Tensioner
Bolt
Water Pump
Pulley
Alternator
Alternator
Bracket
Alternator
Bracket
Crankshaft
Pulley
Engine
Fan Belt
Tensioner
Bolt
Water Pump
Pulley
Alternator
2. Reverse the procedure to install the belt. Adjust
and check the belt tension by referring to
CHECKING/SERVICING the Fan Belt Tension
in the Maintenance Instructions Section.
