8. Adjust the skid shoes to allow the required clear-
ance under the blade. Install a skid shoe pin in
each shoe and lock in place with a 4 mm x 80 mm
hairpin. Refer to ADJUSTMENTS of Dozer Blade
Skid Shoes in the Service Procedures Section.

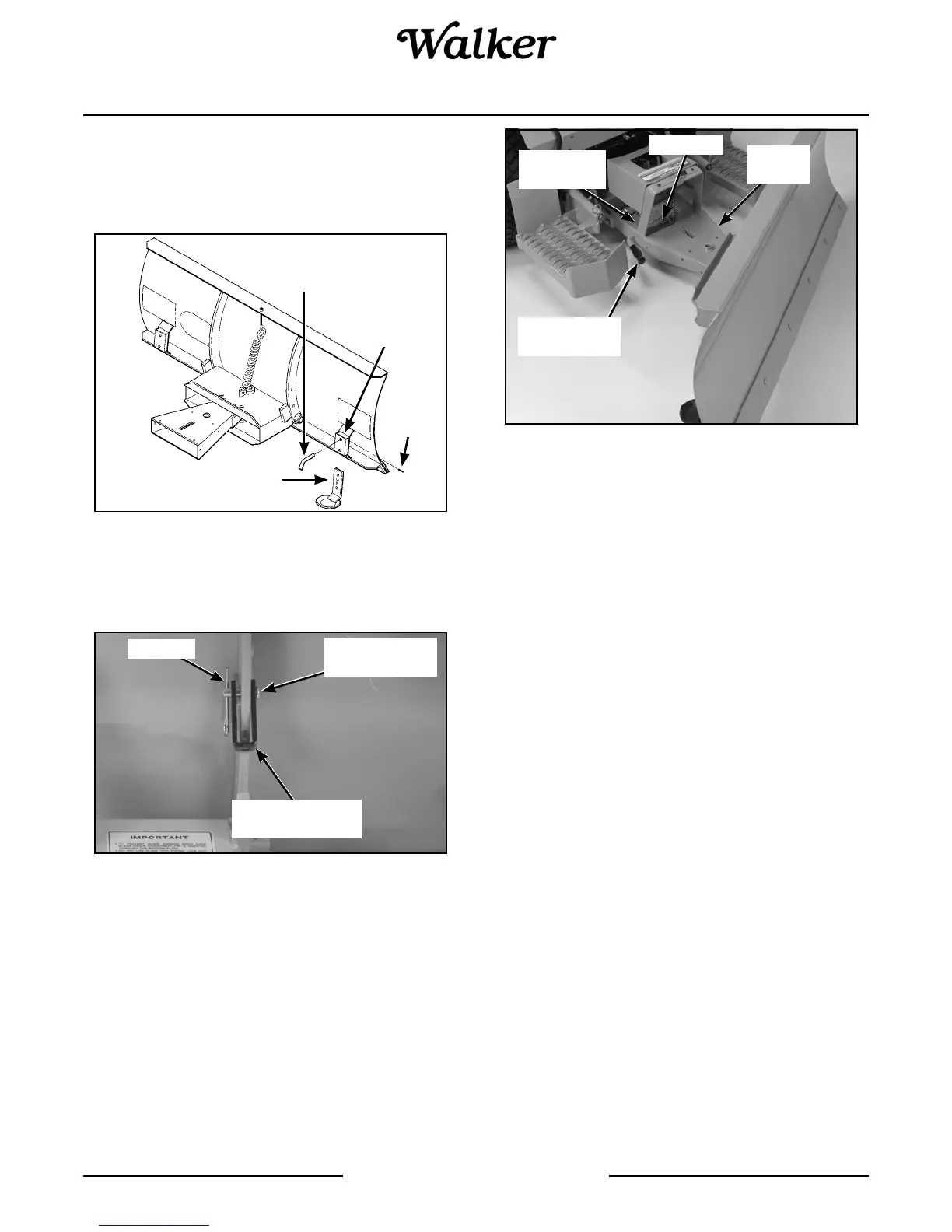

Install Skid Shoes
9. Install the trip spring lockout bracket in the upper
hole behind the blade using the lockout pin and
hairpin.
Install Trip Spring Lockout Bracket
Dozer Blade Installation
1. Insert the male quick hitch section of the implement
hitch into the female hitch of the blade. Lock in
place by moving the hitch locking lever fully for-
ward to the LOCKED position. Secure the male
quick hitch latch with the linchpin.
Attach Blade to Tractor
2. To install the optional tire chains:
a. Remove the tractor wheels.
b. Attach the tire chains to the wheels.
c. Place the wheel spacer plates on the lug
bolts. The wheel spacer plates provide clear-
ance for the chains between the tires and the
tractor body.
d. Place the wheels back on the tractor.
e. Reinstall and tighten the lug bolts.
ROTARY BROOM
Rotary Boom Installation
1. Insert a parking stand into each stand support
bracket from the underside. Install a 5/32 x 1-1/4
in. cotter pin in the upper hole of each parking
stand. Set the parking stands in their most ex-
tended position and secure each stand with a 4
mm x 80 mm hairpin.
2. Check the pivot lock pin and make sure it is in the
innermost position to prevent bulking of the fe-
male hitch member, and to facilitate quick hitch at-
tachment.
Skid Shoe
Hairpin
Skid Shoe
Pin
Skid Shoe
Bracket
Lockout Pin
in Upper Hole
Trip Spring
Lockout Bracket
Hairpin
Male Quick
Hitch
Linchpin
Female
Hitch
Hitch Locking
Lever
To Next Page
