Page: 1-23
WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS

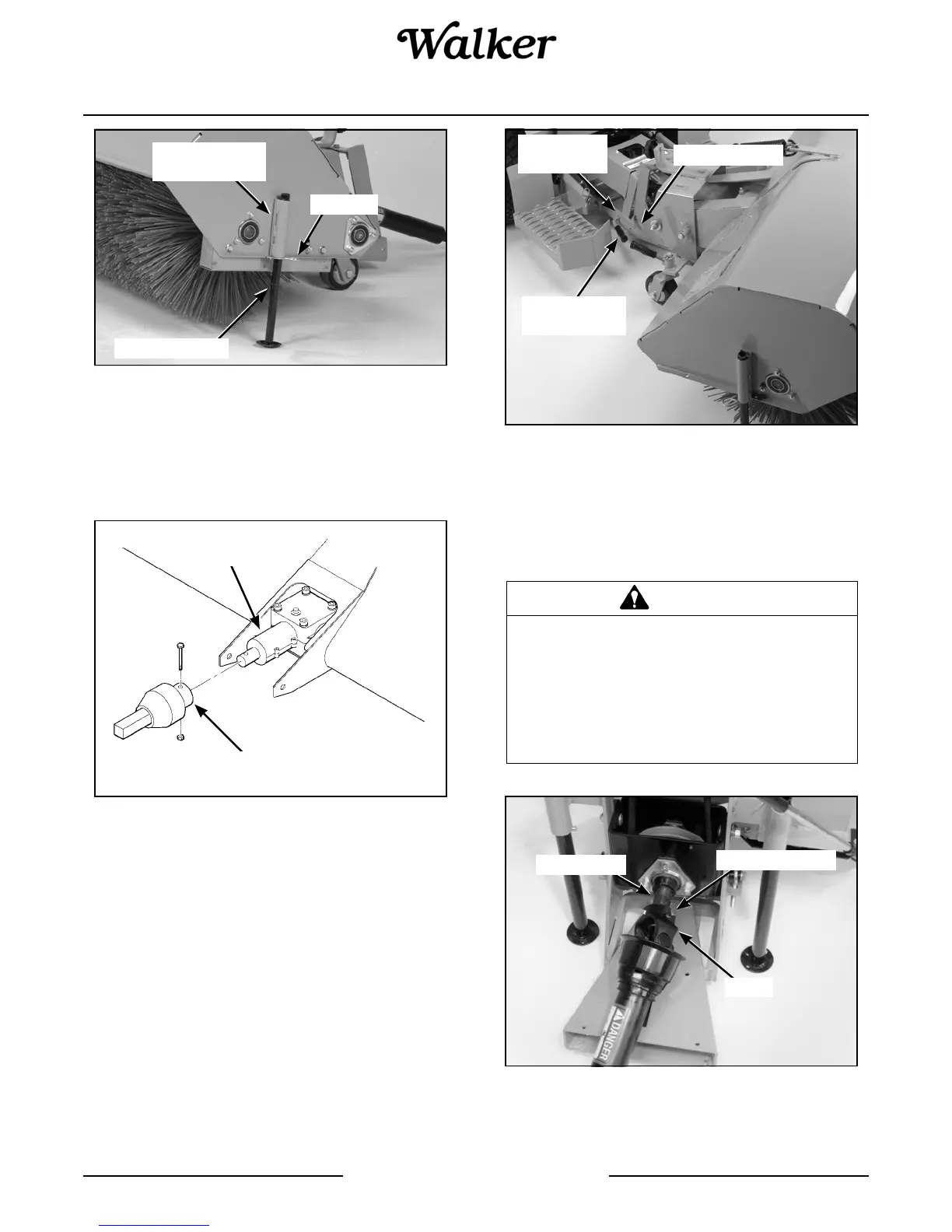

Prepare Rotary Broom for Installation
3. Attach the female broom driveline half (with quick
connect yoke) over the male broom driveline half.
Set the driveline on its support.
NOTE: Driveline sliding surfaces must be greased.
Assemble Rotary Broom Driveline
4. Insert the male quick hitch section of the implement
hitch into the female quick hitch of the rotary broom
and place the male quick hitch lever fully forward
to the LOCKED position. Secure the male quick
hitch latch with the linchpin.
Attach Broom to Implement Hitch
5. Connect the broom driveline to the tractor PTO
shaft by sliding back the locking collar on the yoke,
then push the yoke over the PTO shaft until the
locking collar snaps back fully. Make sure the
driveline is well secured at both ends.
Connect Broom Driveline to Tractor PTO Shaft
Stand Support
Bracket
Hairpin
Parking Stand
Drive Shaft
Yoke
Reduction
Shaft
DANGER
This shaft turns at very high RPM. If the
collar is not locked to the PTO shaft at the
tractor end, or if the yoke at the broom
end is not secured properly, the driveline
can fly loose with great force capable of
causing serious injury or death.
Hitch Locking
Lever
Male Quick
Hitch
Female Hitch
PTO Shaft
Locking Collar
Yoke
