Page: 4-13
WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
PTO Drive Belt - Model MW
1. Remove the two mounting bolts holding the PTO
belt guide in place and loosen the front mounting
bolts of PTO actuator assembly (as shown). Re-
move belt guide. Remove nuts on the front of
brake band and remove.
2. Unhook spring and unbolt actuator clevis attached
to the PTO gearbox assembly. Pull gearbox as-
sembly to the rear and remove belt.
3. Install the PTO drive belt by reversing removal pro-
cedure.
Ground Drive Belt - Model MW
NOTE: The PTO drive belt must be removed for re-
moval of the ground drive belt.
1. Relax the belt by releasing spring tension from the
ground drive belt idler arm.
2. Slide the belt over both transaxle pulleys and feed
it toward the back of the mower.
3. Install ground drive belt by reversing removal pro-
cedure.
Ground Drive
Idler Pulley
Remove Spring and
Linkage
Ground
Drive Belt
PTO
Drive Belt
Remove
Mounting Bolts
Loosen
Front Bolts

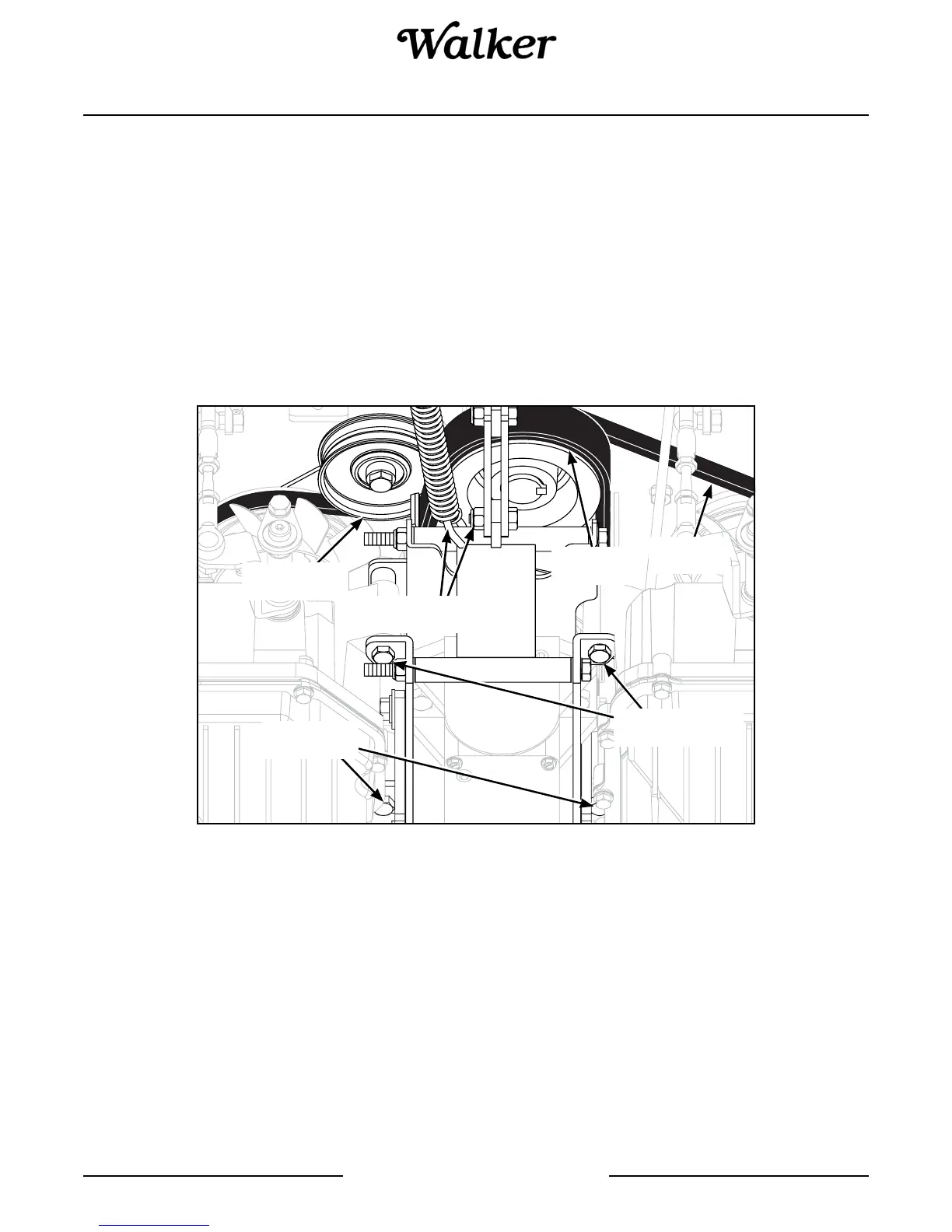

PTO Drive and Ground Drive Belt Removal
(view from underside rear of tractor)
