WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
DOZER BLADE

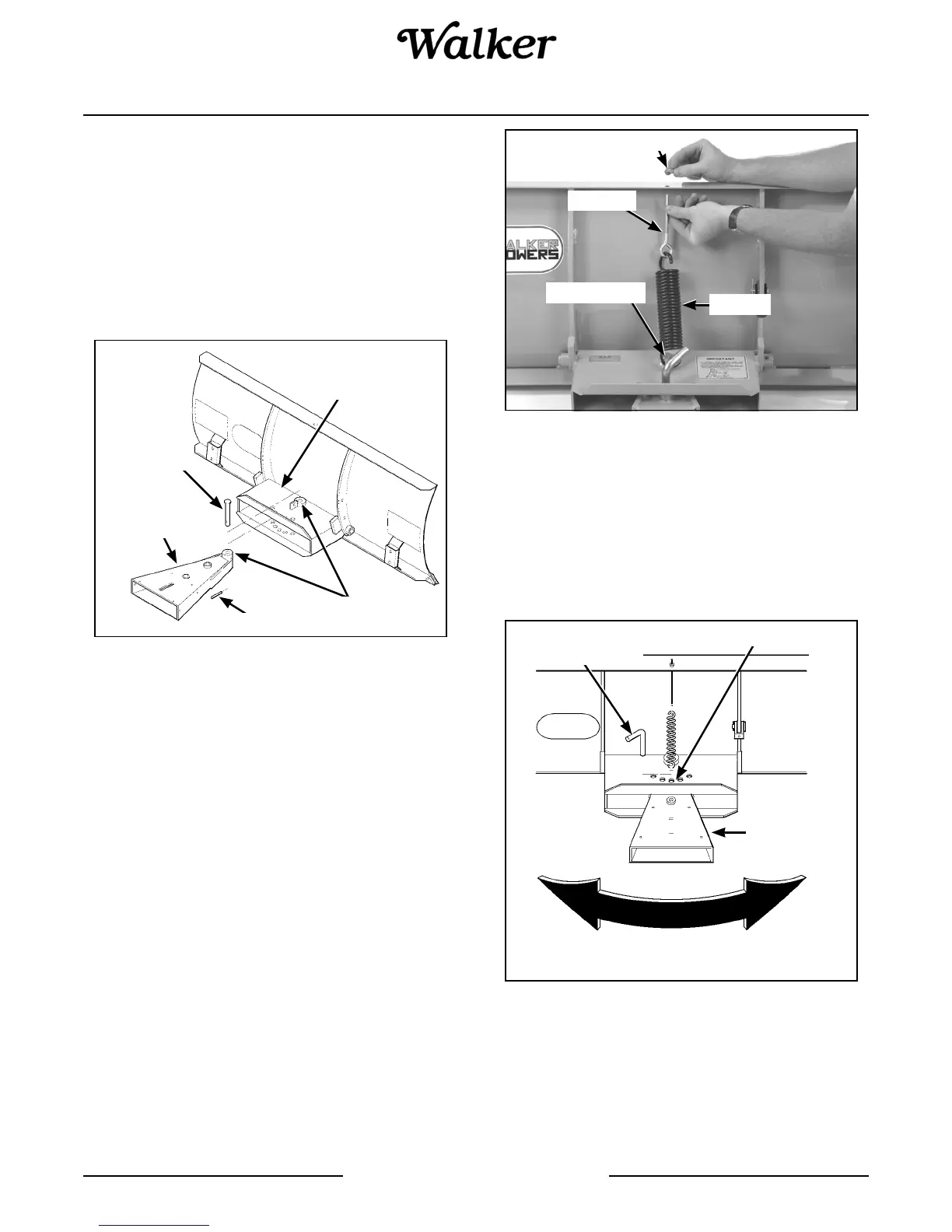

Dozer Blade Assembly
1. Insert the female quick hitch into the hitch box on
the blade attachment.
2. Align the single hole at the end of the female quick
hitch with the single hole in the hitch box and insert
the pivot pin through both holes. Secure the pivot
pin on the underside with a 1/4 x 1 in. roll pin.
Insert Female Hitch into Blade Attachment
3. Hook one end of the spring onto the welded tab on
the hitch box. Hook the eyebolt onto the free end
of the spring.
4. Insert the eyebolt up through the hole in the upper
bend of the blade and secure it with a flat washer
and nut. Adjust the length of the eyebolt according
to the amount of spring tension required for safe
operation. [Normally about 1/2 in. (13mm) of
thread should protrude beyond the nut.]
Attach Spring to Blade Assembly
5. Insert a 3/16 x 1 in. split spring pin into the angle
adjustment pin.
6. Rotate the female quick hitch to obtain the required
blade angle. Align the hole in the center of the fe-
male quick hitch with one of the five (5) holes in the
hitch box, and insert the angle adjustment pin
through the top and bottom holes.
Insert Adjustment Pin and Set Blade Angle
7. Install the two (2) skid shoes in the two brackets on
the rear outer edges of the blade.
Female
Quick Hitch
Roll Pin
Pivot Pin
Hitch Box
Align Holes
Nut
Eyebolt
Spring
Welded Tab
Rotate Female Quick Hitch
For Required Blade Angle
Angle Adjustment Hole(s)Angle Adjustment
Pin
Female Quick
Hitch
