Loosen Chain Idler and Set Screws
7. Remove the three bolts on the bearing flanges on
each side of the broom and loosen the bearing set
screws. Push the bearings and flanges towards
the brush.
8. Remove the bearing, brush support adapter and
flanges on the opposite side of the sprocket. Re-
move the brush by carefully sliding it downward
from its position.
Remove Brush from Broom Housing
9. Install the new brush by reversing the removal pro-
cedure.
Rotary Broom Gearbox
Remove and replace the gearbox as follows:
1. Stop the tractor engine, set the parking brake, and
remove the ignition key.
2. Loosen the set screw fastening the driveline fe-
male half and slide the driveline off the gearbox
shaft.
3. Remove the four (4) bolts, lock washers, and hex
nuts that fasten the gearbox to the broom housing.
4. Loosen two (2) set screws on the chain drive shaft
and slide it from the gearbox drive shaft.
5. Replace the gearbox by reversing the removal pro-
cedures.
Replace Rotary Broom Gearbox
Rotary Broom Drive Chain
The drive chain should be replaced if, when adjusted
properly, it can be pulled away from the front of the drive
sprocket more than 1/2 the height of a tooth on the
sprocket. Running the rotary broom with a worn chain
increases wear on the sprockets.
1. Remove the chain guard. Refer to LUBRICATION
of Rotary Broom Drive Chain in the Lubrication
Section.
2. Loosen the bearing flange mounting nuts and
bolts. Position the chain tension block so that the
chain has as much slack as possible. Tighten the
bearing flange mounting nuts and bolts slightly to
hold the bearing flange in this position.

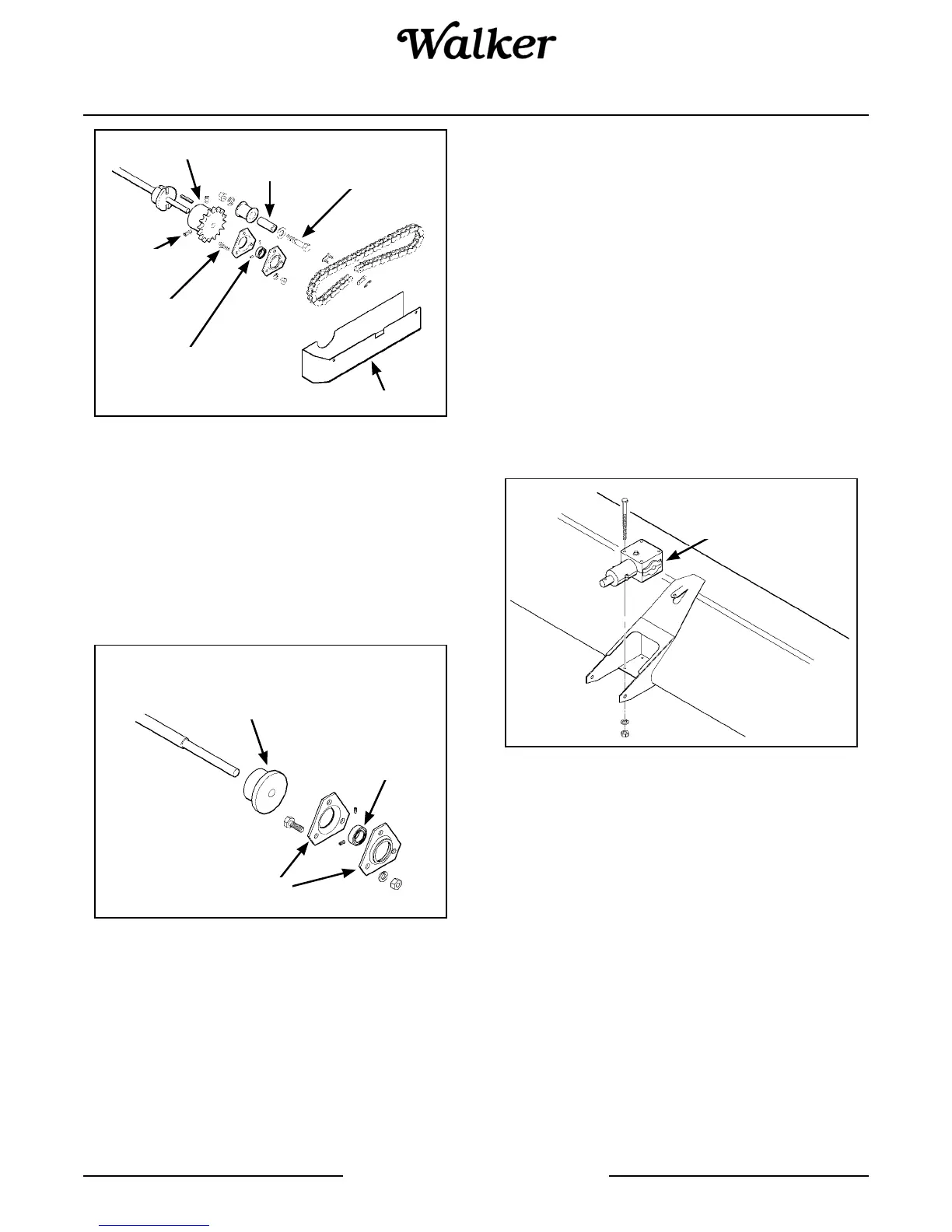

Chain Guard
Flange
Bolts
Bearing
Set
Screws
Sprocket
Screws
Sprocket
Chain
Idler
Chain Idler
Bolt
Brush
Support
Adapter
Bearing
Flanges
Gearbox
To Next Page
