Page: 4-37
WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS

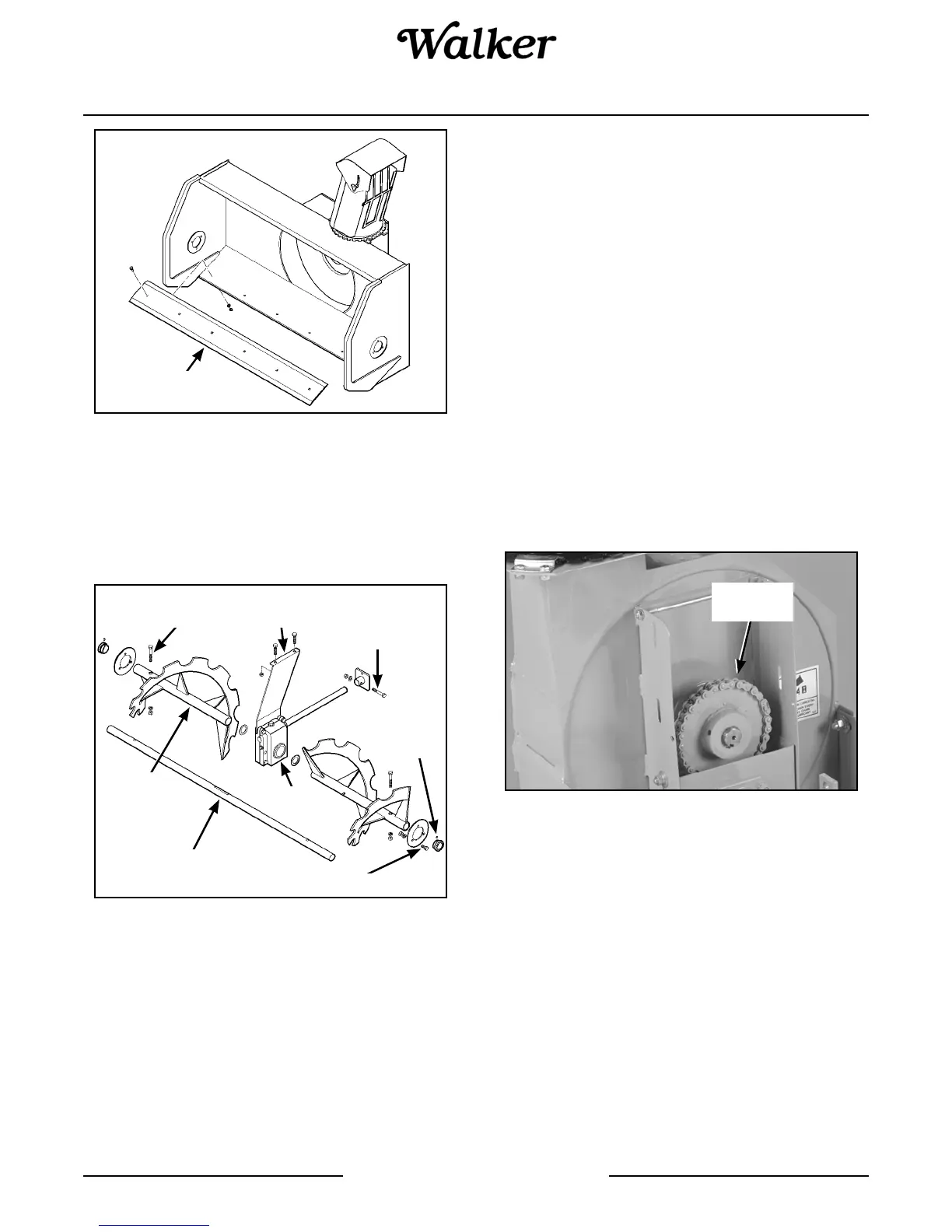

Snowblower Cutting Edge Replacement
Two-Stage Snowblower Gearbox
Remove and replace the gearbox as follows:
1. Stop the tractor engine, set the parking brake, and
remove the ignition key.
Replace Snowblower Gearbox
2. Remove the three (3) 5/16 nuts and the three (3) 5/
16 x 3/4 bolts holding the bearing flanges on each
end of the snowblower. Loosen the (2) two set
screws on each collar bearing.
3. Remove the 5/16 nut and the 5/16 x 2 hex pinion
shaft bolt.
4. Remove the two (2) 5/16-NC nylon locknuts and
the two (2) 5/16-NC x 1-1/4 in. hex bolts fastening
the support bracket and gearbox to the snowblow-
er frame.
5. Hold and move the gearbox/auger assembly to the
left and the right side will slide out. Slide the left
side out.
6. Remove the two (2) 5/16-18 auger shear bolts and
two (2) 5/16 nuts. Remove augers from gearbox/
shaft assembly.
7. Replace the gearbox by reversing the removal pro-
cedures.
Two-Stage Snowblower Reduction Chain
The reduction chain should be replaced if, when adjust-
ed properly, it can be pulled away from the front of the
reduction sprocket more than 1/2 the height of a
tooth on the sprocket. Running the snowblower with
a worn chain increases wear on the sprockets.
1. Remove the 1/4 x 7-1/2 in. bolt, lock washer, and
nut from the reduction box cover.
2. Remove the box cover from the reduction box.
Remove Reduction Box Cover
3. Turn the reduction box drive shaft until the master
link for the chain is accessible.
4. Remove the master link from the chain and remove
the chain from the sprocket.
5. Place the new chain on the sprockets and install
the master link. Install the clip on the master link
properly. The closed end of the clip should point
in the direction of chain travel.
Reversible
Cutting Edge
Shaft
Assembly
Collar
Bearing
Screw
Pinion
Shaft
Bolt
Support
Bracket
Auger Shear
Bolt
Bearing Flange Bolt
Auger
Gearbox
Reduction
Chain
