Page: 4-48
WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
Clutch Disengagement/Brake Action -
Model MC, MT, MTL
The declutched or disengaged position of the blade
clutch idler pulley is adjustable and is set to give belt re-
lease without excessive slack and to apply the blade
brake. The blade brake is activated by the brake actu-
ator rod linkage to the clutch idler pulley mechanism.
The brake is designed to stop the blades within five (5)
seconds after disengaging the clutch.
WARNING
It is important to check and maintain
blade brake action for safe operation of
the machine.

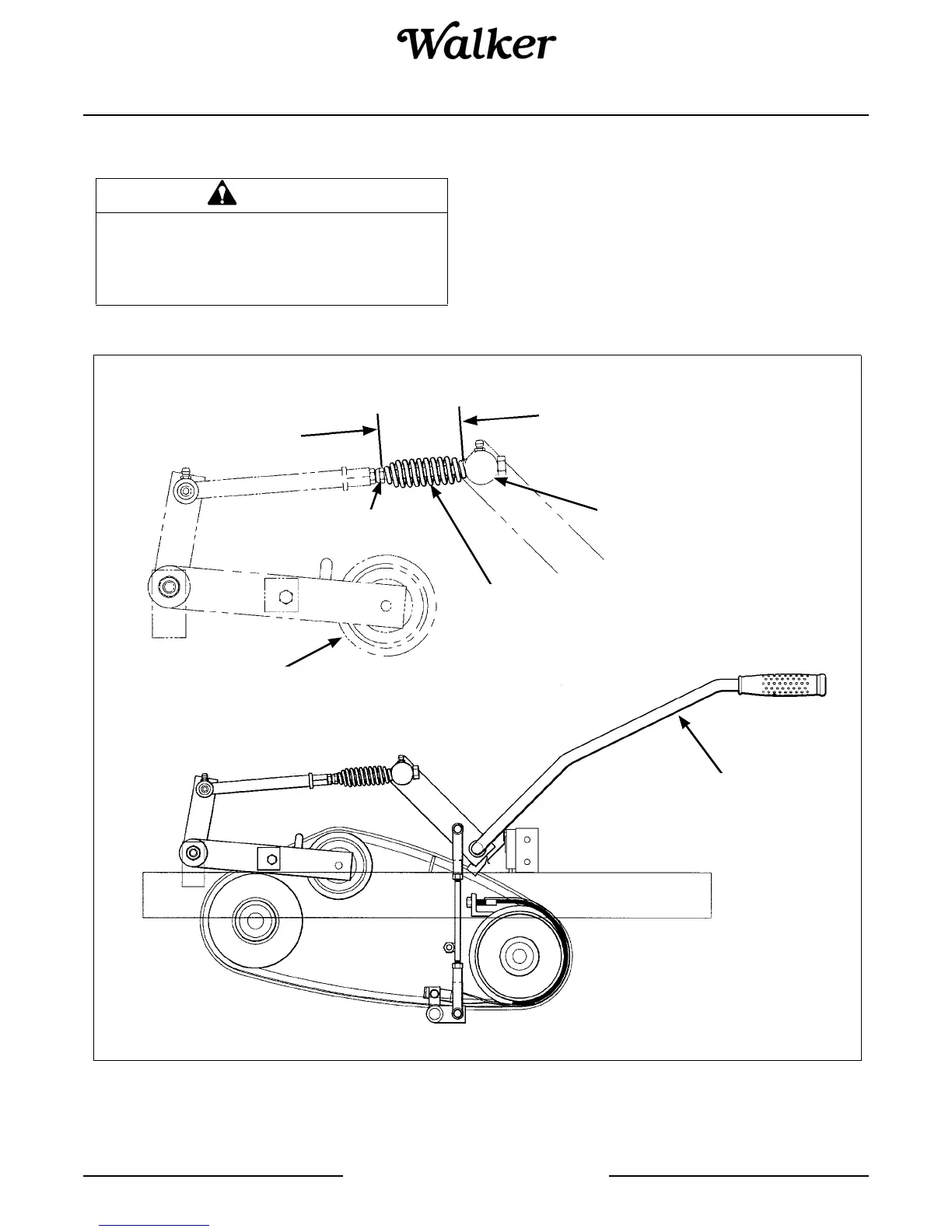

Spring Overall Length
2-1/8 in.
(54 mm)
Adjustment
Nut
Spring
Uncompressed
Blade Clutch
Idler Pulley
Blade Clutch
Lever Disengaged
Knuckle
Joint
PTO Clutch Disengaged - Model MT, MTL
