Walker MT Detailed Instructions

Page: 4-21
WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
Ground Drive Belt - Model MS
1. To remove the ground drive belt:
a. Raise the spring-loaded idler to relax belt.
b. Slide belt off pulleys, then release the idler.

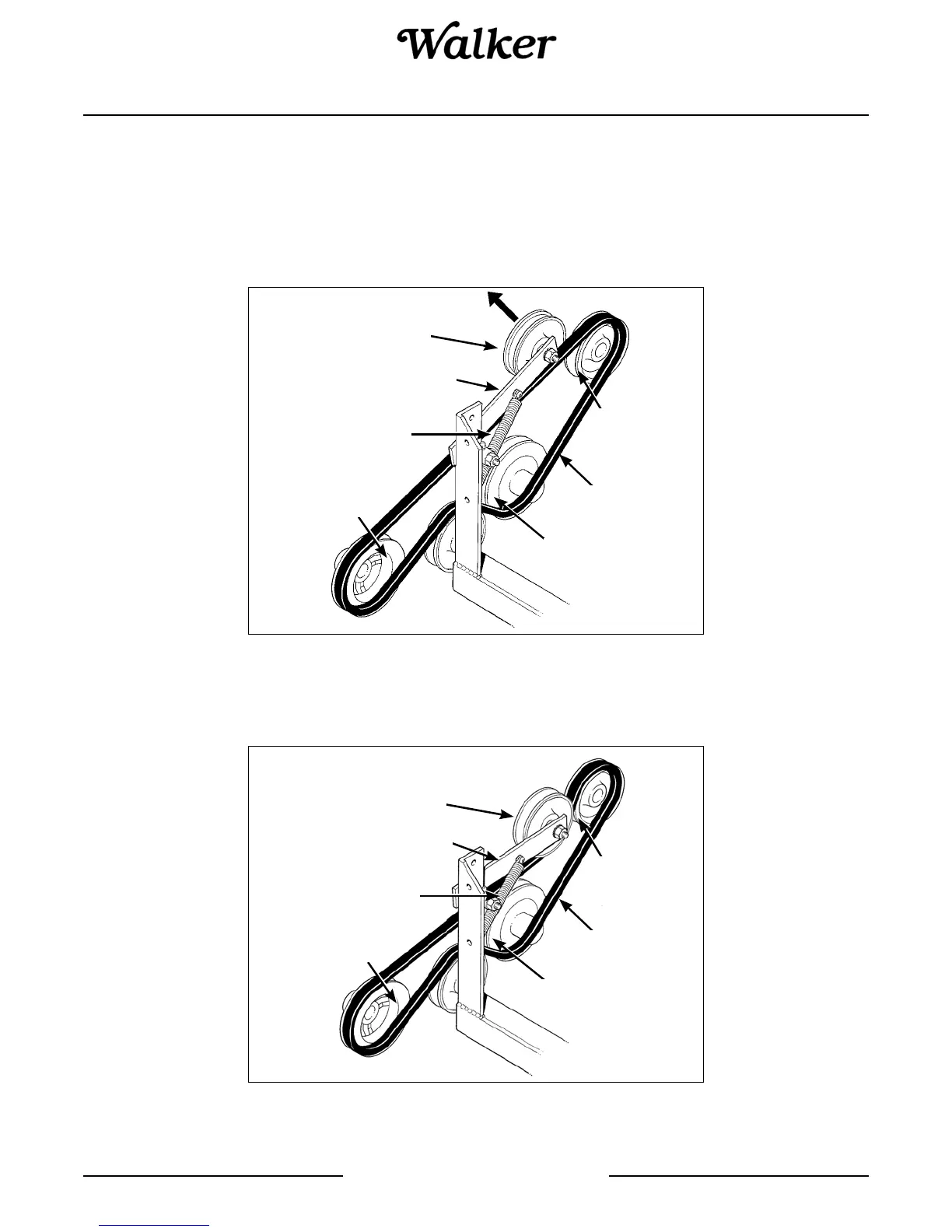

Raise Idler Pulley to Relax Belt
Transmission
Drive Pulley
Ground Drive
Belt
Tension Spring
Idler Pulley
Belt Tightener Arm
Hydrostatic
Drive Pulley
Hydrostatic
Drive Pulley
Transmission
Drive Pulley
Ground Drive
Belt
Tension Spring
Idler Pulley
Belt Tightener Arm
Hydrostatic
Drive Pulley
Hydrostatic
Drive Pulley
Ground Drive Belt Assembly (Engaged)
2. Reverse the procedure to install the ground
drive belt.
Ground Drive Belt Assembly (Disengaged)
