Page: 4-15
WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
Engine/PTO Belt
1. To remove the engine/PTO belt:
a. Loosen and remove idler tension bolt and jam
nut.
b. Relax belt by depressing idler arm.
c. Roll the belt off the pulley and remove the
belt.
Idler Arm
Engine/PTO
Belts
Idler Tension
Bolt
Jam Nut
PTO
Pulley
Idler Arm
Engine/PTO
Belts
PTO
Pulley
1/2" (1.27 cm)
deflection

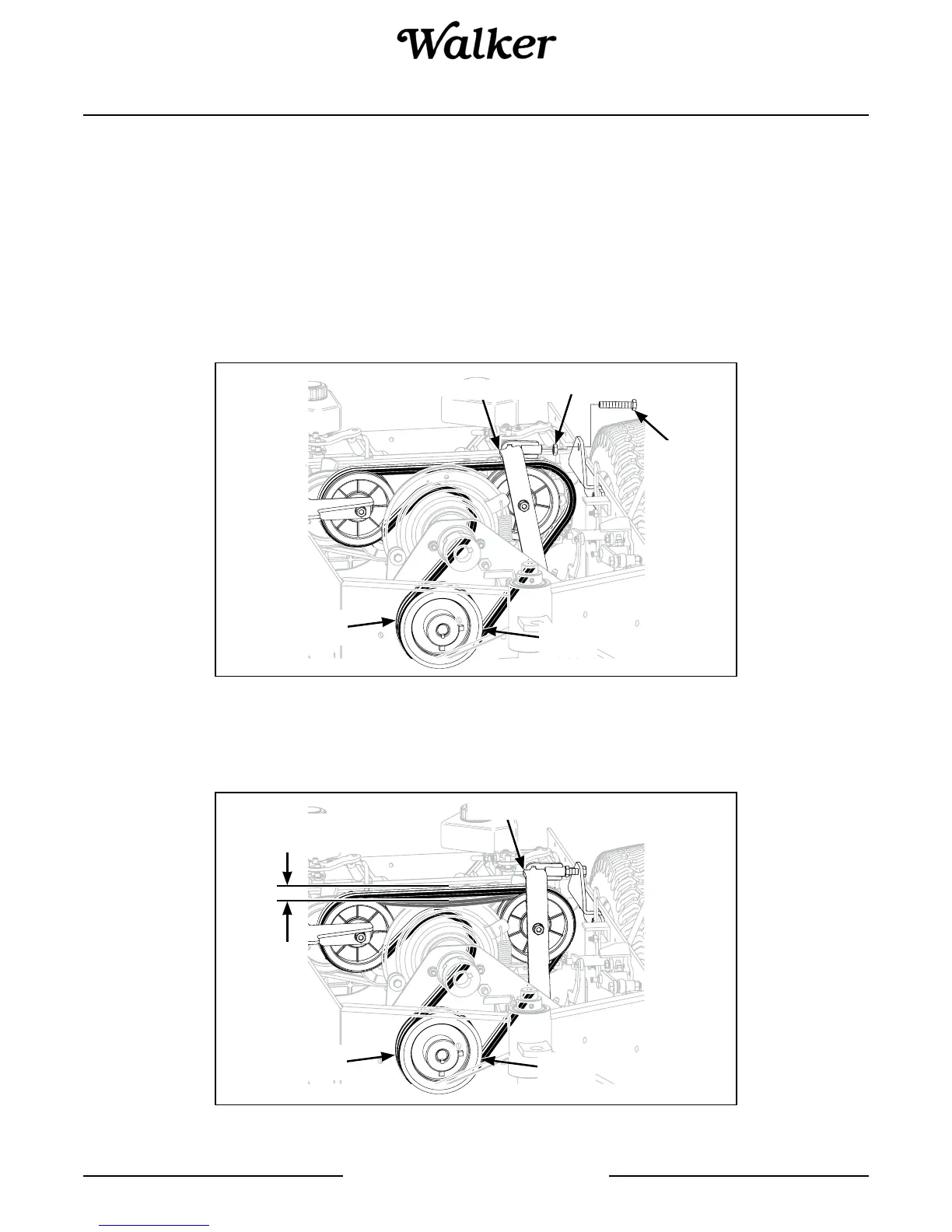

Engine/PTO Belt (Disengaged)
(Engine Hidden for Clarity)
Engine/PTO Belt (Engaged)
(Engine Hidden for Clarity)
2. Reverse the removal procedure to replace the
engine belt.
