Page: 1-19
WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
6. Complete the wiring by connecting the wiring har-
ness ends to the toggle switch and to the actuator
motor of the implement hitch.

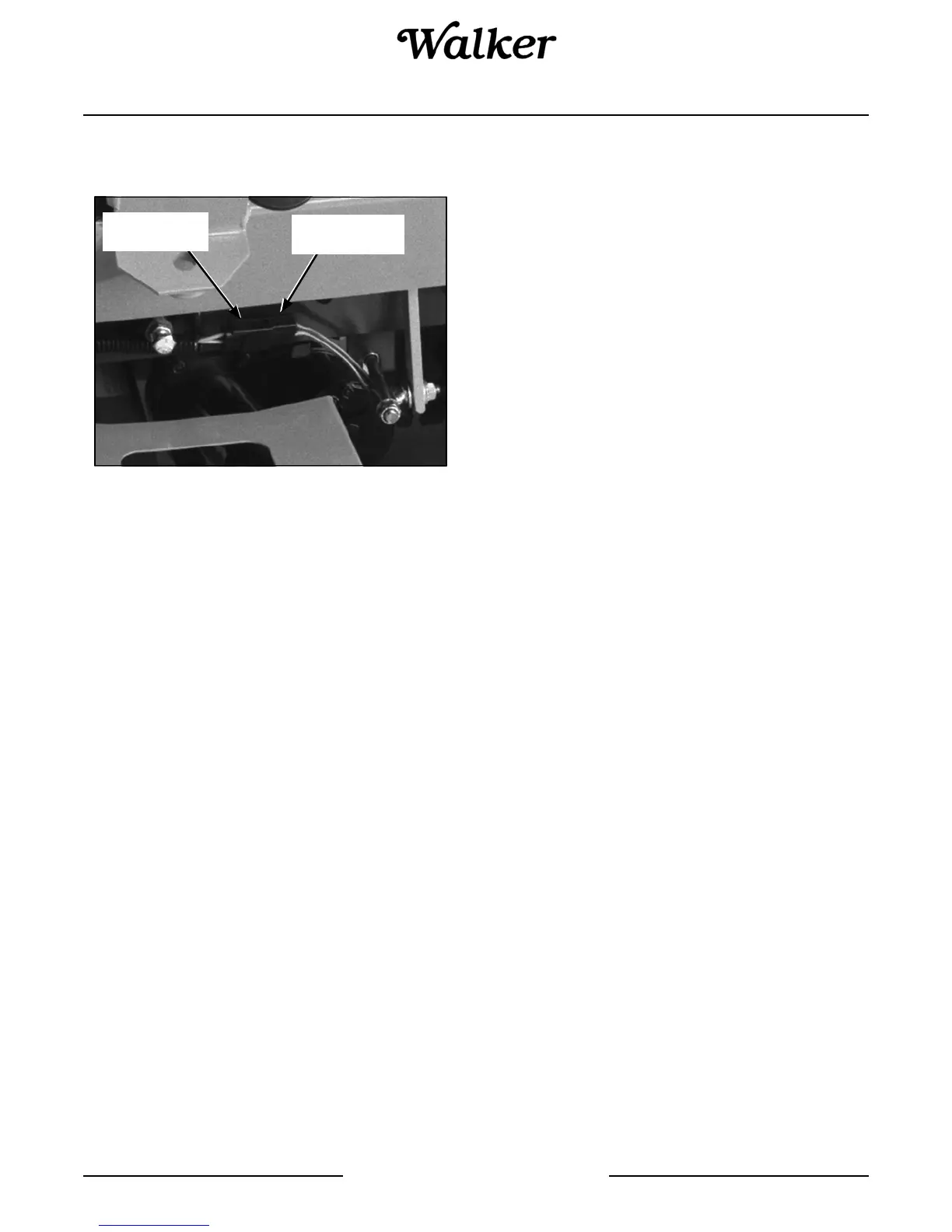

Complete Implement Hitch Wiring
7. Move the implement lift switch backward to raise
the implement hitch to the UP position.
8. Move the implement lift switch forward to lower the
implement hitch to the DOWN position.
9. Raise and lower the hitch a few times to check the
operation and make sure it moves smoothly. If not,
make sure the wiring harness ends are connected
properly and securely. Refer to Implement Hitch
Wiring Diagram illustration.
Wire Harness
Connector
Actuator Motor
Connector
To Next Page
