Page: 1-34
WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS

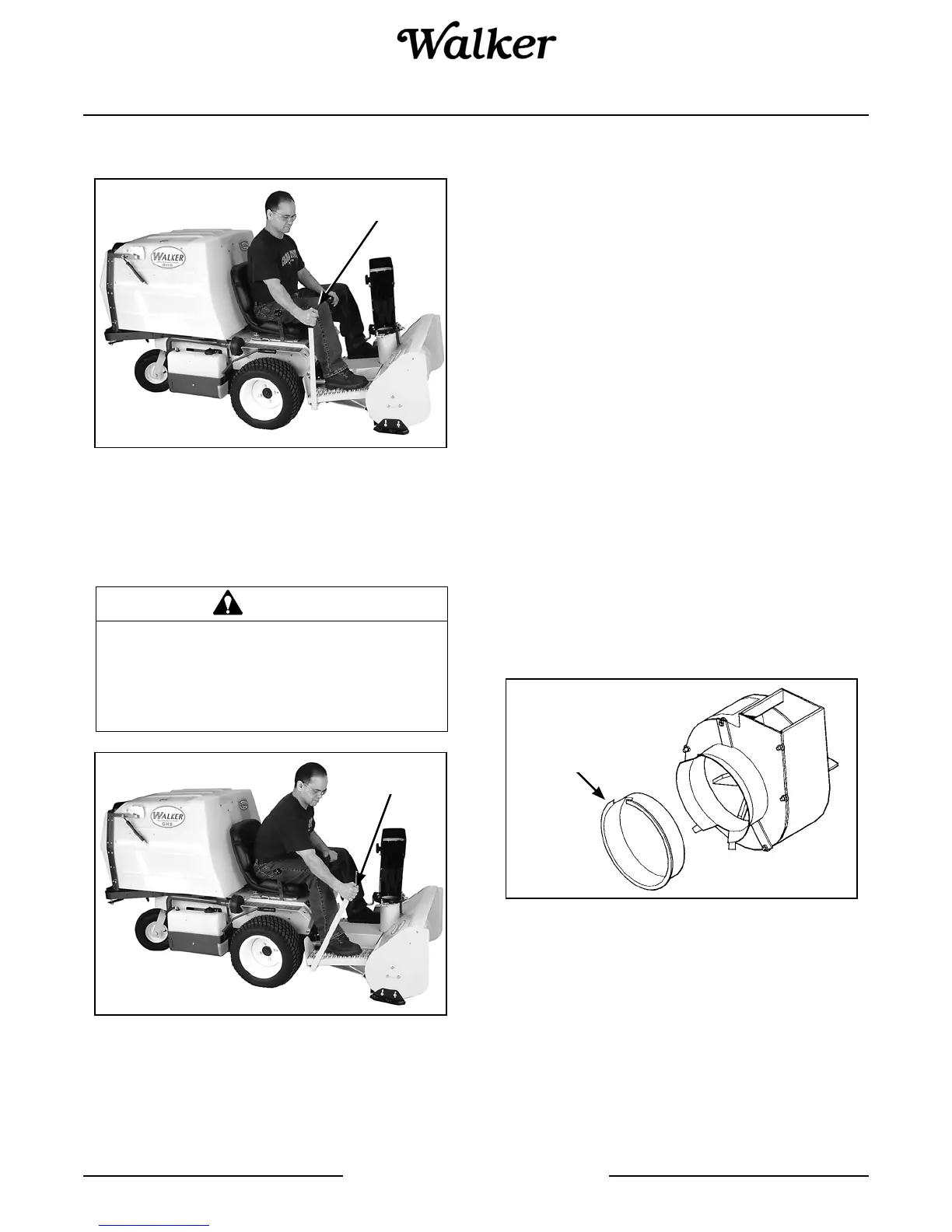

11. Pull the lift handle back to raise the snowblower to
the UP position.
Snowblower in UP (Raised) Position
12. Pull the lift handle back, press the foot trigger, and
hold on to the lift handle while letting it move
forward to lower the snowblower to the DOWN po-
sition.
Snowblower in DOWN (Lowered) Position
13. Raise and lower the snowblower a few times to
check the operation and make sure it moves
smoothly. If not, grease the lift handle pivot grease
fittings located on the three tubes that support the
lift handle pivot.
14. Adjust the gauge wheels or skid shoes. Refer to
ADJUSTMENTS of Gauge Wheels or Skid
Shoes in Service Procedures Section.
15. To install the optional tire chains:
a. Remove the tractor wheels.
b. Attach the tire chains to the wheels.
c. Place the wheel spacer plates on the lug
bolts. The wheel spacer plates provide clear-
ance for the chains between the tires and the
tractor body.
d. Place the wheels back on the tractor.
e. Reinstall and tighten the lug bolts.
16. For GHS (Grass Handling System) equipped
Walker tractors, install a blower intake cover in the
blower intake tube. The cover “unloads” the blower
and seals the intake to effectively eliminate power
loss and noise when the blower is not being used.
GHS Blower Intake Cover
17. For stability of the tractor when transporting with
the snowblower raised position, approximately
80 lb (36 kg) of counterweight should be installed
on the tail of the tractor. Optional tail weights for
the various tractor models are available from your
Walker dealer or a sandbag or similar weight may
be used.
CAUTION
DO NOT release the lift handle before
releasing the foot trigger or before the
snowblower has reached the DOWN posi-
tion.
Pull Back
Lift Handle
Move Lift
Handle Forward
Blower
Intake Cover
