SPECIAL FUNCTIONS
12.2.4 Operating Sequency
The Figure 12.6 on page 12-6 describes all the operating sequence of the signals involved in the synchronous transfer process.

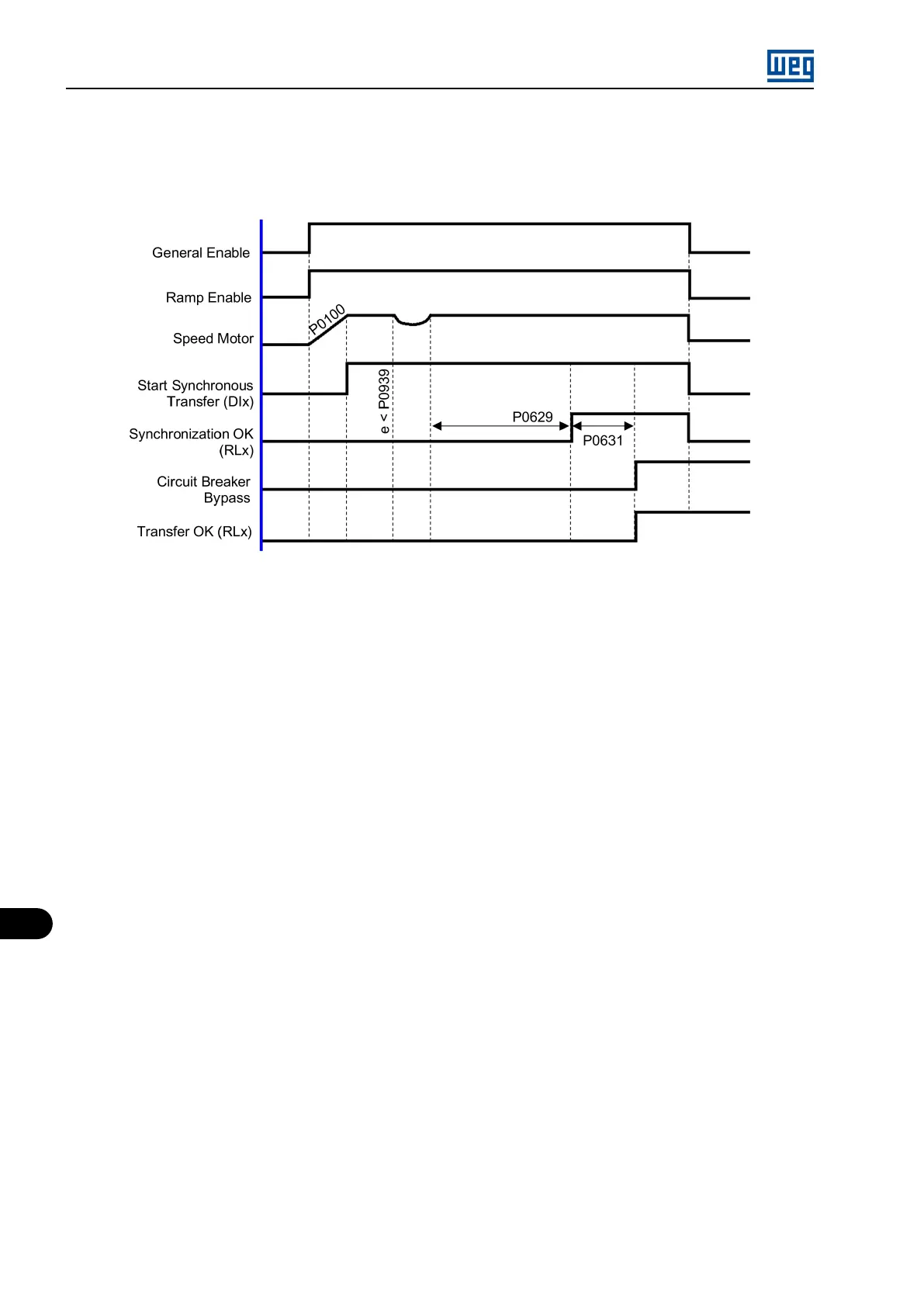

Figure 12.6: General operation scheme of the synchronous bypass function
