10
INSTALLATION, CONNECTION AND ENERGIZATION

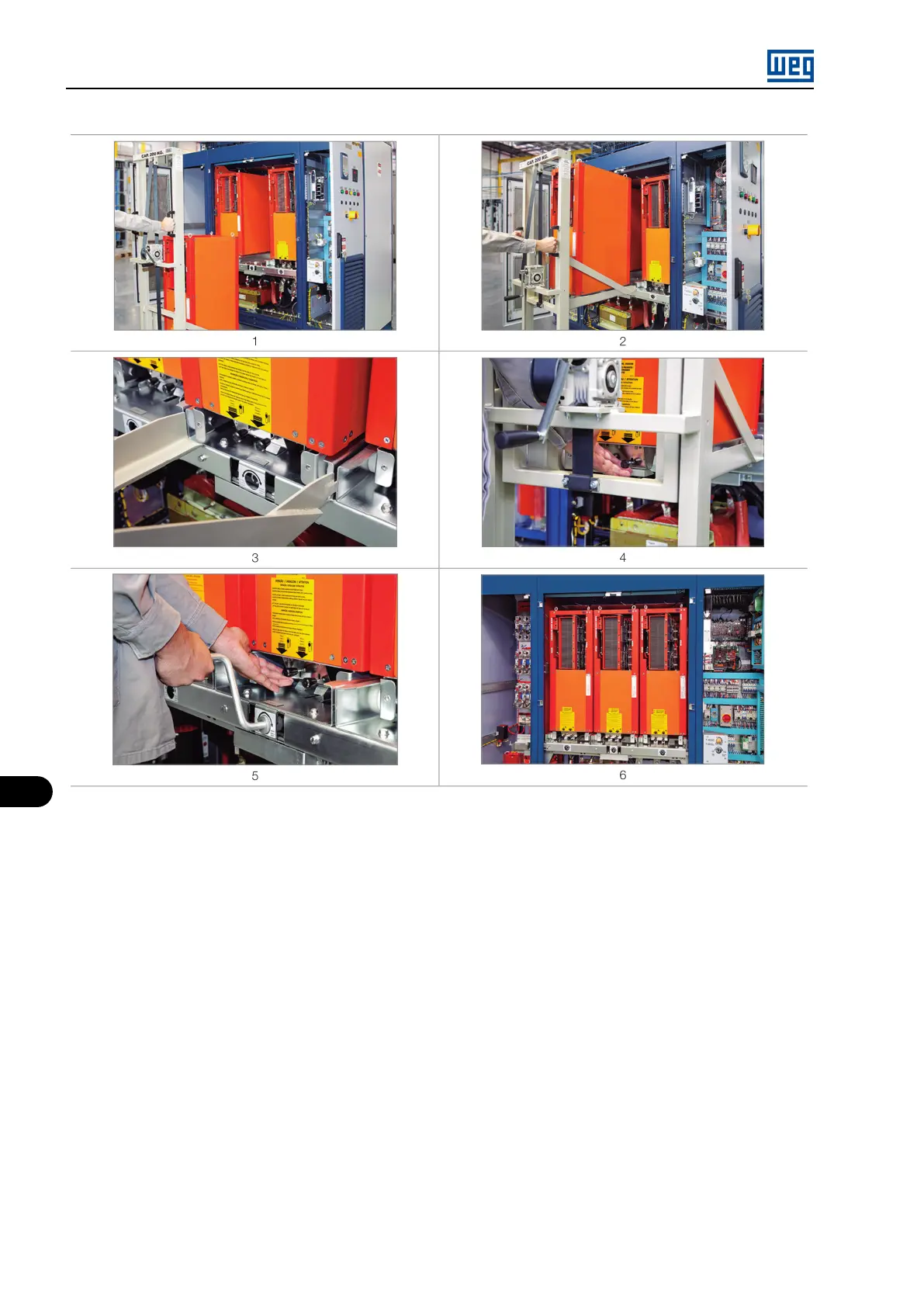

Figure 10.7: Details of the arm insertion stages
10.1.8 Power Arm Electric and Fiber Optic Connections
After inserting the power arms (U, V and W phases) connect the fiber optic cables and the supply cables according to the labels presented on
the arms and on the cables.
The identifications of the cables are presented in the Table 10.2 on page 10-9 and Table 10.3 on page 10-9 .
MVW01 | 10-8
