10
INSTALLATION, CONNECTION AND ENERGIZATION
Coupled in
multiple points
Minimum 45°

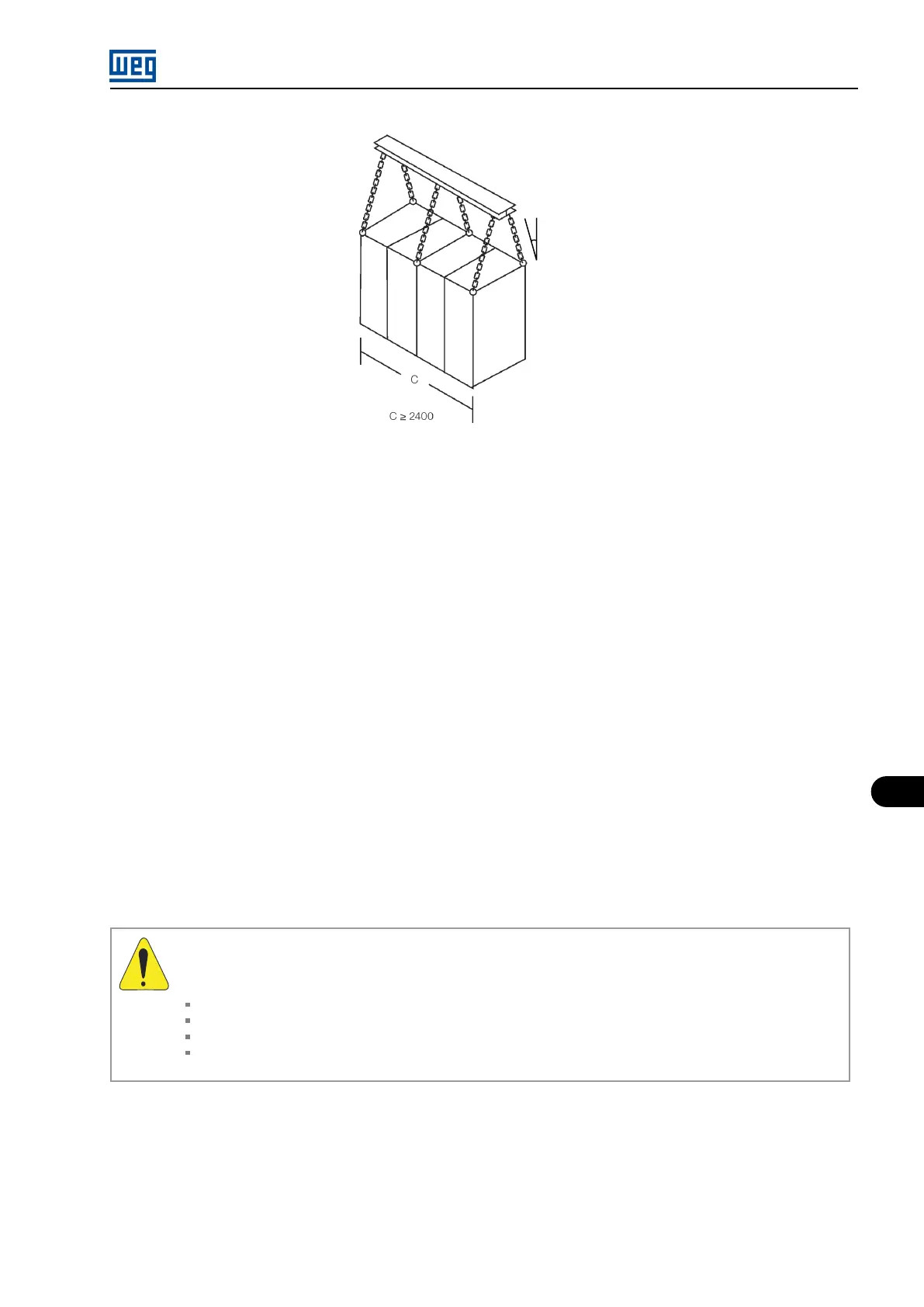

Figure 10.1: Recommended hoisting mechanism for the panel movement
10.1.4 Moving
When cranes or pulleys are used, make sure that the movements are slow and smooth, so that the panel and the arms do not suffer excessive
swings and vibration.
When using movable hydraulic jacks, forklifts, rollers or other means, distribute the support points from one extreme through the other, avoiding
pressure on fragile areas.
Make sure that all the panel doors be closed and locked, and that the door handles be in protected position.
10.1.5 Unpacking
Use proper tools to unpack the MVW01 panel and its arms. During this process, make sure that all the items listed in the documentation that
comes with the product are present and in perfect conditions. Contact your local WEG representative in case of any irregularity.
Remove the arm packages carefully. The arms have hoisting eyes.
The inverter arms have fragile components (electronic boards, fiber optic connectors, busbars, wiring, etc.). Avoid touching these components!
The arms must always be handled through their external metallic frame. While opening the package, inspect the arms for transportation damage.
Do not install the arms if they are damaged or if you suspect of any damage.
Remove all packing material (plastic, wood, polystyrene foam, metal, nails, bolts, nuts, etc.) that might have remained inside the inverter panel
or in the arms.
WARNING!
If any component presents problems (damages) it is recommended to:
Stop the unpacking immediately.
Contact the carrier and formally fill in a complaint with the problem found.
Take pictures of the damaged parts.
Contact your WEG representative or service.
MVW01 | 10-3
