MVW01C (COMPACT)
The internal component distribution is presented in the Figure 5.8 on page 5-7 .
Inverter compartment
Input bars
Rectifier compartment
Output bars
Compartment control
Rear-view of
the BT door
BIR BIS BIT
U V W

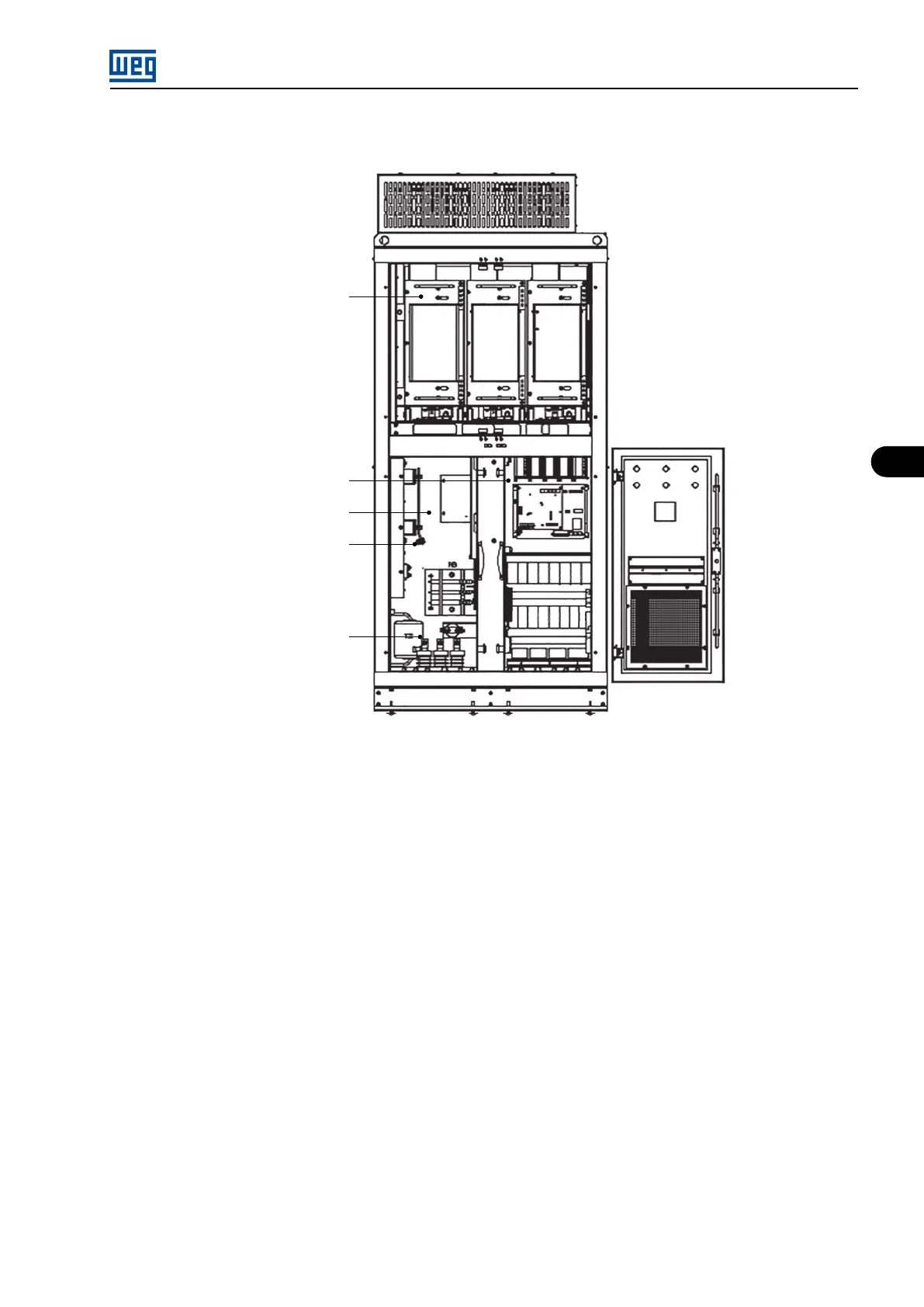

Figure 5.8: MVW-01C internal component arrangement
5.2 AVAILABLE MODELS
Ver Item 2.3.1 Available Models on page 2-5 .
