INSTALLATION, CONNECTION AND ENERGIZATION
Connection Procedure
3

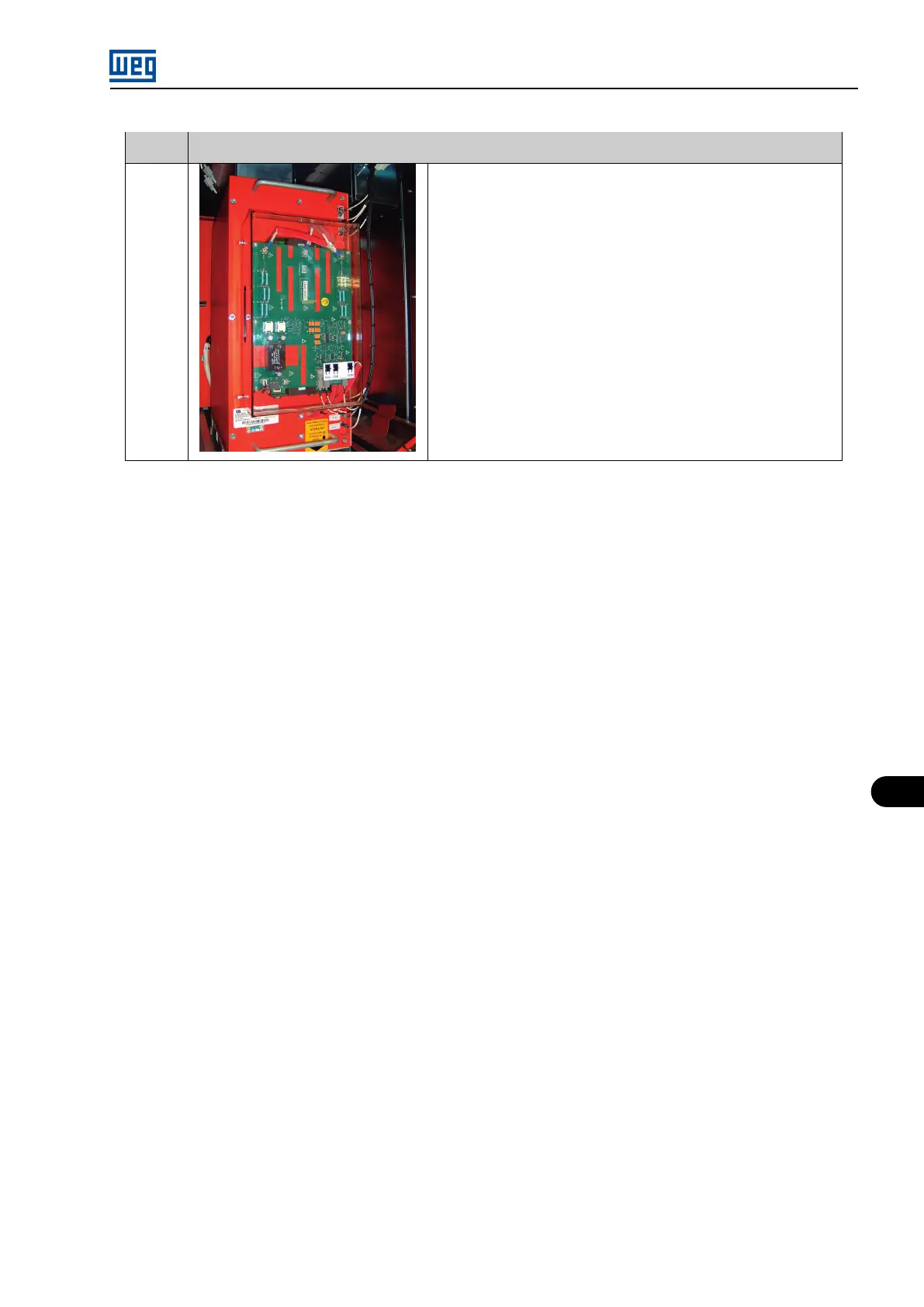

4. Reinstall the protective acrylic cover.
5. The installation of the power supply cable and fiber optic cables is com-
plete.
10.2 ELECTRICAL INSTALLATION
10.2.1 Power Section
The power cables that connect the supply line to the main circuit breaker and the circuit breaker to the input transformer primary must be
sized for the specified voltage and current. Refer to the cubicle (main circuit breaker) and transformer documentation, strictly following all the
recommendations.
The power cables that connect the input, transformer secondary windings to the MVW01 rectifier column and those that connect the inverter
column to the medium voltage motor (Figure 10.10 on page 10-15 ) must be specified for medium voltage application and sized for the nominal
currents.
MVW01 | 10-13
