8
INVERTER PARALLELISM

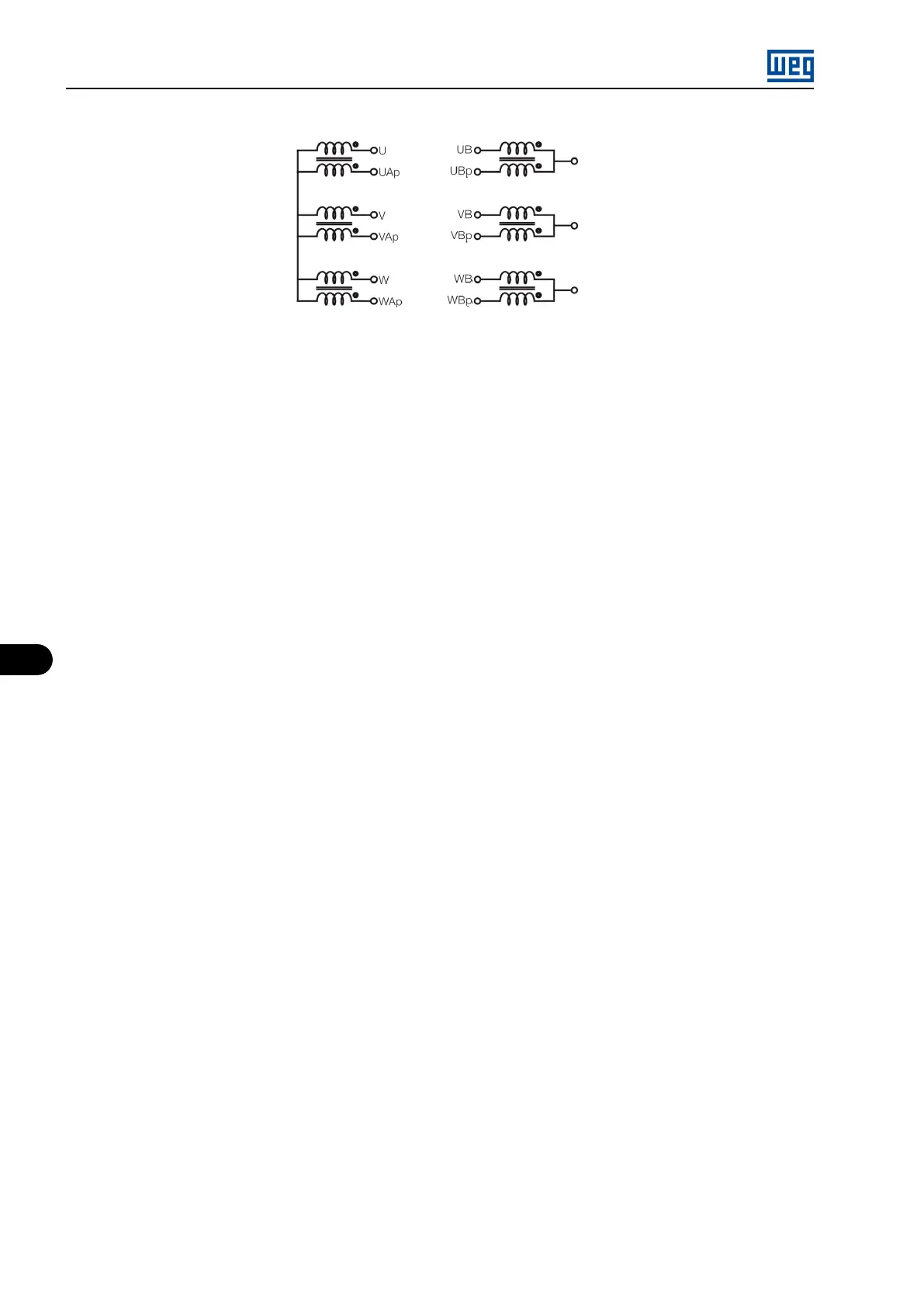

Figure 8.7: Parallelism reactors connectionof the 6.9 kV line
The other mechanical and power options of the 6.9 kV line can be found in the product catalog.
The parameters and faults correspondent to the power structure of this line are described in the programming manual available for download
on www.weg.net.
MVW01 | 8-6
