Special tool:
n
Metal saw
n
Folding ruler
Prerequisites:
n Cylinder has been inserted in the system.
–
n At least one key has been inserted with locking authori-
sation on the cylinder.
–
1.
Cylinders are supplied with a standard
face plate screw (85 mm long).
Measure backset (1).
2. Add 1 cm to backset (1).
3.
NOTICE!
Damage caused by damaged thread on
the face plate screw.
Trim supplied face plate screw to the calculated length
if necessary without damaging the face plate screw
thread.
The cylinder cam can be adjusted to eight
dierent positions.
You can place the cam in the required posi-
tion to prepare for cylinder installation.
Measure face plate screw dimen-
sion

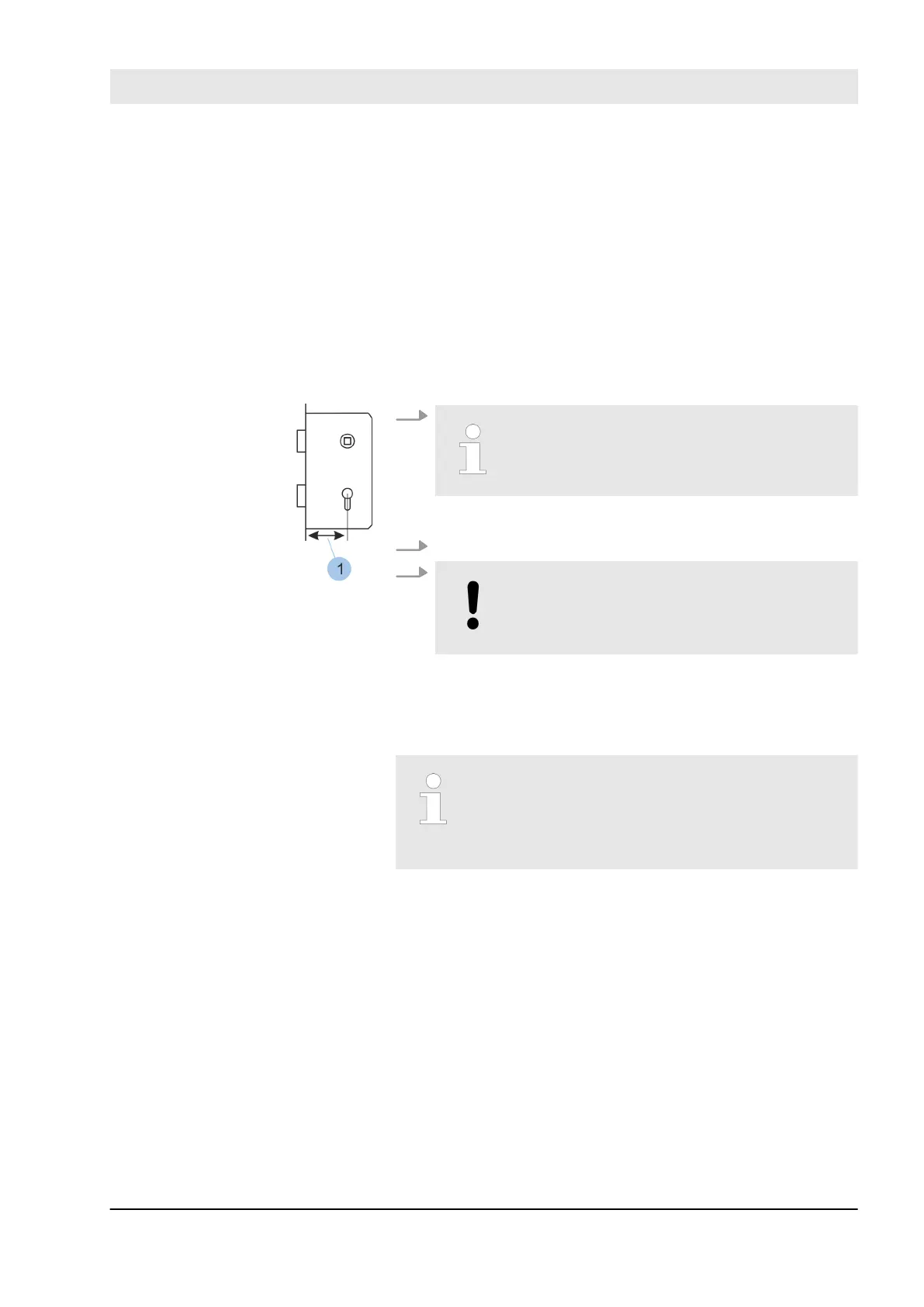

Fig. 33: Measure backset
Select and install cylinder
23.03.2020 blueCompact electronic locking system 55
