Special tool:
n
Release pin, such as an opened paper
clip
1. Push in the pressure bolt (1) with a release pin (2).
2. Turn cam.
ð
The pressure bolt automatically engages.
3.
NOTICE!
Reduced protection against burglary
due to incorrectly aligned cam.
Repeat steps 1 and 2 until the cam is in the required
position. The cam must face the door hinge side after
the fitted cylinder has been locked.
Adjust cam

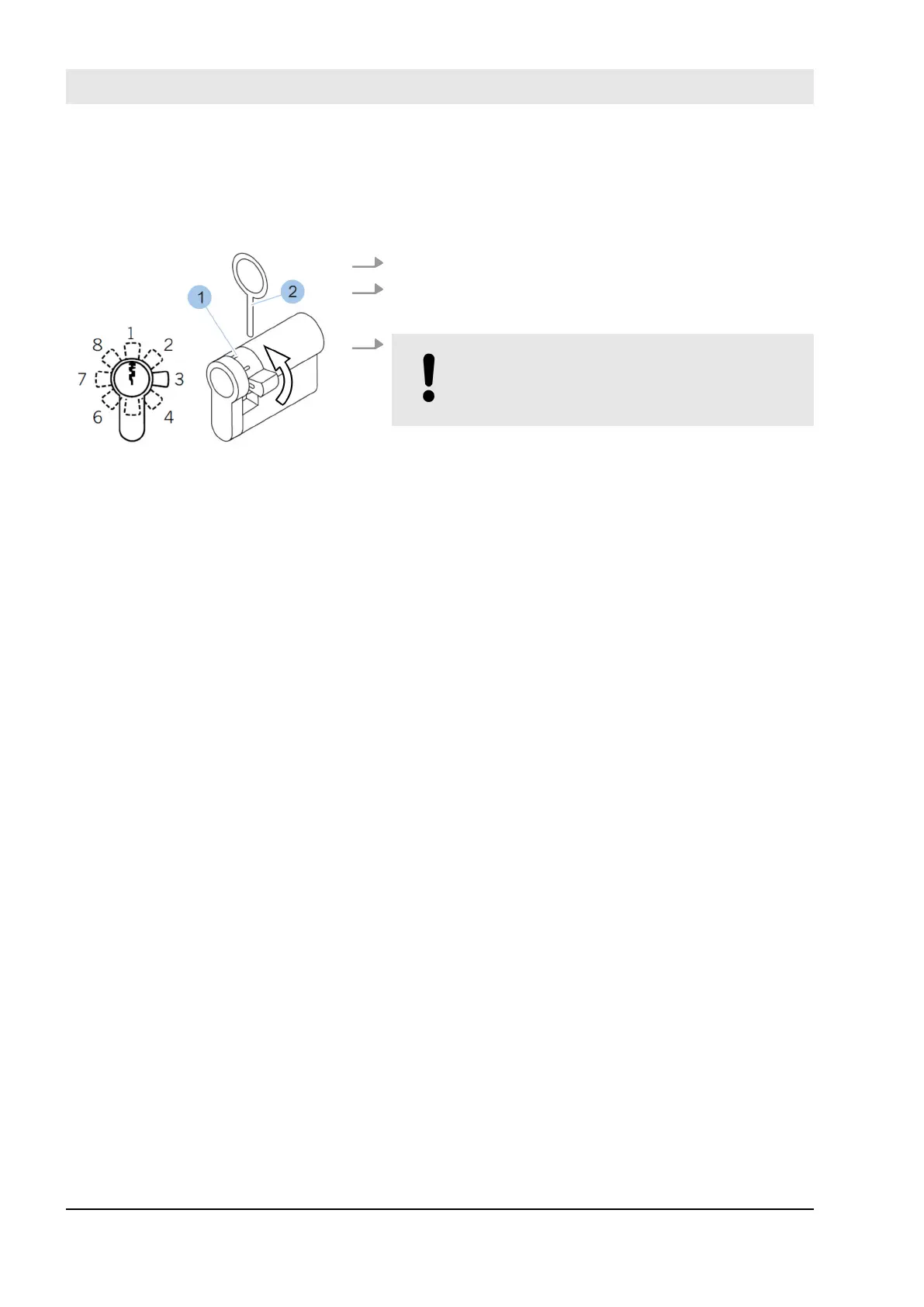

Fig. 34: Adjust cam
Select and install cylinder
