10.
NOTICE!
Damage to the contacts caused by
switching inductive loads!
Install the suppressor diode (freewheeling diode) sup-
plied to protect the contacts parallel to the load.
11.
NOTICE!
Destruction of the reader due to
increased voltage!
Use a regulated powerpack supply with an output
voltage of 12 V.
12.
WARNING!
Personal injury due to electrical voltage!
Check for deenergised state.

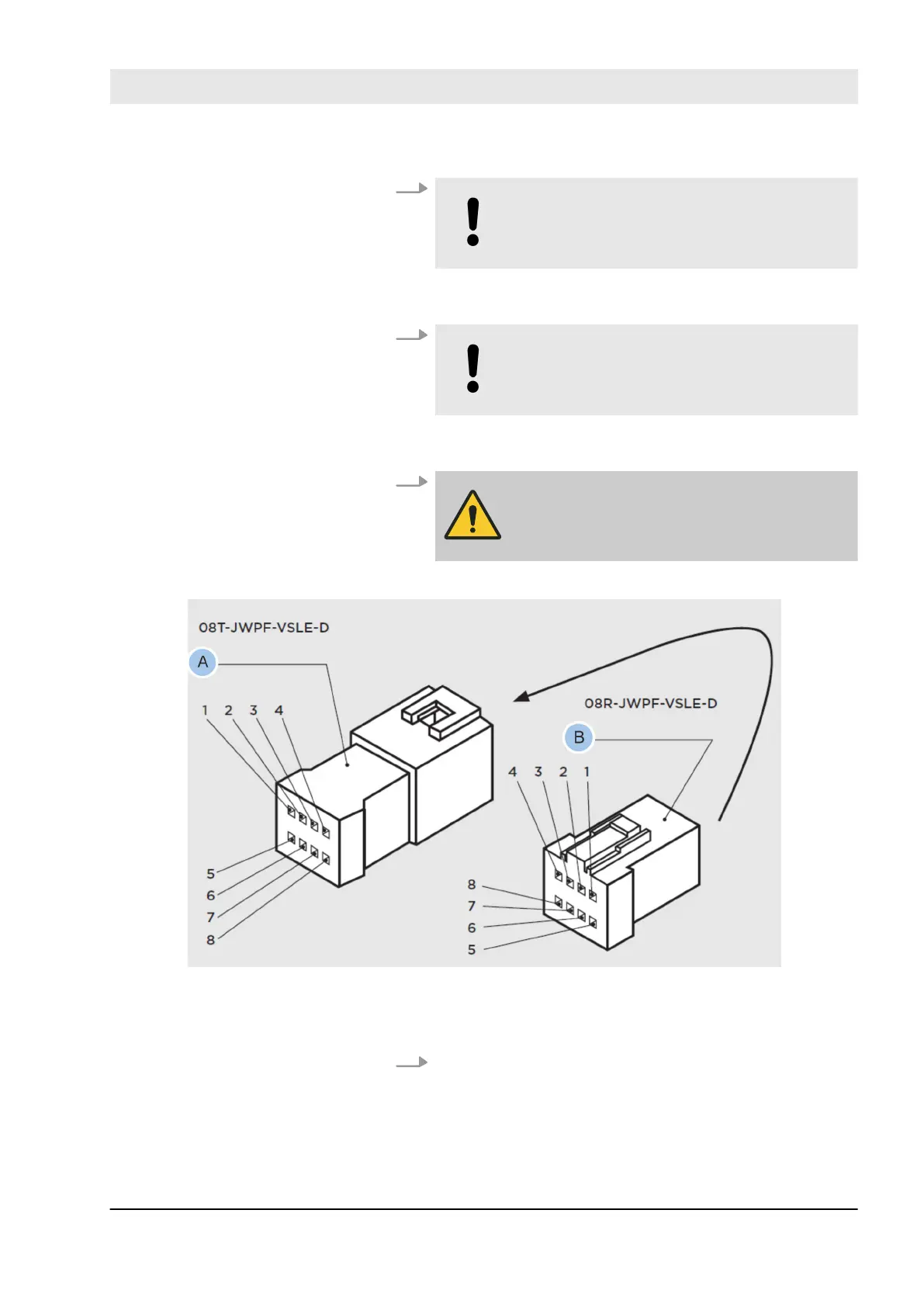

Fig. 47: Pin assignment on the connector
A Socket of the reader
B Connector on door or wall
13. Connect the reader cable with the connector on the
door or wall.
