1125100 WPC 1000 User Manual
2-14 Installation
Making Wiring Connections
To wire a pre-wired Operator Station, perform the following steps:
1. Punch a hole in the Operator Station enclosure for conduit or sealtight.
2. Connect the conduit or sealtight to the hole; then open the Operator Station box.
3. Run the Operator Station cable in the sealtight.
4. Plug the connector end of the cable into the Operator Station.

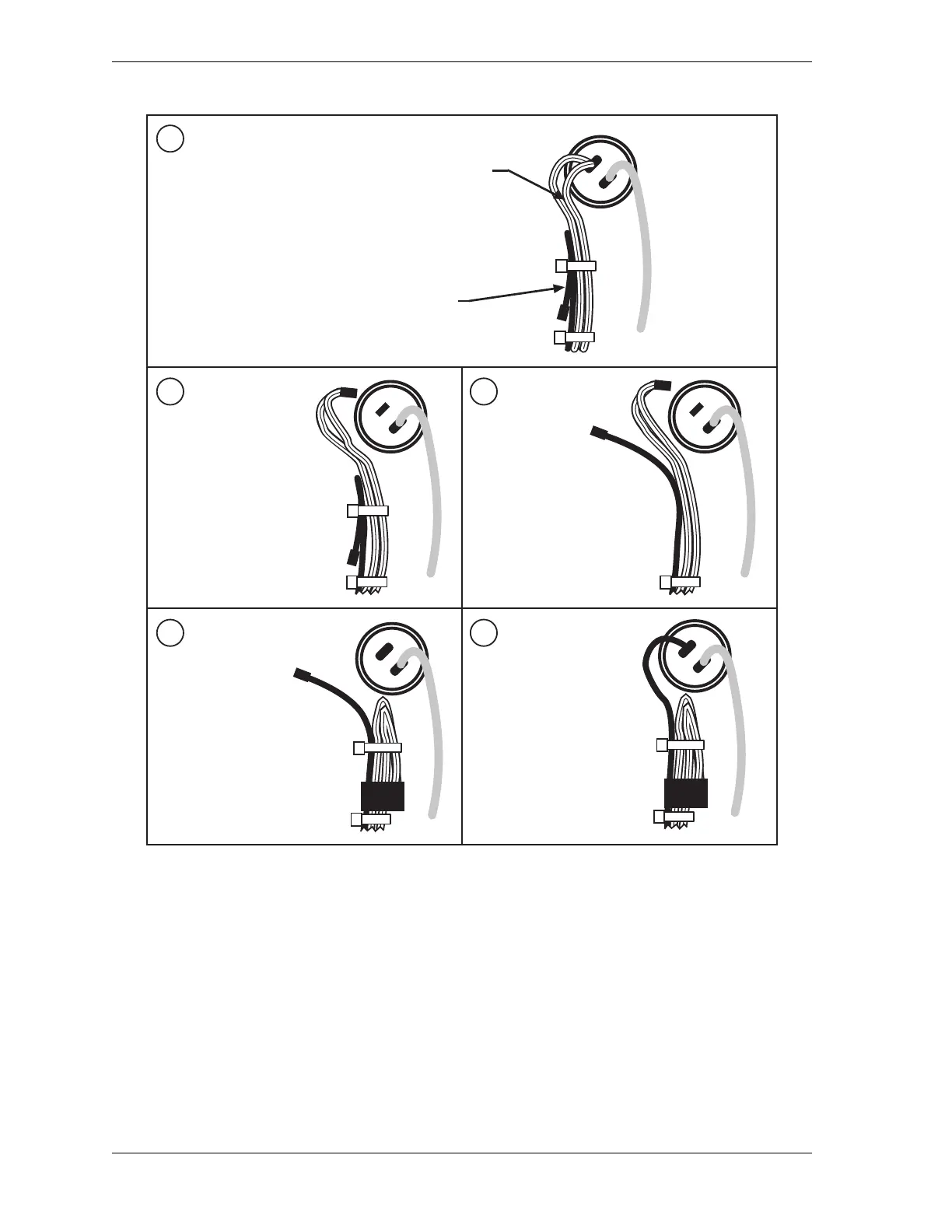

Figure 2-7. Wiring Steps to Modify Operator Station for WPC 1000
B
Free the black wire.
Disconnect the pair of
white-and-red wires.
C
Connect the black wire
where you just
disconnected the pair
of white-and-red wires.
Bend the white-and-red
wires back on themselves.
Ty-wrap them in place.
Insulate connector lug
with electrical tape.
D
E
Black wire with
connector lug,
not connected
to anything
Pair of white-and-red
wires connected to
one terminal
of the mute lamp
Examine the mute
lamp wiring as it
came from the factory.
NOTE:
Orientation of connections
may be different.
A
